CONTROL UNIT (ENGINE ROOM)
View large diagramHide diagramView diagramView printable catalogTranslate

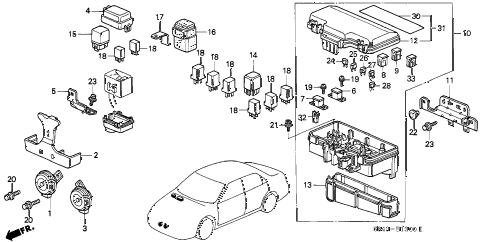

2001 accord VP(SIDE SRS) 4 DOOR 4AT CONTROL UNIT (ENGINE ROOM) diagram

  • 001

    horn assy (low)

    Part Number: 38100-S84-A52

    ''


    KA - US - 49 State Spec

    • $40.60

  • 003

    horn assy (high)

    Part Number: 38150-S84-A52

    ''


    KA - US - 49 State Spec

    • $40.60

  • 006

    fuse, block (50a)

    Part Number: 38213-SM4-003

    ''


    KA - US - 49 State Spec

    • $7.50

  • 007

    fuse, block (100a)

    Part Number: 38218-SM4-003

    ''


    KA - US - 49 State Spec

    • $7.50

  • 009

    fuse, block (40a)

    Part Number: 38231-S04-961

    ''


    KA - US - 49 State Spec

    • $2.98

  • 010

    box assy., relay

    Part Number: 38250-S84-A02

    ''


    KA - US - 49 State Spec

    • $216.40

  • 011

    bracket, relay box

    Part Number: 38251-S84-A00

    ''


    KA - US - 49 State Spec

    • $4.76

  • 012

    cover (upper)

    Part Number: 38251-S84-A02

    ''


    KA - US - 49 State Spec

    • $22.35

  • 013

    cover (lower)

    Part Number: 38252-S84-A01

    ''


    KA - US - 49 State Spec

    • $14.27

  • 014

    relay assy., power (4p no 305)(056700-9260) (denso)

    Part Number: 39792-SL4-003

    ''


    KA - US - 49 State Spec

    • $39.82

  • 016

    relay assy., power (5p) (mitsuba)

    Part Number: 39793-SV4-003

    ''


    KA - US - 49 State Spec

    • $35.33

  • 017

    bracket, wiper relay

    Part Number: 39793-S84-A00

    ''


    KA - US - 49 State Spec

    • $87.02

  • 018

    relay assy., power (4p) (micro iso) (matsushita)

    Part Number: 39794-S04-004

    ''


    KA - US - 49 State Spec

    • $25.10

  • 018

    relay assy., power (4p) (micro iso) (matsushita)

    Part Number: 39794-S04-014

    ''


    KA - US - 49 State Spec

    • $25.10

  • 018

    relay assy., power (4p) (micro iso) (omron)

    Part Number: 39794-S0K-A01

    ''


    KA - US - 49 State Spec

    • $7.45

  • 019

    screw-washer (5x14)

    Part Number: 90129-S84-000

    ''


    KA - US - 49 State Spec

    • $2.92

  • 020

    bolt, ground (8x16)

    Part Number: 90150-S84-003

    ''


    KA - US - 49 State Spec

    • $0.93

  • 021

    bolt-washer (6x16)

    Part Number: 90182-SB6-000

    ''


    KA - US - 49 State Spec

    • $1.15

  • 022

    clip, bracket

    Part Number: 91551-SV4-003

    ''


    KA - US - 49 State Spec

    • $1.33

  • 023

    bolt-washer (6x16)

    Part Number: 93405-06016-08

    ''


    KA - US - 49 State Spec

    • $1.05

  • 024

    fuse, mini (7.5a)

    Part Number: 98200-40750

    ''


    KA - US - 49 State Spec

    • $0.82

  • 025

    fuse, mini (10a)

    Part Number: 98200-41000

    ''


    KA - US - 49 State Spec

    • $0.82

  • 026

    fuse, mini (15a)

    Part Number: 98200-41500

    ''


    KA - US - 49 State Spec

    • $0.82

  • 027

    fuse, mini (20a)

    Part Number: 98200-42000

    ''


    KA - US - 49 State Spec

    • $0.82

  • 028

    fuse, mini (30a)

    Part Number: 98200-43000

    ''


    KA - US - 49 State Spec

    • $0.82

  • 032

    puller, mini fuse (sumitomo)

    Part Number: 38235-S04-003

    ''


    KA - US - 49 State Spec

    • $0.70
