HEATER BLOWER
View large diagramHide diagramView diagramView printable catalogTranslate

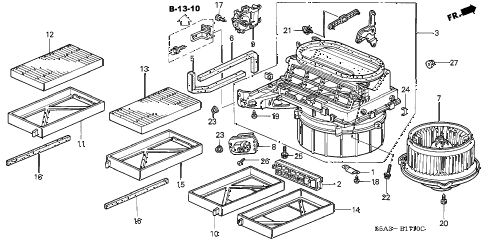

2001 civic DX(A/C) 4 DOOR 5MT HEATER BLOWER diagram

  • 001

    bracket, cover (lower)

    Part Number: 79102-S5A-000

    ''


    KA - US - 49 State Spec

    • $4.18

  • 002

    lid, blower

    Part Number: 79303-S5A-003

    ''


    KA - US - 49 State Spec

    • $9.30

  • 003

    blower sub-assy.

    Part Number: 79305-S5D-A01

    ''


    KA - US - 49 State Spec

    • $335.27

  • 005

    seal, blower (outer) (b)

    Part Number: 79308-S5A-003

    ''


    KA - US - 49 State Spec

    • $2.12

  • 006

    seal, blower (outer) (a)

    Part Number: 79309-S5A-003

    ''


    KA - US - 49 State Spec

    • $2.12

  • 007

    motor assy., fan

    Part Number: 79310-SCV-A01

    ''


    KA - US - 49 State Spec

    • $109.58

  • 008

    transistor, power

    Part Number: 79330-S5A-942

    ''


    KA - US - 49 State Spec

    • $90.33

  • 009

    motor assy., fresh/recirculating

    Part Number: 79350-S5D-A01

    ''


    KA - US - 49 State Spec

    • $106.67

  • 011

    frame, filter (a)

    Part Number: 80291-S5A-003

    ''


    KA - US - 49 State Spec

    • $7.13

  • 015

    frame, filter (b)

    Part Number: 80296-S5A-003

    ''


    KA - US - 49 State Spec

    • $7.13

  • 016

    seal, blower plate

    Part Number: 80297-S5A-003

    ''


    KA - US - 49 State Spec

    • $3.83

  • 017

    screw, tapping (5x12)

    Part Number: 90121-SR3-003

    ''


    KA - US - 49 State Spec

    • $2.33

  • 018

    screw, tapping (4x12)

    Part Number: 90121-S5A-003

    ''


    KA - US - 49 State Spec

    • $3.38

  • 019

    screw, tapping (4x16)

    Part Number: 90127-SX0-003

    ''


    KA - US - 49 State Spec

    • $2.15

  • 020

    screw, tapping (5x16)

    Part Number: 90132-SR3-003

    ''


    KA - US - 49 State Spec

    • $2.33

  • 021

    screw-washer (4x16)

    Part Number: 90133-SR3-003

    ''


    KA - US - 49 State Spec

    • $2.33

  • 022

    bolt-washer (6x24)

    Part Number: 90156-SH3-000

    ''


    KA - US - 49 State Spec

    • $1.47

  • 023

    nut-washer (6mm) (paint cutting)

    Part Number: 90321-SV4-003

    ''


    KA - US - 49 State Spec

    • $3.68

  • 024

    clamp, case

    Part Number: 90659-692-000

    ''


    KA - US - 49 State Spec

    • $6.38

  • 025

    bolt-washer (6x20)

    Part Number: 93405-06020-08

    ''


    KA - US - 49 State Spec

    • $1.33

  • 026

    screw, tapping (4x14) (po)

    Part Number: 93915-24320

    ''


    KA - US - 49 State Spec

    • $1.47

  • 027

    nut-washer (8mm)

    Part Number: 94071-08080

    ''


    KA - US - 49 State Spec

    • $1.08
