ALTERNATOR BRACKET
View large diagramHide diagramView diagramView printable catalogTranslate

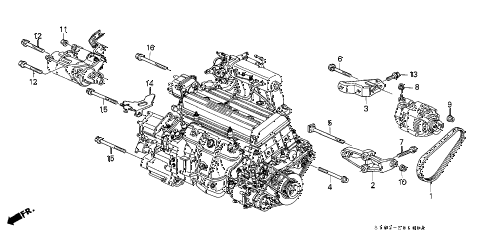

2001 cr-v LX(4WD) 5 DOOR 5MT ALTERNATOR BRACKET diagram

  • 001

    belt, compressor (bando)

    Part Number: 38920-P2A-003

    ''


    KA - US - 49 State Spec

    • $21.80

  • 001

    belt,comp (4pk820)

    Part Number: 38920-P2A-013

    ''


    KA - US - 49 State Spec

    • $21.80

  • 002

    bracket a, alternator

    Part Number: 31112-P2T-000

    ''


    KA - US - 49 State Spec

    • $66.18

  • 003

    stay, alternator

    Part Number: 31113-P54-000

    ''


    KA - US - 49 State Spec

    • $39.75

  • 004

    bolt, flange (12x65)

    Part Number: 90050-PG7-000

    ''


    KA - US - 49 State Spec

    • $7.40

  • 005

    bolt, alternator

    Part Number: 90057-PG7-003

    ''


    KA - US - 49 State Spec

    • $8.32

  • 006

    bolt, alternator (upper)

    Part Number: 90058-P72-000

    ''


    KA - US - 49 State Spec

    • $8.48

  • 007

    bolt, knock (10x35)

    Part Number: 90059-PR3-000

    ''


    KA - US - 49 State Spec

    • $5.70

  • 008

    nut, flange (6mm)

    Part Number: 94050-06080

    ''


    KA - US - 49 State Spec

    • $0.47

  • 009

    nut, flange (8mm)

    Part Number: 94050-08080

    ''


    KA - US - 49 State Spec

    • $0.68

  • 010

    nut, flange (10mm)

    Part Number: 94050-10080

    ''


    KA - US - 49 State Spec

    • $1.43

  • 011

    nut-washer (8mm)

    Part Number: 94070-08080

    ''


    KA - US - 49 State Spec

    • $1.07

  • 012

    bolt, flange (10x40)

    Part Number: 95701-10040-08

    ''


    KA - US - 49 State Spec

    • $1.68

  • 013

    bolt, flange (10x25)

    Part Number: 95701-10025-08

    ''


    KA - US - 49 State Spec

    • $1.68

  • 014

    stay b, engine wire harness

    Part Number: 32752-P01-000

    ''


    KA - US - 49 State Spec

    • $5.08

  • 015

    bolt, flange (12x70)

    Part Number: 90051-PE0-000

    ''


    KA - US - 49 State Spec

    • $8.58

  • 016

    bolt, flange (10x70)

    Part Number: 95701-10070-08

    ''


    KA - US - 49 State Spec

    • $2.38

Back to Top
belt, compressor (bando)belt,comp (4pk820)bracket a, alternatorstay, alternatorbolt, flange (12x65)bolt, alternatorbolt, alternator (upper)bolt, knock (10x35)nut, flange (6mm)nut, flange (8mm)nut, flange (10mm)nut-washer (8mm)bolt, flange (10x40)bolt, flange (10x40)bolt, flange (10x25)stay b, engine wire harnessbolt, flange (12x70)bolt, flange (12x70)bolt, flange (10x70)
