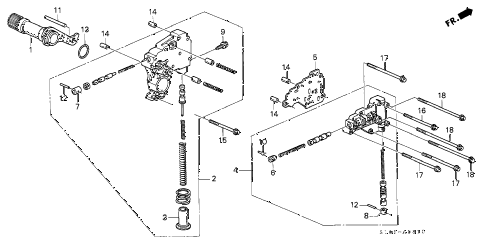

AT REGULATOR - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: shaft assy., stator Part Number: 25155-P4R-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $39.63

Ref #: 002	Honda Part: regulator assy. Part Number: 27200-PKN-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $274.98

Ref #: 003	Honda Part: cap, regulator spring Part Number: 27246-PN6-800 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $31.17

Ref #: 004	Honda Part: body assy., lock-up valve Part Number: 27600-PDM-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $163.98

Ref #: 005	Honda Part: plate, lock-up separating Part Number: 27612-P4R-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $7.93

Ref #: 006	Honda Part: cap (13mm) Part Number: 27628-P4R-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $6.03

Ref #: 007	Honda Part: cap, lock-up control Part Number: 27645-PL1-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.60

Ref #: 008	Honda Part: cap, reverse control valve Part Number: 27728-PF4-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.67

Ref #: 009	Honda Part: bolt, stopper (6mm) Part Number: 90089-PK4-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.08

Ref #: 010	Honda Part: clip, valve cap Part Number: 90638-P56-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.17

Ref #: 011	Honda Part: pin, dowel (8x68) Part Number: 90703-PL4-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.70

Ref #: 012	Honda Part: roller (3.5x21.8) Part Number: 91101-PF4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.67

Ref #: 013	Honda Part: o-ring (31x1.7) (arai) Part Number: 91316-PF4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.52

Ref #: 014	Honda Part: pin, dowel (8x14) Part Number: 94301-08140 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.17

Ref #: 015	Honda Part: bolt, flange (6x60) Part Number: 95701-06060-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.20

Ref #: 016	Honda Part: bolt, flange (6x70) Part Number: 95701-06070-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.30

Ref #: 017	Honda Part: bolt, flange (6x85) Part Number: 95701-06085-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.57

Ref #: 018	Honda Part: bolt, flange (6x100) Part Number: 95701-06100-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.62

Ref #: 001	Honda Part: shaft assy., stator Part Number: 25155-P4R-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$39.63

Ref #: 002	Honda Part: regulator assy. Part Number: 27200-PKN-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$274.98

Ref #: 003	Honda Part: cap, regulator spring Part Number: 27246-PN6-800 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$31.17

Ref #: 004	Honda Part: body assy., lock-up valve Part Number: 27600-PDM-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$163.98

Ref #: 005	Honda Part: plate, lock-up separating Part Number: 27612-P4R-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$7.93

Ref #: 006	Honda Part: cap (13mm) Part Number: 27628-P4R-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$6.03

Ref #: 007	Honda Part: cap, lock-up control Part Number: 27645-PL1-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.60

Ref #: 008	Honda Part: cap, reverse control valve Part Number: 27728-PF4-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.67

Ref #: 009	Honda Part: bolt, stopper (6mm) Part Number: 90089-PK4-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.08

Ref #: 010	Honda Part: clip, valve cap Part Number: 90638-P56-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.17

Ref #: 011	Honda Part: pin, dowel (8x68) Part Number: 90703-PL4-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.70

Ref #: 012	Honda Part: roller (3.5x21.8) Part Number: 91101-PF4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.67

Ref #: 013	Honda Part: o-ring (31x1.7) (arai) Part Number: 91316-PF4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.52

Ref #: 014	Honda Part: pin, dowel (8x14) Part Number: 94301-08140 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.17

Ref #: 015	Honda Part: bolt, flange (6x60) Part Number: 95701-06060-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.20

Ref #: 016	Honda Part: bolt, flange (6x70) Part Number: 95701-06070-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.30

Ref #: 017	Honda Part: bolt, flange (6x85) Part Number: 95701-06085-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.57

Ref #: 018	Honda Part: bolt, flange (6x100) Part Number: 95701-06100-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.62
