FUEL PIPE (2)
View large diagramHide diagramView diagramView printable catalogTranslate

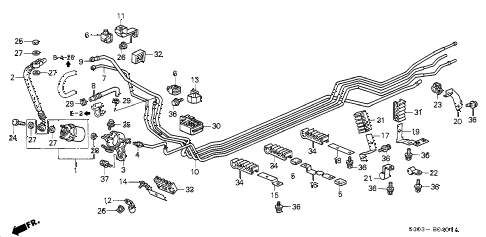

2001 prelude BASE 2 DOOR 4AT FUEL PIPE (2) diagram

  • 001

    filter set, fuel (toyo roki)

    Part Number: 16010-ST5-933

    ''


    KA - US - 49 State Spec

    • $36.50

  • 001

    filter set, fuel

    Part Number: 16010-ST5-E02

    ''


    KA - US - 49 State Spec

    • $36.50

  • 002

    hose, fuel feed

    Part Number: 16720-P5K-003

    ''


    KA - US - 49 State Spec

    • $116.03

  • 003

    stay, fuel strainer

    Part Number: 16918-S30-000

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    pipe, fuel feed

    Part Number: 17700-S30-A00

    ''


    KA - US - 49 State Spec

    • $70.41

  • 005

    mount, rubber

    Part Number: 17701-SZ3-930

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    clamp, vent tube

    Part Number: 17711-S30-A31

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    pipe, vent

    Part Number: 17720-S30-A30

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    hose, pressure regulator return

    Part Number: 17723-S30-930

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    pipe, vent (orvr)

    Part Number: 17730-S30-A30

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 010

    pipe, return

    Part Number: 17740-S30-A30

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 011

    stay a, fuel pipe

    Part Number: 17760-S30-A30

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    stay b, fuel pipe

    Part Number: 17761-S30-A30

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 013

    stay c, fuel pipe

    Part Number: 17762-S30-A30

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 014

    stay d, fuel pipe

    Part Number: 17763-S30-A30

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 015

    stay e, fuel pipe

    Part Number: 17764-S30-A30

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 016

    stay f, fuel pipe

    Part Number: 17765-S30-A30

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 017

    stay f, fuel pipe

    Part Number: 17766-SS0-000

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 018

    stay g, fuel pipe

    Part Number: 17766-S30-A30

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 019

    stay h, fuel pipe

    Part Number: 17767-S30-A30

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 020

    stay h, fuel pipe

    Part Number: 17768-S30-000

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 021

    stay j, fuel pipe

    Part Number: 17769-S30-A30

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 022

    stay k, fuel pipe

    Part Number: 17770-S30-A30

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 023

    clip, return pipe (10mm)

    Part Number: 53728-SM4-013

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 024

    bolt, sealing (12mm)

    Part Number: 90020-PD6-000

    ''


    KA - US - 49 State Spec

    • $5.05

  • 025

    nut a, sealing (12mm)

    Part Number: 90201-PD1-000

    ''


    KA - US - 49 State Spec

    • $4.15

  • 027

    washer, sealing (12mm)

    Part Number: 90428-PD6-003

    ''


    KA - US - 49 State Spec

    • $4.40

  • 028

    washer, sealing (6mm)

    Part Number: 90430-PD6-003

    ''


    KA - US - 49 State Spec

    • $3.48

  • 029

    clamp, fuel hose (15.5mm)

    Part Number: 91406-SL0-931

    ''


    KA - US - 49 State Spec

    • $8.32

  • 030

    clamp, fuel pipe

    Part Number: 91591-S30-A31

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 031

    clamp c, fuel pipe

    Part Number: 91596-S30-A31

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 032

    clip a, fuel pipe

    Part Number: 91597-S30-A31

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 033

    clamp b, fuel pipe

    Part Number: 91598-S30-A31

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 034

    clamp a, fuel pipe

    Part Number: 91599-S30-A31

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 035

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    ''


    KA - US - 49 State Spec

    • $1.33

  • 036

    bolt-washer (6x16)

    Part Number: 93405-06016-04

    ''


    KA - US - 49 State Spec

    • $1.33

  • 037

    bolt-washer (6x16)

    Part Number: 93405-06016-08

    ''


    KA - US - 49 State Spec

    • $1.33
