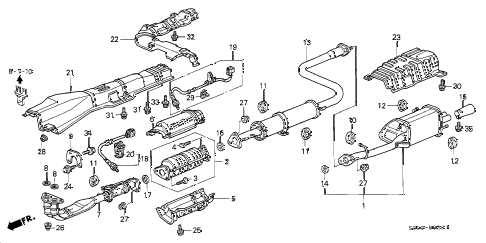

View large diagramHide diagramView diagramView printable catalog
  • 001

    muffler set, ex.

    • Part Number: 18030-S30-980

    '


    KA - US - 49 State Spec

    • $270.27

  • 002

    converter (ghe975)

    • Part Number: 18160-P5M-A00

    '


    KA - US - 49 State Spec

    • $698.30

  • 003

    bolt, converter

    • Part Number: 18176-PT0-003

    '


    KA - US - 49 State Spec

    • $12.88

  • 004

    bolt, converter

    • Part Number: 18176-P08-003

    '


    KA - US - 49 State Spec

    • $12.88

  • 005

    cover (lower)

    • Part Number: 18181-P5M-A00

    '


    KA - US - 49 State Spec

    • $70.18

  • 006

    cover (upper)

    • Part Number: 18182-P5M-A00

    '


    KA - US - 49 State Spec

    • $70.18

  • 007

    pipe a, ex.

    • Part Number: 18210-S30-A21

    '


    KA - US - 49 State Spec

    • $560.65

  • 008

    gasket, ex. pipe (ishino)

    • Part Number: 18212-SB2-961

    '


    KA - US - 49 State Spec

    • $6.48

  • 009

    stay, ex. pipe

    • Part Number: 18213-S30-N21

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 010

    rubber, muffler mounting (70x45x25)

    • Part Number: 18215-SA7-000

    '


    KA - US - 49 State Spec

    • $10.15

  • 011

    rubber, ex. pipe mounting (60x50x20)

    • Part Number: 18215-SE0-G00

    '


    KA - US - 49 State Spec

    • $10.15

  • 012

    rubber, ex. mounting

    • Part Number: 18215-SV4-000

    '


    KA - US - 49 State Spec

    • $10.15

  • 013

    pipe b, ex.

    • Part Number: 18220-S30-A22

    '


    KA - US - 49 State Spec

    • $216.53

  • 014

    gasket, muffler

    • Part Number: 18303-SM4-020

    '


    KA - US - 49 State Spec

    • $10.13

  • 015

    finisher, ex. pipe

    • Part Number: 18310-SS0-J30

    '


    KA - US - 49 State Spec

    • $54.03

  • 016

    gasket, pre chamber (52.5mm-53.5mm)

    • Part Number: 18393-SH3-S00

    '


    KA - US - 49 State Spec

    • $10.52

  • 017

    gasket, pre chamber (57.5mm-58.5mm)

    • Part Number: 18393-SS0-J30

    '


    KA - US - 49 State Spec

    • $10.48

  • 018

    sensor, oxygen

    • Part Number: 36531-P5P-014

    '


    KA - US - 49 State Spec

    • $370.20

  • 019

    sensor, rr. oxygen

    • Part Number: 36532-P5M-A02

    '


    KA - US - 49 State Spec

    • $308.50

  • 020

    clip, oxygen sensor

    • Part Number: 36538-P5P-003

    '


    KA - US - 49 State Spec

    • $5.03

  • 021

    plate, floor heat baffle

    • Part Number: 74601-S30-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 022

    plate, tank baffle

    • Part Number: 74650-S30-A00

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 023

    plate, muffler baffle

    • Part Number: 74655-SS0-000

    '


    KA - US - 49 State Spec

    • $33.58

  • 024

    bolt, flange (8x22)

    • Part Number: 90001-SD2-000

    '


    KA - US - 49 State Spec

    • $3.98

  • 025

    bolt, flange (6x10) (iwata bolt)

    • Part Number: 90023-PK1-000

    '


    KA - US - 49 State Spec

    • $5.73

  • 025

    bolt, flange (6x12) (iwata bolt)

    • Part Number: 90023-PR7-A01

    '


    KA - US - 49 State Spec

    • $5.73

  • 026

    nut, self-lock (10mm)

    • Part Number: 90212-SA5-003

    '


    KA - US - 49 State Spec

    • $0.58

  • 027

    nut, self-lock (10mm)

    • Part Number: 90212-671-005

    '


    KA - US - 49 State Spec

    • $0.47

  • 028

    nut, paint cutting (6mm)

    • Part Number: 90301-SV7-000

    '


    KA - US - 49 State Spec

    • $3.03

  • 029

    clip a, harness band (129.4mm)(dark gray)

    • Part Number: 91506-P01-003

    '


    KA - US - 49 State Spec

    • $4.10

  • 030

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

  • 031

    bolt-washer (6x14)

    • Part Number: 93404-06014-05

    '


    KA - US - 49 State Spec

    • $0.88

  • 032

    bolt-washer (6x12)

    • Part Number: 93404-06012-07

    '


    KA - US - 49 State Spec

    • $0.88

  • 033

    bolt-washer (6x20)

    • Part Number: 93404-06020-05

    '


    KA - US - 49 State Spec

    • $0.88

  • 034

    bolt, flange (10x20)

    • Part Number: 95701-10020-08

    '


    KA - US - 49 State Spec

    • $1.25

  • 035

    bolt, flange (6x14)

    • Part Number: 95701-06014-00

    '


    KA - US - 49 State Spec

    • $0.73

Back to Top
muffler set, ex.converter (ghe975)bolt, converterbolt, convertercover (lower)cover (upper)pipe a, ex.gasket, ex. pipe (ishino)gasket, ex. pipe (ishino)stay, ex. piperubber, muffler mounting (70x45x25)rubber, ex. pipe mounting (60x50x20)rubber, ex. pipe mounting (60x50x20)rubber, ex. pipe mounting (60x50x20)rubber, ex. mountingrubber, ex. mountingpipe b, ex.gasket, mufflerfinisher, ex. pipegasket, pre chamber (52.5mm-53.5mm)gasket, pre chamber (57.5mm-58.5mm)sensor, oxygensensor, rr. oxygenclip, oxygen sensorplate, floor heat baffleplate, tank baffleplate, muffler bafflebolt, flange (8x22)bolt, flange (6x10) (iwata bolt)bolt, flange (6x12) (iwata bolt)nut, self-lock (10mm)nut, self-lock (10mm)nut, self-lock (10mm)nut, self-lock (10mm)nut, paint cutting (6mm)clip a, harness band (129.4mm)(dark gray)bolt, flange (6x12)bolt-washer (6x14)bolt-washer (6x14)bolt-washer (6x12)bolt-washer (6x20)bolt, flange (10x20)bolt, flange (6x14)
