INTAKE MANIFOLD
View large diagramHide diagramView diagramView printable catalogTranslate

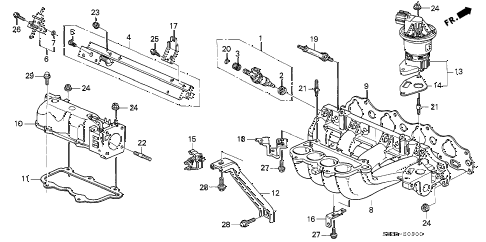

2002 accord EX(LEATHER) 2 DOOR 4AT INTAKE MANIFOLD diagram

  • 001

    injector set, fuel

    Part Number: 06164-P8A-A00

    ''


    KA - US - 49 State Spec

    • $140.22

  • 002

    seal ring, injector (nok)

    Part Number: 16472-P0H-A01

    ''


    KA - US - 49 State Spec

    • $2.05

  • 003

    cushion ring, injector (nok)

    Part Number: 16473-P10-A01

    ''


    KA - US - 49 State Spec

    • $3.75

  • 004

    pipe, fuel

    Part Number: 16610-PAA-A00

    ''


    KA - US - 49 State Spec

    • $180.33

  • 006

    regulator assy., pressure

    Part Number: 16740-PAA-A01

    ''


    KA - US - 49 State Spec

    • $50.50

  • 007

    o-ring, pressure regulator

    Part Number: 16741-PG7-005

    ''


    KA - US - 49 State Spec

    • $2.62

  • 008

    manifold a, in.

    Part Number: 17100-PAA-L00

    ''


    KA - US - 49 State Spec

    • $507.87

  • 009

    gasket a, in. manifold (nippon leakless)

    Part Number: 17105-PAA-L01

    ''


    KA - US - 49 State Spec

    • $15.87

  • 010

    manifold b, in.

    Part Number: 17110-PAA-A01

    ''


    KA - US - 49 State Spec

    • $269.42

  • 011

    gasket, in. manifold (gemstone)

    Part Number: 17115-PAA-A01

    ''


    KA - US - 49 State Spec

    • $6.33

  • 012

    stay, in. manifold

    Part Number: 17125-PAA-A00

    ''


    KA - US - 49 State Spec

    • $287.37

  • 013

    valve set, egr

    Part Number: 18011-PAA-A00

    ''


    KA - US - 49 State Spec

    • $198.22

  • 014

    gasket, egr valve (ishino gasket)

    Part Number: 18715-PB2-000

    ''


    KA - US - 49 State Spec

    • $7.30

  • 015

    clamp, hose (13mm)

    Part Number: 19517-P08-003

    ''


    KA - US - 49 State Spec

    • $0.82

  • 016

    clamp c, engine wire harness

    Part Number: 32743-PAA-A00

    ''


    KA - US - 49 State Spec

    • $1.30

  • 017

    stay e, engine harness

    Part Number: 32753-PAA-A00

    ''


    KA - US - 49 State Spec

    • $2.60

  • 018

    stay j, engine wire harness

    Part Number: 32759-P0A-A00

    ''


    KA - US - 49 State Spec

    • $11.26

  • 019

    bolt a, fuel pipe

    Part Number: 90027-P0A-003

    ''


    KA - US - 49 State Spec

    • $7.72

  • 020

    o-ring (7.3x2.2) (nok)

    Part Number: 91301-P2F-A01

    ''


    KA - US - 49 State Spec

    • $2.40

  • 020

    o-ring (7.3x2.2) (arai)

    Part Number: 91301-PM7-003

    ''


    KA - US - 49 State Spec

    • $2.40

  • 021

    bolt, stud (8x22)

    Part Number: 92900-08022-0B

    ''


    KA - US - 49 State Spec

    • $1.22

  • 022

    bolt, stud (8x35)

    Part Number: 92900-08035-1B

    ''


    KA - US - 49 State Spec

    • $1.38

  • 023

    nut, flange (6mm)

    Part Number: 94050-06080

    ''


    KA - US - 49 State Spec

    • $0.25

  • 024

    nut, flange (8mm)

    Part Number: 94050-08080

    ''


    KA - US - 49 State Spec

    • $0.27

  • 025

    bolt, flange (6x10)

    Part Number: 95701-06010-08

    ''


    KA - US - 49 State Spec

    • $0.90

  • 026

    bolt, flange (6x14)

    Part Number: 95701-06014-08

    ''


    KA - US - 49 State Spec

    • $0.92

  • 027

    bolt, flange (8x16)

    Part Number: 95701-08016-08

    ''


    KA - US - 49 State Spec

    • $1.02

  • 028

    bolt, flange (8x20)

    Part Number: 95701-08020-08

    ''


    KA - US - 49 State Spec

    • $0.92

  • 029

    bolt, flange (8x25)

    Part Number: 95701-08025-08

    ''


    KA - US - 49 State Spec

    • $0.45
