FRONT LOWER ARM
View large diagramHide diagramView diagramView printable catalogTranslate

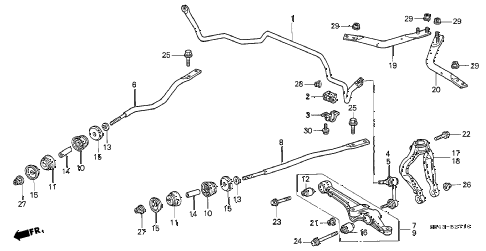

2002 accord SE(UL) 2 DOOR 4AT FRONT LOWER ARM diagram

  • 001

    spring, fr. stabilizer

    Part Number: 51300-S84-A01

    ''


    KL - California Spec

    • $63.67

  • 002

    bush, stabilizer holder

    Part Number: 51306-S84-A01

    ''


    KL - California Spec

    • $3.80

  • 003

    bracket, fr. stabilizer

    Part Number: 51308-SW3-000

    ''


    KL - California Spec

    • $9.09

  • 004

    link, r. fr. stabilizer

    Part Number: 51320-S84-A01

    ''


    KL - California Spec

    • $38.10

  • 005

    link, l. fr. stabilizer

    Part Number: 51321-S84-A01

    ''


    KL - California Spec

    • $38.10

  • 006

    rod, r. fr. radius

    Part Number: 51352-S84-A01

    ''


    KL - California Spec

    • $62.50

  • 007

    arm, r. fr. (lower)

    Part Number: 51355-S84-A00

    ''


    KL - California Spec

    • $215.67

  • 008

    rod, fr. radius

    Part Number: 51362-S84-A01

    ''


    KL - California Spec

    • $62.50

  • 009

    arm, l. fr. (lower)

    Part Number: 51365-S84-A00

    ''


    KL - California Spec

    • $215.67

  • 010

    bush, fr. radius rod (rr)

    Part Number: 51381-S84-A01

    ''


    KL - California Spec

    • $3.88

  • 011

    bush, radius rod (fr)

    Part Number: 51391-S84-A01

    ''


    KL - California Spec

    • $12.12

  • 012

    bush, fr. arm (lower)

    Part Number: 51393-SV1-A01

    ''


    KL - California Spec

    • $11.02

  • 013

    washer, caster adjuster

    Part Number: 51394-S84-000

    ''


    KL - California Spec

    • $5.20

  • 014

    collar, radius rod

    Part Number: 51398-SM4-000

    ''


    KL - California Spec

    • $6.58

  • 015

    washer, fr. radius rod

    Part Number: 51399-S0A-000

    ''


    KL - California Spec

    • $6.82

  • 016

    bush, shock absorber (hokushin)

    Part Number: 51810-SV4-003

    ''


    KL - California Spec

    • $24.78

  • 017

    fork, r. fr. shock absorber

    Part Number: 51811-S84-A00

    ''


    KL - California Spec

    • $264.43

  • 018

    fork, l. fr. shock absorber

    Part Number: 51821-S84-A00

    ''


    KL - California Spec

    • $264.43

  • 019

    bar, r. fr. strut

    Part Number: 74180-S84-A00

    ''


    KL - California Spec

    • $45.73

  • 020

    bar, l. fr. strut

    Part Number: 74185-S84-A00

    ''


    KL - California Spec

    • $46.08

  • 021

    nut, flange (10mm)

    Part Number: 90002-S10-000

    ''


    KL - California Spec

    • $0.68

  • 022

    bolt, fr. shock absorber lock (10x44)

    Part Number: 90117-SM4-003

    ''


    KL - California Spec

    • $6.18

  • 023

    bolt, fr. arm (lower) (12x84)

    Part Number: 90118-S0A-000

    ''


    KL - California Spec

    • $5.62

  • 024

    bolt, shock absorber fork (12x98)

    Part Number: 90121-SM4-010

    ''


    KL - California Spec

    • $8.02

  • 025

    bolt, fr. radius rod (14x37)

    Part Number: 90178-S84-A00

    ''


    KL - California Spec

    • $4.42

  • 026

    nut, self-lock (12mm) (clinch)(sato rashi)

    Part Number: 90215-SB0-003

    ''


    KL - California Spec

    • $1.22

  • 027

    nut, self-lock (12mm)

    Part Number: 90303-SF1-003

    ''


    KL - California Spec

    • $4.82

  • 028

    nut, self-lock (10mm)

    Part Number: 90212-SA5-003

    ''


    KL - California Spec

    • $0.60

  • 029

    nut-washer (8mm)

    Part Number: 94071-08080

    ''


    KL - California Spec

    • $0.85

  • 030

    bolt, flange (10x18)

    Part Number: 95801-10018-08

    ''


    KL - California Spec

    • $1.30
