CONTROL UNIT (CABIN)
View large diagramHide diagramView diagramView printable catalogTranslate

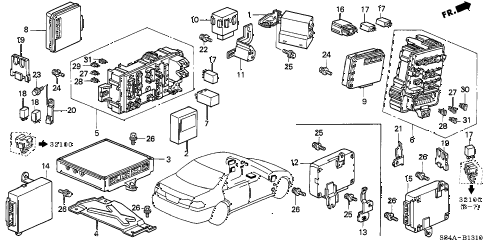

2002 accord EX(SUL) 4 DOOR 4AT CONTROL UNIT (CABIN) diagram

  • 001

    controller, auto cruise

    Part Number: 36700-S84-A02

    ''


    KL - California Spec

    • $182.18

  • 003

    control module, eng

    Part Number: 37820-PAA-L97

    ''


    KL - California Spec

    • $776.92

  • 005

    box assy., fuse

    Part Number: 38200-S84-A01

    ''


    KL - California Spec

    • $48.47

  • 006

    box assy., fuse (passenger side)

    Part Number: 38210-S84-A21

    ''


    KL - California Spec

    • $47.55

  • 007

    relay assy., turn signal and hazard (fr-3309) (mitsuba)

    Part Number: 38300-SE3-013

    ''


    KL - California Spec

    • $43.37

  • 008

    system unit, multiplex control(driver side)(uta)

    Part Number: 38800-S84-A24

    ''


    KL - California Spec

    • $208.18

  • 009

    system unit, multiplex control(passenger side)(uta)

    Part Number: 38850-S84-A24

    ''


    KL - California Spec

    • $203.87

  • 010

    relay assy., main (mitsuba)

    Part Number: 39400-S84-003

    ''


    KL - California Spec

    • $72.45

  • 011

    bracket, main relay

    Part Number: 39402-S84-A00

    ''


    KL - California Spec

    • $4.08

  • 014

    abs unit

    Part Number: 39790-S84-A02

    ''


    KL - California Spec

    • $313.30

  • 016

    relay assy., power (4p no.305)(denso)

    Part Number: 39792-SM4-013

    ''


    KL - California Spec

    • $41.37

  • 017

    relay assy., power (4p) (micro iso) (matsushita)

    Part Number: 39794-S04-004

    ''


    KL - California Spec

    • $26.08

  • 017

    relay assy., power (4p) (micro iso) (matsushita)

    Part Number: 39794-S04-014

    ''


    KL - California Spec

    • $26.08

  • 018

    relay assy., power (5p) (micro iso) (mitsuba)

    Part Number: 39794-S10-003

    ''


    KL - California Spec

    • $27.17

  • 019

    cover, power relay

    Part Number: 91751-S30-003

    ''


    KL - California Spec

    • $6.83

  • 020

    bracket, relay block (iso)

    Part Number: 91755-SX0-010

    ''


    KL - California Spec

    • $5.00

  • 021

    bracket, relay block (micro-iso)

    Part Number: 91756-S87-A00

    ''


    KL - California Spec

    • $2.33

  • 022

    bolt-washer (6x12)

    Part Number: 93401-06012-08

    ''


    KL - California Spec

    • $0.95

  • 023

    bolt-washer (6x12)

    Part Number: 93403-06012-08

    ''


    KL - California Spec

    • $1.00

  • 024

    bolt-washer (6x16)

    Part Number: 93405-06016-08

    ''


    KL - California Spec

    • $1.08

  • 025

    bolt, flange (6x12)

    Part Number: 95701-06012-08

    ''


    KL - California Spec

    • $1.07

  • 026

    bolt, flange (6x16)

    Part Number: 95701-06016-08

    ''


    KL - California Spec

    • $0.95

  • 027

    fuse, mini (7.5a)

    Part Number: 98200-40750

    ''


    KL - California Spec

    • $0.85

  • 028

    fuse, mini (10a)

    Part Number: 98200-41000

    ''


    KL - California Spec

    • $0.85

  • 029

    fuse, mini (15a)

    Part Number: 98200-41500

    ''


    KL - California Spec

    • $0.85

  • 030

    fuse, mini (20a)

    Part Number: 98200-42000

    ''


    KL - California Spec

    • $0.85

  • 031

    fuse, mini (30a)

    Part Number: 98200-43000

    ''


    KL - California Spec

    • $0.85
