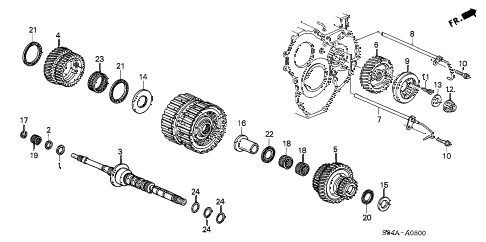

2002 accord EX(UL LEATHER) 4 DOOR 4AT AT MAINSHAFT diagram
Back to Top
ring, sealing (32mm)ring, sealing (29mm)mainshaftgear, mainshaft thirdgear, mainshaft fourthgear, mainshaft firstpipe, pitotpipe, pitotflange, pitotbolt, flange (6x20)bolt, flange (6x20)bolt, socket (6x15)nut, flange (24mm) (left hand thread)washer, spring (24mm)washer, thrust (41x72x6.35)washer, thrust (41x72x6.40)washer, thrust (41x72x6.45)washer, thrust (41x72x6.50)washer, thrust (41x72x6.55)washer, thrust (41x72x6.60)washer, thrust (41x72x6.35)washer, thrust (41x72x6.40)washer, thrust (41x72x6.45)washer, thrust (41x72x6.50)washer, thrust (41x72x6.55)washer, thrust (41x72x6.60)washer, thrust (27x47x5)collar (27x34x49.4)set-ring (23mm)set-ring (23mm)set-ring (23mm)set-ring (23mm)bearing, needle (34x40x18)bearing, needle (34x40x18)bearing, needle (23x29x18)bearing, needle (23x29x18)bearing, needle (23x29x18)bearing, needle (23x29x18)bearing, thrust needle (34x46x2)bearing, thrust needle (62x73x2) (ntn)bearing, thrust needle (62x73x2) (ntn)bearing, thrust needle (62x73x2) (ina)bearing, thrust needle (62x73x2) (ina)bearing, thrust needle (62x73x2) (ntn)bearing, thrust needle (62x73x2) (ntn)bearing, thrust needle (62x73x2) (ina)bearing, thrust needle (62x73x2) (ina)bearing, thrust needle (34x53.5x2.5)bearing, needle (56x61x18) (ntn)o-ring (33x1.9) (arai)o-ring (33x1.9) (arai)o-ring (33x1.9) (arai)
