ENGINE WIRE HARNESS
View large diagramHide diagramView diagramView printable catalogTranslate

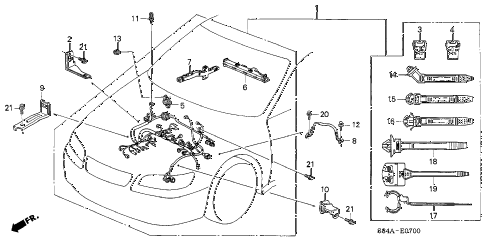

2002 accord LX(UL) 4 DOOR 5MT ENGINE WIRE HARNESS diagram

  • 001

    wire harness, engine

    Part Number: 32110-PAA-L20

    '' ''


    KL - California Spec

    • $587.12

  • 002

    stay, r. engine wire harness

    Part Number: 32112-PAA-A00

    '' ''


    KL - California Spec

    • $7.36

  • 003

    holder, corrugated (22mm) (dark blue)

    Part Number: 32119-P2E-A01

    '' ''


    KL - California Spec

    • $3.90

  • 005

    plate, wire harness grommet

    Part Number: 32121-PAA-A01

    '' ''


    KL - California Spec

    • $3.25

  • 006

    holder a, harness

    Part Number: 32127-PAA-A00

    '' ''


    KL - California Spec

    • $8.23

  • 007

    holder c, harness

    Part Number: 32129-PAA-A00

    '' ''


    KL - California Spec

    • $16.02

  • 008

    cable, sub-ground

    Part Number: 32610-S84-A00

    '' ''


    KL - California Spec

    • $7.32

  • 009

    clamp e, engine wire harness

    Part Number: 32745-PAA-A00

    '' ''


    KL - California Spec

    • $0.78

  • 010

    clamp b, engine harness

    Part Number: 32750-PAA-A00

    '' ''


    KL - California Spec

    • $5.15

  • 011

    bolt (6x15)

    Part Number: 90114-SM4-900

    '' ''


    KL - California Spec

    • $3.78

  • 012

    bolt, ground (6x16)

    Part Number: 90149-SE0-003

    '' ''


    KL - California Spec

    • $4.95

  • 013

    nut, paint cutting (6mm)

    Part Number: 90361-SV4-003

    '' ''


    KL - California Spec

    • $1.73

  • 014

    clip, alternator cord

    Part Number: 91506-P0A-A01

    '' ''


    KL - California Spec

    • $5.07

  • 015

    clip a, harness band (129.4mm)(dark gray)

    Part Number: 91506-P01-003

    '' ''


    KL - California Spec

    • $4.27

  • 016

    clip b, harness band (129.4mm)(dark brown)

    Part Number: 91507-P01-003

    '' ''


    KL - California Spec

    • $4.05

  • 017

    clip, tube (135mm) (black)

    Part Number: 91558-SM4-003

    '' ''


    KL - California Spec

    • $4.15

  • 018

    clip, harness band (135mm) (7mm hole) (natural)

    Part Number: 91558-ST5-003

    '' ''


    KL - California Spec

    • $4.27

  • 019

    clip, harness band (150mm) (gray)

    Part Number: 91559-PAA-A01

    '' ''


    KL - California Spec

    • $0.82

  • 020

    bolt-washer (6x12)

    Part Number: 93403-06012-08

    '' ''


    KL - California Spec

    • $0.97

  • 020

    bolt, flange (6x10)

    Part Number: 95701-06010-08

    '' ''


    KL - California Spec

    • $0.90

  • 020

    bolt-washer (6x12)

    Part Number: 93403-06012-08

    '' ''


    KL - California Spec

    • $0.97

  • 020

    bolt, flange (6x10)

    Part Number: 95701-06010-08

    '' ''


    KL - California Spec

    • $0.90

  • 021

    bolt, flange (6x12)

    Part Number: 95701-06012-08

    '' ''


    KL - California Spec

    • $1.03

Back to Top
