FRONT SEAT COMPONENTS (R.) (MANUAL SEAT)
View large diagramHide diagramView diagramView printable catalogTranslate

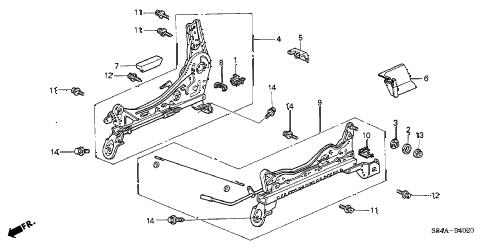

2002 accord LX(UL ABS) 4 DOOR 4AT FRONT SEAT COMPONENTS (R.) (MANUAL SEAT) diagram

  • 001

    cap, slide adjuster

    Part Number: 77517-SA5-014

    '' ''


    KL - California Spec

    • $5.95

  • 002

    washer, nylon

    Part Number: 77209-SB0-003

    '' ''


    KL - California Spec

    • $3.03

  • 003

    bush, nylon (tachi-s)(black)

    Part Number: 81108-SE3-J02

    '' ''


    KL - California Spec

    • $3.35

  • 003

    bush, nylon (ts tech)

    Part Number: 81117-S47-003

    '' ''


    KL - California Spec

    • $2.78

  • 003

    bush, nylon (tachi-s)(black)

    Part Number: 81108-SE3-J02

    '' ''


    KL - California Spec

    • $3.35

  • 003

    bush, nylon (ts tech)

    Part Number: 81117-S47-003

    '' ''


    KL - California Spec

    • $2.78

  • 004

    slide, r. reclining (outer)

    Part Number: 81150-S4K-A01

    '' ''


    KL - California Spec

    Contact your dealer

  • 004

    slide, r. reclining (outer)

    Part Number: 81150-S84-A01

    '' ''


    KL - California Spec

    • $212.12

  • 004

    slide, r. reclining (outer)

    Part Number: 81150-S4K-A01

    '' ''


    KL - California Spec

    Contact your dealer

  • 004

    slide, r. reclining (outer)

    Part Number: 81150-S84-A01

    '' ''


    KL - California Spec

    • $212.12

  • 005

    cover, foot (outer) *yr169l*

    Part Number: 81195-SM4-J01ZN
    (MILD BEIGE)

    '' ''


    KL - California Spec

    • $17.02

  • 005

    cover, foot (outer) *b94l*

    Part Number: 81195-SM4-J01ZR
    (DARK LAPIS)

    '' ''


    KL - California Spec

    • $17.02

  • 005

    cover, foot (outer) *nh283l*

    Part Number: 81195-SM4-J01ZS
    (QUARTZ GRAY)

    '' ''


    KL - California Spec

    • $17.02

  • 005

    cover, foot (outer) *yr169l*

    Part Number: 81195-SM4-J01ZN
    (MILD BEIGE)

    '' ''


    KL - California Spec

    • $17.02

  • 005

    cover, foot (outer) *b94l*

    Part Number: 81195-SM4-J01ZR
    (DARK LAPIS)

    '' ''


    KL - California Spec

    • $17.02

  • 005

    cover, foot (outer) *nh283l*

    Part Number: 81195-SM4-J01ZS
    (QUARTZ GRAY)

    '' ''


    KL - California Spec

    • $17.02

  • 006

    cover, r. rr. foot (inner) *b94l*

    Part Number: 81196-S84-A00ZA
    (DARK LAPIS)

    '' ''


    KL - California Spec

    • $17.13

  • 006

    cover, r. rr. foot (inner) *nh283l*

    Part Number: 81196-S84-A00ZB
    (QUARTZ GRAY)

    '' ''


    KL - California Spec

    • $17.13

  • 006

    cover, r. rr. foot (inner) *yr169l*

    Part Number: 81196-S84-A00ZD
    (MILD BEIGE)

    '' ''


    KL - California Spec

    • $17.13

  • 006

    cover, r. rr. foot (inner) *b94l*

    Part Number: 81196-S84-A00ZA
    (DARK LAPIS)

    '' ''


    KL - California Spec

    • $17.13

  • 006

    cover, r. rr. foot (inner) *nh283l*

    Part Number: 81196-S84-A00ZB
    (QUARTZ GRAY)

    '' ''


    KL - California Spec

    • $17.13

  • 006

    cover, r. rr. foot (inner) *yr169l*

    Part Number: 81196-S84-A00ZD
    (MILD BEIGE)

    '' ''


    KL - California Spec

    • $17.13

  • 007

    knob, r. reclining *nh284l*

    Part Number: 81231-S0X-A00ZA
    (LIGHT QUARTZ GRAY)

    '' ''


    KL - California Spec

    • $17.28

  • 007

    knob, r. reclining *yr169l*

    Part Number: 81231-S0X-A00ZC
    (MILD BEIGE)

    '' ''


    KL - California Spec

    • $17.28

  • 007

    knob, r. reclining *b95l*

    Part Number: 81231-S0X-A00ZE
    (LAPIS)

    '' ''


    KL - California Spec

    Contact your dealer

  • 007

    knob, r. reclining *nh284l*

    Part Number: 81231-S10-003ZD
    (LIGHT QUARTZ GRAY)

    '' ''


    KL - California Spec

    • $10.13

  • 007

    knob, r. reclining *b95l*

    Part Number: 81231-S10-003ZE
    (LAPIS)

    '' ''


    KL - California Spec

    • $10.13

  • 007

    knob, r. reclining *yr169l*

    Part Number: 81231-S10-003ZF
    (MILD BEIGE)

    '' ''


    KL - California Spec

    • $10.13

  • 007

    knob, r. reclining *nh284l*

    Part Number: 81231-S0X-A00ZA
    (LIGHT QUARTZ GRAY)

    '' ''


    KL - California Spec

    • $17.28

  • 007

    knob, r. reclining *yr169l*

    Part Number: 81231-S0X-A00ZC
    (MILD BEIGE)

    '' ''


    KL - California Spec

    • $17.28

  • 007

    knob, r. reclining *b95l*

    Part Number: 81231-S0X-A00ZE
    (LAPIS)

    '' ''


    KL - California Spec

    Contact your dealer

  • 007

    knob, r. reclining *nh284l*

    Part Number: 81231-S10-003ZD
    (LIGHT QUARTZ GRAY)

    '' ''


    KL - California Spec

    • $10.13

  • 007

    knob, r. reclining *b95l*

    Part Number: 81231-S10-003ZE
    (LAPIS)

    '' ''


    KL - California Spec

    • $10.13

  • 007

    knob, r. reclining *yr169l*

    Part Number: 81231-S10-003ZF
    (MILD BEIGE)

    '' ''


    KL - California Spec

    • $10.13

  • 008

    cap, slide adjuster end

    Part Number: 81262-S84-A01

    '' ''


    KL - California Spec

    • $5.25

  • 009

    adjuster, r. slide (inner)

    Part Number: 81270-S4K-A01

    '' ''


    KL - California Spec

    Contact your dealer

  • 009

    adjuster, r. slide (inner)

    Part Number: 81270-S84-A02

    '' ''


    KL - California Spec

    Contact your dealer

  • 009

    adjuster, r. slide (inner)

    Part Number: 81270-S4K-A01

    '' ''


    KL - California Spec

    Contact your dealer

  • 009

    adjuster, r. slide (inner)

    Part Number: 81270-S84-A02

    '' ''


    KL - California Spec

    Contact your dealer

  • 010

    cap, slide adjuster end (upper)

    Part Number: 81272-S84-A01

    '' ''


    KL - California Spec

    • $5.58

  • 011

    bolt-washer (10x22)

    Part Number: 90143-SM4-000

    '' '' '' ''


    KL - California Spec

    • $3.53

  • 011

    bolt-washer (10x22)

    Part Number: 90143-SR3-900

    '' ''


    KL - California Spec

    • $5.32

  • 011

    bolt-washer (10x22)

    Part Number: 90143-SM4-000

    '' '' '' ''


    KL - California Spec

    • $3.53

  • 011

    bolt-washer (10x22)

    Part Number: 90143-SR3-900

    '' ''


    KL - California Spec

    • $5.32

  • 012

    bolt, flange (10x18)

    Part Number: 90143-S04-000

    '' ''


    KL - California Spec

    • $3.42

  • 012

    bolt-washer (10x22)

    Part Number: 90143-SM4-000

    '' '' '' ''


    KL - California Spec

    • $3.53

  • 012

    bolt, flange (10x18)

    Part Number: 90143-S04-000

    '' ''


    KL - California Spec

    • $3.42

  • 012

    bolt-washer (10x22)

    Part Number: 90143-SM4-000

    '' '' '' ''


    KL - California Spec

    • $3.53

  • 013

    nut, cap (8mm)

    Part Number: 90443-KF9-900

    '' ''


    KL - California Spec

    • $2.93

  • 013

    nut, flange (8mm)

    Part Number: 94050-08080

    '' ''


    KL - California Spec

    • $0.27

  • 013

    nut, cap (8mm)

    Part Number: 90443-KF9-900

    '' ''


    KL - California Spec

    • $2.93

  • 013

    nut, flange (8mm)

    Part Number: 94050-08080

    '' ''


    KL - California Spec

    • $0.27

  • 014

    bolt-washer (10x20)

    Part Number: 93405-10020-07

    '' ''


    KL - California Spec

    • $1.35

Back to Top
