DRIVESHAFT
View large diagramHide diagramView diagramView printable catalogTranslate

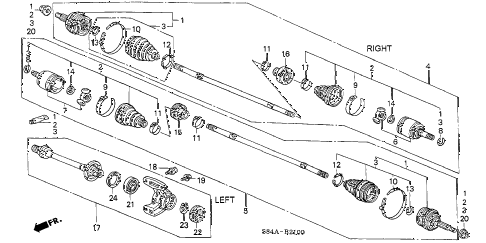

2002 accord LX(UL SIDE SRS) 4 DOOR 5MT DRIVESHAFT diagram

  • 001

    cv joint set

    Part Number: 44014-S0K-C02

    ''


    KL - California Spec

    • $355.15

  • 002

    boot set, inboard

    Part Number: 44017-S84-C00

    ''


    KL - California Spec

    • $36.43

  • 003

    boot set, outboard

    Part Number: 44018-S0K-C22

    ''


    KL - California Spec

    • $36.43

  • 004

    driveshaft assy., r.

    Part Number: 44305-S4K-A52

    ''


    KL - California Spec

    • $628.35

  • 004

    driveshaft assy., r. (rmd)

    Part Number: 44305-S4K-A52RM

    ''


    KL - California Spec

    • $524.65

  • 005

    driveshaft assy., l.

    Part Number: 44306-S4K-A52

    ''


    KL - California Spec

    • $703.05

  • 005

    driveshaft assy., l. (rmd)

    Part Number: 44306-S4K-A52RM

    ''


    KL - California Spec

    • $524.65

  • 006

    joint, inboard

    Part Number: 44310-TA0-A60

    ''


    KL - California Spec

    • $318.68

  • 007

    joint, inboard

    Part Number: 44310-S3X-300

    ''


    KL - California Spec

    • $406.40

  • 007

    joint, inboard

    Part Number: 44310-TA0-A60

    ''


    KL - California Spec

    • $318.68

  • 008

    set-ring (28x2.0)

    Part Number: 44319-S84-300

    ''


    KL - California Spec

    • $2.68

  • 009

    band, joint boot (double rolled band)

    Part Number: 44327-SV4-305

    ''


    KL - California Spec

    • $11.35

  • 010

    band b, driveshaft (oetiker limited)

    Part Number: 44327-SDA-A11

    ''


    KL - California Spec

    • $3.97

  • 010

    band, outboard boot (nippon hatsujo)

    Part Number: 44327-SX0-C02

    ''


    KL - California Spec

    • $11.47

  • 011

    band, shaft boot (double rolled band)

    Part Number: 44329-SV4-305

    ''


    KL - California Spec

    • $9.37

  • 012

    band, driveshaft (oetiker limited)

    Part Number: 44329-S0K-C01

    ''


    KL - California Spec

    • $5.05

  • 012

    band, driveshaft (nippon hatsujo)

    Part Number: 44329-SX0-C02

    ''


    KL - California Spec

    • $7.23

  • 013

    ring b, stopper

    Part Number: 44337-SB0-300

    ''


    KL - California Spec

    • $2.30

  • 013

    ring b, stopper

    Part Number: 44337-SM1-300

    ''


    KL - California Spec

    • $0.33

  • 014

    circlip (26mm)

    Part Number: 44338-SB0-300

    ''


    KL - California Spec

    • $3.50

  • 014

    circlip (26mm)

    Part Number: 44338-SM1-300

    ''


    KL - California Spec

    • $3.50

  • 016

    damper, dynamic (toukai)

    Part Number: 44351-S10-A01

    ''


    KL - California Spec

    Contact your dealer

  • 016

    damper, dynamic (yusa)

    Part Number: 44351-S84-003

    ''


    KL - California Spec

    Contact your dealer

  • 017

    shaft assy., half

    Part Number: 44500-S84-A00

    ''


    KL - California Spec

    • $322.42

  • 018

    bolt, hex. (10x1.25)

    Part Number: 90102-SF1-000

    ''


    KL - California Spec

    • $8.08

  • 019

    bolt, flange (10x37)

    Part Number: 90165-SE0-000

    ''


    KL - California Spec

    • $3.65

  • 020

    nut, spindle (24mm)

    Part Number: 90305-SD4-003

    ''


    KL - California Spec

    • $6.05

  • 021

    bearing, half shaft (ntn)

    Part Number: 91057-SH3-008

    ''


    KL - California Spec

    • $47.63

  • 022

    seal, half shaft (outer)

    Part Number: 91260-S84-A01

    ''


    KL - California Spec

    • $8.37

  • 023

    circlip, outer (38mm)

    Part Number: 94510-38000

    ''


    KL - California Spec

    • $1.32

  • 024

    circlip, inner (58mm)

    Part Number: 94520-58000

    ''


    KL - California Spec

    • $2.38
