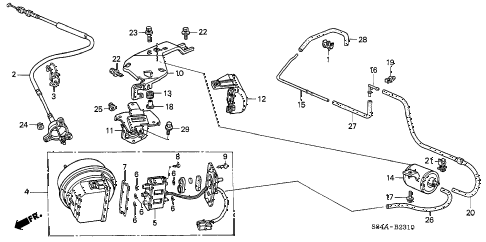

View large diagramHide diagramView diagramView printable catalog
  • 002

    wire, actuator

    • Part Number: 17880-PAA-A01

    '


    KL - California Spec

    • $25.25

  • 003

    stay, actuator wire

    • Part Number: 17932-PAA-A00

    '


    KL - California Spec

    • $16.65

  • 004

    actuator assy.

    • Part Number: 36520-PAA-A01

    '


    KL - California Spec

    • $194.83

  • 005

    valve

    • Part Number: 36521-PAA-A01

    '


    KL - California Spec

    Contact your dealer

  • 006

    o-ring (p7a)

    • Part Number: 36522-P0A-A01

    '


    KL - California Spec

    • $2.58

  • 007

    gasket

    • Part Number: 36523-P0A-A01

    '


    KL - California Spec

    • $5.67

  • 008

    screw, tapping (3x10)

    • Part Number: 36524-P0A-A01

    '


    KL - California Spec

    • $2.15

  • 009

    screw, tapping (4x16)

    • Part Number: 36525-P0A-A01

    '


    KL - California Spec

    • $2.52

  • 010

    stay, actuator

    • Part Number: 36613-PAA-A01

    '


    KL - California Spec

    • $23.82

  • 011

    cover, actuator

    • Part Number: 36614-PAA-A00

    '


    KL - California Spec

    • $27.18

  • 012

    cover, vent

    • Part Number: 36615-PAA-A00

    '


    KL - California Spec

    Contact your dealer

  • 013

    rubber, mounting

    • Part Number: 36619-PAA-A00

    '


    KL - California Spec

    • $2.00

  • 014

    tank, vacuum

    • Part Number: 36625-P0A-A01

    '


    KL - California Spec

    • $32.45

  • 015

    pipe, vacuum

    • Part Number: 36628-PAA-A00

    '


    KL - California Spec

    • $8.32

  • 016

    joint (two-way)(l-type)

    • Part Number: 36629-PAA-A00

    '


    KL - California Spec

    • $6.87

  • 017

    bolt, special flange (6x15)

    • Part Number: 90003-P0A-000

    '


    KL - California Spec

    • $3.77

  • 018

    collar, distance

    • Part Number: 90526-PAA-A00

    '


    KL - California Spec

    • $2.12

  • 019

    clip, vacuum pipe (4.5mm)

    • Part Number: 90601-PAA-A01

    '


    KL - California Spec

    • $5.55

  • 020

    tube, actuator

    • Part Number: 91442-PAA-A00

    '


    KL - California Spec

    • $6.22

  • 021

    clamp, tube

    • Part Number: 91597-PAA-A01

    '


    KL - California Spec

    • $4.42

  • 022

    bolt-washer (6x12)

    • Part Number: 93404-06012-07

    '


    KL - California Spec

    • $0.88

  • 023

    bolt-washer (6x25)

    • Part Number: 93404-06025-08

    '


    KL - California Spec

    • $1.02

  • 024

    nut, flange (5mm)

    • Part Number: 94050-05070

    '


    KL - California Spec

    • $0.62

  • 025

    nut, flange (6mm)

    • Part Number: 94050-06070

    '


    KL - California Spec

    • $0.83

  • 026

    bulk hose, vacuum (3.5x8000)

    • Part Number: 95005-35008-10M

    '


    KL - California Spec

    • $52.80

  • 029

    bolt, flange (6x16)

    • Part Number: 95701-06016-08

    '


    KL - California Spec

    • $0.88

Back to Top
wire, actuatorstay, actuator wireactuator assy.valveo-ring (p7a)o-ring (p7a)o-ring (p7a)o-ring (p7a)o-ring (p7a)gasketscrew, tapping (3x10)screw, tapping (4x16)stay, actuatorcover, actuatorcover, ventrubber, mountingtank, vacuumpipe, vacuumjoint (two-way)(l-type)bolt, special flange (6x15)collar, distanceclip, vacuum pipe (4.5mm)tube, actuatorclamp, tubebolt-washer (6x12)bolt-washer (6x12)bolt-washer (6x25)nut, flange (5mm)nut, flange (6mm)bulk hose, vacuum (3.5x8000)bolt, flange (6x16)
