RADIATOR HOSE
View large diagramHide diagramView diagramView printable catalogTranslate

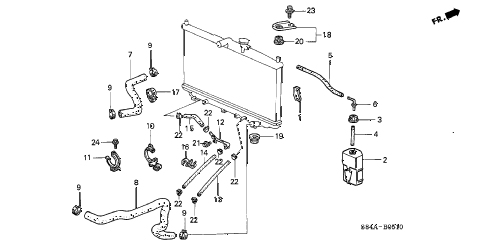

2002 accord SE(UL) 4 DOOR 4AT RADIATOR HOSE diagram

  • 002

    tank, reserve

    Part Number: 19101-PAA-A00

    '' ''


    KL - California Spec

    • $65.60

  • 003

    cap, reserve tank

    Part Number: 19102-PM5-A00

    '' ''


    KL - California Spec

    • $1.73

  • 004

    hose, reserve tank

    Part Number: 19103-PV1-A00

    '' ''


    KL - California Spec

    • $5.05

  • 005

    hose, reserve tank

    Part Number: 19103-P0A-000

    '' ''


    KL - California Spec

    • $4.50

  • 006

    joint, reserve tank

    Part Number: 19106-PM3-000

    '' ''


    KL - California Spec

    • $2.65

  • 007

    hose, water (upper)

    Part Number: 19501-PAA-A00

    '' ''


    KL - California Spec

    • $18.80

  • 008

    hose, water (lower)

    Part Number: 19502-PAA-A00

    '' ''


    KL - California Spec

    • $16.42

  • 009

    clip, hose (36.5mm) (chuo spring)

    Part Number: 19511-PH7-003

    '' ''


    KL - California Spec

    • $6.63

  • 010

    stay, hose (lower)

    Part Number: 19519-PAA-A00

    '' ''


    KL - California Spec

    • $65.37

  • 012

    pipe c (atf)

    Part Number: 25210-PAA-020

    '' ''


    KL - California Spec

    • $27.02

  • 013

    hose, oil cooler (355mm)

    Part Number: 25212-PAA-A00

    '' ''


    KL - California Spec

    • $21.85

  • 014

    hose (270mm) (atf)

    Part Number: 25213-PAA-000

    '' ''


    KL - California Spec

    • $18.52

  • 015

    hose (190mm) (atf)

    Part Number: 25214-PAA-000

    '' ''


    KL - California Spec

    • $13.00

  • 016

    clamp, hose (atf) (black)

    Part Number: 25216-PR3-000

    '' ''


    KL - California Spec

    • $5.22

  • 017

    clip, hose (atf) (black)

    Part Number: 25216-P72-003

    '' ''


    KL - California Spec

    • $5.07

  • 018

    bracket, radiator mount (upper)

    Part Number: 74171-S84-A00

    '' ''


    KL - California Spec

    • $60.52

  • 019

    cushion, radiator mounting (lower)

    Part Number: 74172-SM4-000

    '' ''


    KL - California Spec

    • $14.80

  • 020

    cushion, radiator mounting (upper)

    Part Number: 74173-SJ4-000

    '' ''


    KL - California Spec

    • $3.55

  • 021

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    '' ''


    KL - California Spec

    • $1.05

  • 022

    clip, oil pipe

    Part Number: 90635-PT0-802

    '' ''


    KL - California Spec

    • $1.40

  • 023

    bolt-washer (6x16)

    Part Number: 93404-06016-04

    '' ''


    KL - California Spec

    • $0.92

  • 023

    bolt-washer (6x16)

    Part Number: 93405-06016-04

    '' ''


    KL - California Spec

    • $1.05

  • 023

    bolt-washer (6x16)

    Part Number: 93404-06016-04

    '' ''


    KL - California Spec

    • $0.92

  • 023

    bolt-washer (6x16)

    Part Number: 93405-06016-04

    '' ''


    KL - California Spec

    • $1.05

  • 024

    bolt, flange (6x12)

    Part Number: 95701-06012-08

    '' ''


    KL - California Spec

    • $1.03
