REAR SEAT
View large diagramHide diagramView diagramView printable catalogTranslate

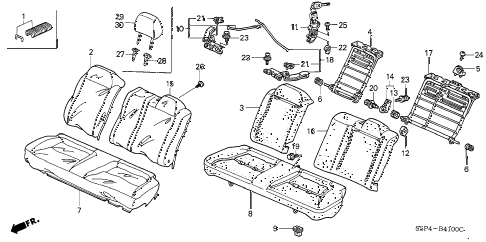

2002 civic EX(SIDE SRS) 2 DOOR 4AT REAR SEAT diagram

  • 001

    c-clip set, trim fastener (30 pieces)

    Part Number: 04810-SB3-000

    ''


    KA - US - 49 State Spec

    • $6.62

  • 002

    cover, r. rr. seat-back trim *nh167l*

    Part Number: 82121-S5P-A32ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    cover, r. rr. seat-back trim *yr169l*

    Part Number: 82121-S5P-A32ZB
    (MILD BEIGE)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 003

    pad assy., r. rr. seat-back

    Part Number: 82122-S5P-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    frame, r. rr. seat-back

    Part Number: 82126-S5A-A01

    ''


    KA - US - 49 State Spec

    • $180.82

  • 005

    guide, rr. center seat belt *yr169l*

    Part Number: 82127-S5A-003ZB
    (MILD BEIGE)

    ''


    KA - US - 49 State Spec

    • $3.00

  • 005

    guide, rr. center seat belt *nh167l*

    Part Number: 82127-S5A-003ZC
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $7.00

  • 006

    collar, rr. seat pivot

    Part Number: 82129-S5A-000

    ''


    KA - US - 49 State Spec

    • $2.18

  • 007

    cover, rr. seat cushion trim *nh167l*

    Part Number: 82131-S5P-A31ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    cover, rr. seat cushion trim *yr169l*

    Part Number: 82131-S5P-A31ZB
    (MILD BEIGE)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    pad & frame, rr. seat cushion

    Part Number: 82132-S5P-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    clip, rr. seat cushion

    Part Number: 82137-S5A-003

    ''


    KA - US - 49 State Spec

    • $1.43

  • 010

    lock assy., r. rr. seat

    Part Number: 82220-S5P-A01

    ''


    KA - US - 49 State Spec

    • $17.02

  • 011

    cylinder, rr. seat

    Part Number: 82226-S01-A01

    ''


    KA - US - 49 State Spec

    • $34.05

  • 012

    cover, rr. center pivot

    Part Number: 82291-S04-000

    ''


    KA - US - 49 State Spec

    • $10.93

  • 013

    collar, rr. center seat pivot

    Part Number: 82292-S04-000

    ''


    KA - US - 49 State Spec

    • $1.28

  • 014

    bracket, center seat pivot

    Part Number: 82295-S04-000

    ''


    KA - US - 49 State Spec

    • $3.38

  • 015

    cover, l. rr. seat-back trim *nh167l*

    Part Number: 82521-S5P-A32ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 015

    cover, l. rr. seat-back trim *yr169l*

    Part Number: 82521-S5P-A32ZB
    (MILD BEIGE)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 016

    pad assy., l. rr. seat-back

    Part Number: 82522-S5P-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 017

    frame, l. rr. seat-back

    Part Number: 82526-S5A-A01

    ''


    KA - US - 49 State Spec

    • $273.97

  • 018

    lock assy., l. rr. seat

    Part Number: 82620-S5P-A01

    ''


    KA - US - 49 State Spec

    • $15.20

  • 019

    bolt-washer (6x25)

    Part Number: 90128-SA7-000

    ''


    KA - US - 49 State Spec

    • $1.00

  • 020

    bolt-washer (6x20)

    Part Number: 90139-SH3-003

    ''


    KA - US - 49 State Spec

    • $4.95

  • 021

    snap

    Part Number: 91513-SR3-003

    ''


    KA - US - 49 State Spec

    • $2.10

  • 022

    grommet, screw (4mm)

    Part Number: 91647-S04-003

    ''


    KA - US - 49 State Spec

    • $0.70

  • 023

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    ''


    KA - US - 49 State Spec

    • $1.05

  • 024

    screw, pan (6x18)

    Part Number: 93500-06018-0A

    ''


    KA - US - 49 State Spec

    • $0.72

  • 025

    screw, tapping (4x16)

    Part Number: 93903-44480

    ''


    KA - US - 49 State Spec

    • $0.57

  • 026

    clip, mat (5mm) *nh120l*

    Part Number: 90667-SA7-003YG
    (STAR BLACK)

    ''


    KA - US - 49 State Spec

    • $3.85

  • 026

    clip, mat (5mm) *nh167l*

    Part Number: 90667-SA7-003YW
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $3.85
