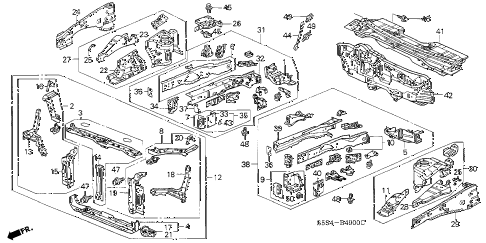

View large diagramHide diagramView diagramView printable catalog
  • 001

    outrigger set, r. fr. side

    • Part Number: 04600-S5T-E00ZZ

    '


    KA - US - 49 State Spec

    • $206.48

  • 002

    panel set, r. fr. bulkhead

    • Part Number: 04601-S5T-G01ZZ

    '


    KA - US - 49 State Spec

    • $150.48

  • 003

    frame set, fr. bulkhead (upper)

    • Part Number: 04602-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $211.40

  • 004

    crossmember set, fr. (lower)

    • Part Number: 04603-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $156.58

  • 005

    outrigger set, l. fr. side

    • Part Number: 04605-S5T-E00ZZ

    '


    KA - US - 49 State Spec

    • $206.48

  • 006

    plate set, r. fr. side (lower)

    • Part Number: 04606-S5T-E00ZZ

    '


    KA - US - 49 State Spec

    • $116.97

  • 007

    extension set, r. fr. side

    • Part Number: 04610-S5T-E00ZZ

    '


    KA - US - 49 State Spec

    • $99.05

  • 008

    panel set, l. fr. bulkhead

    • Part Number: 04611-S5T-G02ZZ

    '


    KA - US - 49 State Spec

    • $150.53

  • 009

    extension set, l. fr. side

    • Part Number: 04615-S5A-A21ZZ

    '


    KA - US - 49 State Spec

    • $27.05

  • 010

    plate set, l. fr. side (lower)

    • Part Number: 04616-S5T-E00ZZ

    '


    KA - US - 49 State Spec

    • $93.63

  • 011

    wheelhouse sub-set, l. fr.

    • Part Number: 04652-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $93.38

  • 012

    bulkhead, fr.

    • Part Number: 60400-S5T-G01ZZ

    '


    KA - US - 49 State Spec

    • $464.22

  • 013

    bulkhead, r. fr. side

    • Part Number: 60411-S6A-E00ZZ

    '


    KA - US - 49 State Spec

    • $33.35

  • 014

    stay, bulkhead center

    • Part Number: 60434-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $57.27

  • 015

    stay, r. fr. bulkhead side

    • Part Number: 60435-S6A-E00ZZ

    '


    KA - US - 49 State Spec

    • $65.47

  • 016

    bracket, r. fr. fender

    • Part Number: 60438-S6A-300ZZ

    '


    KA - US - 49 State Spec

    • $7.10

  • 017

    extension, r. crossmember (lower)

    • Part Number: 60443-S6A-E00ZZ

    '


    KA - US - 49 State Spec

    • $15.05

  • 018

    bulkhead, l. fr. side

    • Part Number: 60461-S6A-E00ZZ

    '


    KA - US - 49 State Spec

    • $61.02

  • 019

    stay, l. fr. bulkhead side

    • Part Number: 60485-S6A-E00ZZ

    '


    KA - US - 49 State Spec

    • $50.28

  • 020

    bracket, l. fr. fender

    • Part Number: 60488-S6A-300ZZ

    '


    KA - US - 49 State Spec

    • $7.10

  • 021

    extension, l. crossmember (lower)

    • Part Number: 60493-S6A-E00ZZ

    '


    KA - US - 49 State Spec

    • $12.88

  • 022

    wheelhouse, r. fr.

    • Part Number: 60611-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $43.78

  • 023

    extension, r. fr. wheelhouse (upper)

    • Part Number: 60613-S6A-E01ZZ

    '


    KA - US - 49 State Spec

    • $47.97

  • 024

    member, r. fr. wheelhouse (upper)

    • Part Number: 60617-S6A-310ZZ

    '


    KA - US - 49 State Spec

    • $47.97

  • 025

    bracket, fr. fender (rr)

    • Part Number: 60619-S6A-300ZZ

    '


    KA - US - 49 State Spec

    • $6.78

  • 026

    base, battery setting

    • Part Number: 60630-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $88.23

  • 027

    housing, r. fr. shock absorber

    • Part Number: 60650-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $923.31

  • 028

    extension, l. fr. wheelhouse (upper)

    • Part Number: 60713-S6A-E01ZZ

    '


    KA - US - 49 State Spec

    • $47.97

  • 029

    member, l. fr. wheelhouse (upper)

    • Part Number: 60717-S6A-310ZZ

    '


    KA - US - 49 State Spec

    • $47.85

  • 030

    housing, l. fr. shock absorber

    • Part Number: 60750-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $1,129.28

  • 031

    frame, r. fr. side

    • Part Number: 60810-S5T-A01ZZ

    '


    KA - US - 49 State Spec

    • $918.08

  • 032

    frame, r. fr. side

    • Part Number: 60811-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $115.03

  • 033

    bracket a, r. fr. sub-frame (fr)

    • Part Number: 60828-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $29.90

  • 034

    bracket b, r. fr. sub-frame (fr)

    • Part Number: 60829-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $29.90

  • 035

    bracket a, r. fr. sub-frame (fr)

    • Part Number: 60830-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $25.62

  • 036

    patch, fr. side frame (a)

    • Part Number: 60833-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $8.00

  • 037

    patch, fr. side frame (b)

    • Part Number: 60834-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $37.75

  • 038

    frame, l. fr. side

    • Part Number: 60910-S5T-A01ZZ

    '


    KA - US - 49 State Spec

    • $918.08

  • 039

    frame, l. fr. side

    • Part Number: 60911-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $115.03

  • 040

    bracket b, l. fr. sub-frame (fr)

    • Part Number: 60929-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $29.90

  • 041

    dashboard (upper)

    • Part Number: 61100-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $690.17

  • 042

    dashboard (lower)

    • Part Number: 61500-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $436.82

  • 043

    catch, reserve tank

    • Part Number: 70546-634-310ZZ

    '


    KA - US - 49 State Spec

    • $3.18

  • 044

    rod, brake pedal support

    • Part Number: 74232-S5A-000

    '


    KA - US - 49 State Spec

    • $7.90

  • 045

    bolt-washer (8x20)

    • Part Number: 90105-SV1-000

    '


    KA - US - 49 State Spec

    • $0.30

  • 046

    bolt, flange (6x15)

    • Part Number: 90108-S0A-003

    '


    KA - US - 49 State Spec

    • $0.30

  • 047

    bolt-washer (6x14)

    • Part Number: 93403-06014-08

    '


    KA - US - 49 State Spec

    • $0.93

  • 048

    bolt-washer (8x20)

    • Part Number: 93405-08020-08

    '


    KA - US - 49 State Spec

    • $1.13

  • 049

    bolt-washer (8x16)

    • Part Number: 93407-08016-08

    '


    KA - US - 49 State Spec

    • $1.13
