AT SERVO BODY
View large diagramHide diagramView diagramView printable catalogTranslate

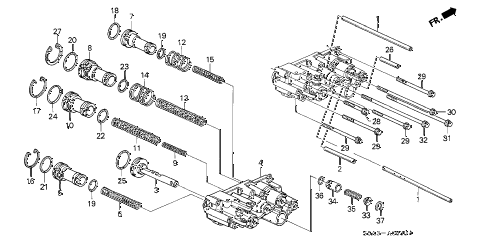

2002 civic DX(A/C) 4 DOOR 4AT AT SERVO BODY diagram

  • 001

    pipe, third clutch

    Part Number: 22743-PF0-000

    ''


    KA - US - 49 State Spec

    • $12.75

  • 002

    pipe (8x62)

    Part Number: 22748-PW4-000

    ''


    KA - US - 49 State Spec

    • $4.00

  • 003

    shaft, shift fork

    Part Number: 24271-PX4-000

    ''


    KA - US - 49 State Spec

    • $57.12

  • 004

    body, servo

    Part Number: 27410-PGA-000

    ''


    KA - US - 49 State Spec

    • $173.17

  • 005

    piston, low accumulator

    Part Number: 27561-P4R-000

    ''


    KA - US - 49 State Spec

    • $12.77

  • 006

    spring, low accumulator

    Part Number: 27562-P4R-000

    ''


    KA - US - 49 State Spec

    • $8.05

  • 007

    piston, second accumulator

    Part Number: 27570-PLX-000

    ''


    KA - US - 49 State Spec

    • $17.52

  • 008

    piston, third accumulator

    Part Number: 27574-PDM-000

    ''


    KA - US - 49 State Spec

    • $19.92

  • 009

    spring b, top accumulator

    Part Number: 27575-P4R-000

    ''


    KA - US - 49 State Spec

    • $3.30

  • 010

    piston, top accumulator

    Part Number: 27576-P4R-000

    ''


    KA - US - 49 State Spec

    • $12.77

  • 011

    spring a, top accumulator

    Part Number: 27577-PDM-000

    ''


    KA - US - 49 State Spec

    • $7.32

  • 013

    spring, third accumulator

    Part Number: 27583-PLX-000

    ''


    KA - US - 49 State Spec

    • $5.00

  • 015

    spring a, second accumulator

    Part Number: 27588-PLX-000

    ''


    KA - US - 49 State Spec

    • $4.07

  • 016

    circlip (inner) (31mm)

    Part Number: 90604-PX4-000

    ''


    KA - US - 49 State Spec

    • $2.75

  • 017

    circlip (inner) (36mm)

    Part Number: 90606-PX4-000

    ''


    KA - US - 49 State Spec

    • $2.75

  • 018

    o-ring (26.9x2.4) (nok)

    Part Number: 91302-PF0-003

    ''


    KA - US - 49 State Spec

    • $2.28

  • 019

    o-ring (18.3x2.4) (nok)

    Part Number: 91321-PF4-004

    ''


    KA - US - 49 State Spec

    • $2.27

  • 020

    o-ring (28.3x2.4) (nok)

    Part Number: 91324-PF4-004

    ''


    KA - US - 49 State Spec

    • $2.60

  • 021

    o-ring (24.4x2.4) (nok)

    Part Number: 91326-PF4-004

    ''


    KA - US - 49 State Spec

    • $2.60

  • 022

    o-ring (21.2x2.4) (arai)

    Part Number: 91331-PC9-003

    ''


    KA - US - 49 State Spec

    • $2.42

  • 023

    o-ring (20.2x2.4) (nok)

    Part Number: 91331-PL5-J00

    ''


    KA - US - 49 State Spec

    • $2.60

  • 024

    o-ring (29x2.4) (nok)

    Part Number: 91344-PC9-004

    ''


    KA - US - 49 State Spec

    • $2.78

  • 025

    o-ring (31x2.7) (arai)

    Part Number: 91344-580-000

    ''


    KA - US - 49 State Spec

    • $2.95

  • 026

    pin, dowel (8x40)

    Part Number: 91704-PF4-000

    ''


    KA - US - 49 State Spec

    • $4.23

  • 027

    circlip (inner) (35mm)

    Part Number: 94520-35100

    ''


    KA - US - 49 State Spec

    • $1.08

  • 028

    bolt, flange (6x45)

    Part Number: 95701-06045-08

    ''


    KA - US - 49 State Spec

    • $1.45

  • 029

    bolt, flange (6x85)

    Part Number: 95701-06085-08

    ''


    KA - US - 49 State Spec

    • $1.90

  • 030

    bolt, flange (6x120)

    Part Number: 95701-06120-08

    ''


    KA - US - 49 State Spec

    • $2.62

  • 031

    bolt, flange (6x130)

    Part Number: 95701-06130-08

    ''


    KA - US - 49 State Spec

    • $1.07

  • 032

    bolt, flange (6x140)

    Part Number: 95701-06140-08

    ''


    KA - US - 49 State Spec

    • $2.62

  • 033

    cover, third sub-accumulator

    Part Number: 27571-PDM-000

    ''


    KA - US - 49 State Spec

    • $6.05

  • 034

    piston, third sub-accumulator

    Part Number: 27578-PDM-000

    ''


    KA - US - 49 State Spec

    • $24.30

  • 035

    spring, third sub-accumulator

    Part Number: 27586-PDM-000

    ''


    KA - US - 49 State Spec

    • $4.65

  • 036

    o-ring (20.2x2.4) (nok)

    Part Number: 91331-PL5-J00

    ''


    KA - US - 49 State Spec

    • $2.60

  • 037

    circlip (inner) (26mm)

    Part Number: 94520-26000

    ''


    KA - US - 49 State Spec

    • $1.17
