MT DIFFERENTIAL GEAR
View large diagramHide diagramView diagramView printable catalogTranslate

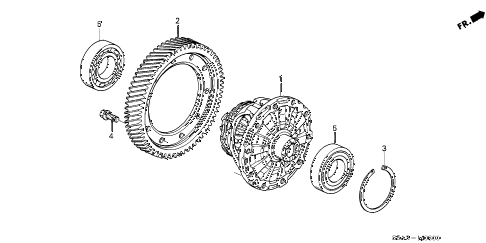

2002 civic DX(A/C) 4 DOOR 5MT MT DIFFERENTIAL GEAR diagram

  • 001

    differential

    Part Number: 41100-PLW-E00

    ''


    KA - US - 49 State Spec

    • $433.33

  • 002

    gear, final driven

    Part Number: 41233-PLW-B60

    ''


    KA - US - 49 State Spec

    • $270.62

  • 003

    shim a (80mm) (1.0)

    Part Number: 41441-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.20

  • 003

    shim b (80mm) (1.1)

    Part Number: 41442-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.20

  • 003

    shim c (80mm) (1.2)

    Part Number: 41443-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.20

  • 003

    shim d (80mm) (1.3)

    Part Number: 41444-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.20

  • 003

    shim e (80mm) (1.4)

    Part Number: 41445-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.20

  • 003

    shim f (80mm) (1.5)

    Part Number: 41446-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.28

  • 003

    shim g (80mm) (1.6)

    Part Number: 41447-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.28

  • 003

    shim h (80mm) (1.7)

    Part Number: 41448-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.28

  • 003

    shim j (80mm) (1.8)

    Part Number: 41449-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.28

  • 003

    shim k (80mm) (1.05)

    Part Number: 41450-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.28

  • 003

    shim l (80mm) (1.15)

    Part Number: 41451-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.28

  • 003

    shim m (80mm) (1.25)

    Part Number: 41452-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.28

  • 003

    shim n (80mm) (1.35)

    Part Number: 41453-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.28

  • 003

    shim p (80mm) (1.45)

    Part Number: 41454-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.28

  • 003

    shim q (80mm) (1.55)

    Part Number: 41455-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.28

  • 003

    shim r (80mm) (1.65)

    Part Number: 41456-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.28

  • 003

    shim s (80mm) (1.75)

    Part Number: 41457-PL3-B00

    ''


    KA - US - 49 State Spec

    • $11.28

  • 004

    bolt, flange (10mm)

    Part Number: 90015-634-010

    ''


    KA - US - 49 State Spec

    • $6.87

  • 005

    bearing, ball (tmb208c) (ntn)

    Part Number: 91005-PC9-008

    ''


    KA - US - 49 State Spec

    • $61.15
