CONTROL UNIT (CABIN)
View large diagramHide diagramView diagramView printable catalogTranslate

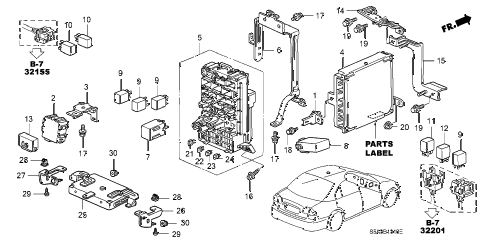

2002 civic GX(SIDE SRS) 4 DOOR CVT CONTROL UNIT (CABIN) diagram

  • 001

    stay m, engine wire harness

    Part Number: 32752-PMS-A00

    ''


    KA - US - 49 State Spec

    • $7.08

  • 002

    controller, auto cruise

    Part Number: 36700-S5W-A01

    ''


    KA - US - 49 State Spec

    • $197.33

  • 003

    bracket, auto cruise & security

    Part Number: 36701-S5A-A00

    ''


    KA - US - 49 State Spec

    • $3.58

  • 004

    control module, engine

    Part Number: 37820-PMS-A64

    ''


    KA - US - 49 State Spec

    • $1,222.40

  • 005

    box assy., fuse

    Part Number: 38200-S5A-A31

    ''


    KA - US - 49 State Spec

    • $242.07

  • 006

    bracket, fuse box

    Part Number: 38201-S5A-A01

    ''


    KA - US - 49 State Spec

    • $19.17

  • 007

    relay assy., turn signal and hazard (fr-3321) (mitsuba)

    Part Number: 38300-S5T-003

    ''


    KA - US - 49 State Spec

    • $43.37

  • 007

    relay assy., turn signal and hazard (trico)

    Part Number: 38300-S9V-A01

    ''


    KA - US - 49 State Spec

    • $33.67

  • 007

    relay assy., turn signal and hazard (fr-3309) (mitsuba)

    Part Number: 38300-SE3-013

    ''


    KA - US - 49 State Spec

    • $43.37

  • 009

    relay assy., power (4p) (micro iso) (omron)

    Part Number: 39794-S0K-A01

    ''


    KA - US - 49 State Spec

    • $7.73

  • 011

    relay assy., fuel pump (5p) (mitsuba)

    Part Number: 39794-S5A-003

    ''


    KA - US - 49 State Spec

    • $27.15

  • 012

    relay, pcm (4p)

    Part Number: 39794-S5A-901

    ''


    KA - US - 49 State Spec

    • $27.15

  • 014

    bracket, heater

    Part Number: 79101-S5D-A01

    ''


    KA - US - 49 State Spec

    • $8.17

  • 015

    bracket, pcm

    Part Number: 79820-S5A-A00

    ''


    KA - US - 49 State Spec

    • $12.92

  • 016

    bolt-washer (6x25)

    Part Number: 90137-SF1-000

    ''


    KA - US - 49 State Spec

    • $4.00

  • 017

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    ''


    KA - US - 49 State Spec

    • $1.08

  • 018

    bolt-washer (6x16)

    Part Number: 93404-06016-08

    ''


    KA - US - 49 State Spec

    • $0.95

  • 019

    bolt-washer (6x20)

    Part Number: 93405-06020-08

    ''


    KA - US - 49 State Spec

    • $1.08

  • 020

    nut, flange (6mm)

    Part Number: 94050-06080

    ''


    KA - US - 49 State Spec

    • $0.27

  • 021

    fuse, mini (7.5a)

    Part Number: 98200-40750

    ''


    KA - US - 49 State Spec

    • $0.85

  • 022

    fuse, mini (10a)

    Part Number: 98200-41000

    ''


    KA - US - 49 State Spec

    • $0.85

  • 023

    fuse, mini (15a)

    Part Number: 98200-41500

    ''


    KA - US - 49 State Spec

    • $0.85

  • 024

    fuse, mini (20a)

    Part Number: 98200-42000

    ''


    KA - US - 49 State Spec

    • $0.85

  • 025

    unit, injector driver

    Part Number: 37815-PMS-A01

    ''


    KA - US - 49 State Spec

    • $914.30

  • 026

    bracket, r. navigation

    Part Number: 39542-S5A-000

    ''


    KA - US - 49 State Spec

    • $14.17

  • 027

    bracket, l. navigation

    Part Number: 39547-S5A-000

    ''


    KA - US - 49 State Spec

    • $14.17

  • 028

    grommet, screw (5mm) (white)

    Part Number: 90662-671-003

    ''


    KA - US - 49 State Spec

    • $2.57

  • 029

    screw, tapping (5x10) (po)

    Part Number: 93911-25120

    ''


    KA - US - 49 State Spec

    • $0.52

  • 030

    nut, flange (6mm)

    Part Number: 94050-06070

    ''


    KA - US - 49 State Spec

    • $0.90

Back to Top
