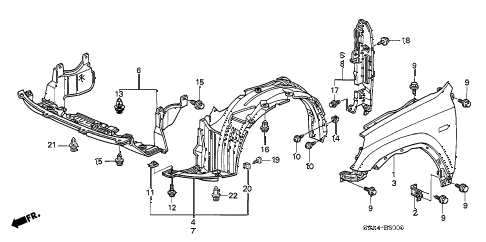

2002 cr-v EX(4WD) 5 DOOR 5MT FRONT FENDER diagram
Back to Top
panel, r. fr. fender (dot)stay, rr. fenderpanel, l. fr. fender (dot)fender assy., r. fr. (inner)fairing, r. fr. fendershield, fr. splashfender assy., l. fr. (inner)fairing, l. fr. fenderbolt, flange (6x15)bolt, flange (6x15)bolt, flange (6x15)bolt, flange (6x15)bolt, flange (6x15)screw-washer (5x20)screw-washer (5x20)screw-washer (5x25)screw-washer (5x25)screw-washer (5x20)screw-washer (5x20)screw-washer (5x25)screw-washer (5x25)nut, clip (6mm)bolt, fenderclip, splash shieldgrommet, screw (5mm)clip a, bumperclip a, bumperclip, fender (inner)clip b, fairingclip assy. (8mm)
