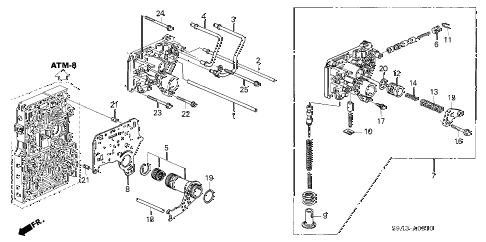

2002 cr-v LX(2WD) 5 DOOR 4AT AT REGULATOR BODY diagram
Back to Top
pipe (8x198)pipe (6x201)pipe set, jointshaft assy., statorcap (14mm)body assy., regulatorplate, regulator separatingcap, regulator springseat, valve springclip, cappiston, low accumulatorspring a, low accumulatorspring b, low accumulatorcover, regulator accumulatorbolt, flange (6x30)bolt, stopper (6mm)pin, dowel (8x80)o-ring (31x1.7) (arai)o-ring (21.2x2.4) (arai)pin, dowel (8x14)pin, dowel (8x14)bolt, flange (6x40)bolt, flange (6x55)bolt, flange (6x65)bolt, flange (6x80)
