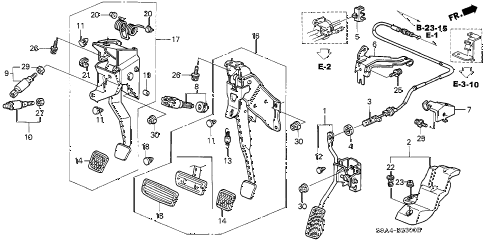

2002 cr-v LX(2WD) 5 DOOR 4AT PEDAL diagram

  • 001

    pedal assy., accelerator

    Part Number: 17800-S9A-A02

    '' ''


    KA - US - 49 State Spec

    • $47.87

  • 002

    stopper, accelerator stroke

    Part Number: 17818-S9A-A02

    '' ''


    KA - US - 49 State Spec

    • $14.90

  • 003

    wire, throttle

    Part Number: 17910-S9A-A04

    '' ''


    KA - US - 49 State Spec

    • $37.43

  • 004

    seal, throttle cable

    Part Number: 17921-SA4-730

    '' ''


    KA - US - 49 State Spec

    • $5.65

  • 005

    clip, throttle wire

    Part Number: 17926-S6M-003

    '' ''


    KA - US - 49 State Spec

    • $1.73

  • 006

    clamp, throttle wire

    Part Number: 17932-S9A-A00

    '' ''


    KA - US - 49 State Spec

    • $6.35

  • 007

    clamp, throttle wire

    Part Number: 17933-S9A-A00

    '' ''


    KA - US - 49 State Spec

    • $6.40

  • 011

    pad, pedal stopper

    Part Number: 46505-SA5-000

    '' ''


    KA - US - 49 State Spec

    • $2.53

  • 012

    pad, pedal stopper

    Part Number: 46505-SA7-000

    '' ''


    KA - US - 49 State Spec

    • $4.77

  • 013

    spring assy., pedal return

    Part Number: 46530-S5A-003

    '' ''


    KA - US - 49 State Spec

    • $3.67

  • 015

    cover, pedal

    Part Number: 46545-S84-A81

    '' ''


    KA - US - 49 State Spec

    • $15.20

  • 016

    pedal assy., brake

    Part Number: 46600-S9A-A81

    '' ''


    KA - US - 49 State Spec

    • $83.63

  • 022

    clip, footrest

    Part Number: 46992-SV4-003

    '' ''


    KA - US - 49 State Spec

    • $1.32

  • 023

    nut, paint cutting (6mm)

    Part Number: 90301-SV7-000

    '' ''


    KA - US - 49 State Spec

    • $3.15

  • 025

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    '' ''


    KA - US - 49 State Spec

    • $1.05

  • 026

    bolt-washer (8x16)

    Part Number: 93404-08016-08

    '' ''


    KA - US - 49 State Spec

    • $1.08

  • 030

    nut, flange (8mm)

    Part Number: 94050-08080

    '' ''


    KA - US - 49 State Spec

    • $0.27
