TAILGATE LINING

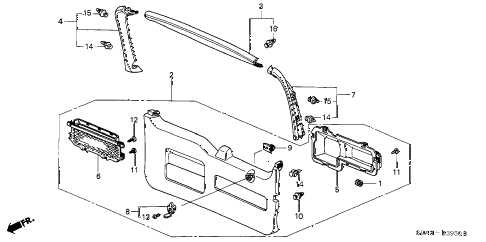

View large diagramHide diagramView diagramView printable catalogTranslate
2002 cr-v LX(2WD) 5 DOOR 4AT TAILGATE LINING diagram

  • 001

    cap, sunroof maintenance *yr202l*

    Part Number: 83201-SS0-000YD
    (DARK SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 001

    cap, sunroof maintenance *nh167l*

    Part Number: 83201-SS0-000ZB
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $4.98

  • 001

    cap, sunroof maintenance *yr202l*

    Part Number: 83201-SS0-000YD
    (DARK SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 001

    cap, sunroof maintenance *nh167l*

    Part Number: 83201-SS0-000ZB
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $4.98

  • 002

    lining assy., tailgate (lower)*nh167l*

    Part Number: 84431-S9A-003ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $294.25

  • 002

    lining assy., tailgate (lower)*yr202l*

    Part Number: 84431-S9A-003ZB
    (DARK SADDLE)

    '' ''


    KA - US - 49 State Spec

    • $294.25

  • 002

    lining assy., tailgate (lower)*nh167l*

    Part Number: 84431-SCA-003ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $207.95

  • 002

    lining assy., tailgate (lower)*yr202l*

    Part Number: 84431-SCA-003ZB
    (DARK SADDLE)

    '' ''


    KA - US - 49 State Spec

    • $207.95

  • 002

    lining assy., tailgate (lower)*nh167l*

    Part Number: 84431-S9A-003ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $294.25

  • 002

    lining assy., tailgate (lower)*yr202l*

    Part Number: 84431-S9A-003ZB
    (DARK SADDLE)

    '' ''


    KA - US - 49 State Spec

    • $294.25

  • 002

    lining assy., tailgate (lower)*nh167l*

    Part Number: 84431-SCA-003ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $207.95

  • 002

    lining assy., tailgate (lower)*yr202l*

    Part Number: 84431-SCA-003ZB
    (DARK SADDLE)

    '' ''


    KA - US - 49 State Spec

    • $207.95

  • 003

    garnish assy., tailgate (upper) *nh425l*

    Part Number: 84433-S9A-003ZA
    (LIGHT SEAGULL GRAY)

    '' ''


    KA - US - 49 State Spec

    • $39.20

  • 003

    garnish assy., tailgate (upper) *yr204l*

    Part Number: 84433-S9A-003ZB
    (LIGHT SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 003

    garnish assy., tailgate (upper) *nh425l*

    Part Number: 84433-SCA-003ZA
    (LIGHT SEAGULL GRAY)

    '' ''


    KA - US - 49 State Spec

    • $27.58

  • 003

    garnish assy., tailgate (upper) *yr204l*

    Part Number: 84433-SCA-003ZB
    (LIGHT SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 003

    garnish assy., tailgate (upper) *nh425l*

    Part Number: 84433-S9A-003ZA
    (LIGHT SEAGULL GRAY)

    '' ''


    KA - US - 49 State Spec

    • $39.20

  • 003

    garnish assy., tailgate (upper) *yr204l*

    Part Number: 84433-S9A-003ZB
    (LIGHT SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 003

    garnish assy., tailgate (upper) *nh425l*

    Part Number: 84433-SCA-003ZA
    (LIGHT SEAGULL GRAY)

    '' ''


    KA - US - 49 State Spec

    • $27.58

  • 003

    garnish assy., tailgate (upper) *yr204l*

    Part Number: 84433-SCA-003ZB
    (LIGHT SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    garnish assy., r. tailgate side *nh425l*

    Part Number: 84435-S9A-003ZA
    (LIGHT SEAGULL GRAY)

    '' ''


    KA - US - 49 State Spec

    • $27.20

  • 004

    garnish assy., r. tailgate side *yr204l*

    Part Number: 84435-S9A-003ZB
    (LIGHT SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    garnish assy., r. tailgate side *nh425l*

    Part Number: 84435-S9A-003ZA
    (LIGHT SEAGULL GRAY)

    '' ''


    KA - US - 49 State Spec

    • $27.20

  • 004

    garnish assy., r. tailgate side *yr204l*

    Part Number: 84435-S9A-003ZB
    (LIGHT SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    cover, pocket *nh167l*

    Part Number: 84442-S9A-003ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $30.10

  • 005

    cover, pocket *yr202l*

    Part Number: 84442-S9A-003ZB
    (DARK SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    cover, pocket *nh167l*

    Part Number: 84442-S9A-003ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $30.10

  • 005

    cover, pocket *yr202l*

    Part Number: 84442-S9A-003ZB
    (DARK SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    cover, net *nh167l*

    Part Number: 84443-S9A-003ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $61.20

  • 006

    cover, net *yr202l*

    Part Number: 84443-S9A-003ZB
    (DARK SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    cover, net *nh167l*

    Part Number: 84443-SCA-003ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $62.73

  • 006

    cover, net *nh167l*

    Part Number: 84443-S9A-003ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $61.20

  • 006

    cover, net *yr202l*

    Part Number: 84443-S9A-003ZB
    (DARK SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    cover, net *nh167l*

    Part Number: 84443-SCA-003ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $62.73

  • 007

    garnish assy., l. tailgate side *nh425l*

    Part Number: 84485-S9A-003ZA
    (LIGHT SEAGULL GRAY)

    '' ''


    KA - US - 49 State Spec

    • $27.20

  • 007

    garnish assy., l. tailgate side *yr204l*

    Part Number: 84485-S9A-003ZB
    (LIGHT SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    garnish assy., l. tailgate side *nh425l*

    Part Number: 84485-S9A-003ZA
    (LIGHT SEAGULL GRAY)

    '' ''


    KA - US - 49 State Spec

    • $27.20

  • 007

    garnish assy., l. tailgate side *yr204l*

    Part Number: 84485-S9A-003ZB
    (LIGHT SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    hook, convenient *nh167l*

    Part Number: 84628-S9A-003ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $6.73

  • 008

    hook, convenient *yr202l*

    Part Number: 84628-S9A-003ZB
    (DARK SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    hook, convenient *nh167l*

    Part Number: 84628-SCA-003ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $17.73

  • 008

    hook, convenient *yr202l*

    Part Number: 84628-SCA-003ZB
    (DARK SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    hook, convenient *nh167l*

    Part Number: 84628-S9A-003ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $6.73

  • 008

    hook, convenient *yr202l*

    Part Number: 84628-S9A-003ZB
    (DARK SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 008

    hook, convenient *nh167l*

    Part Number: 84628-SCA-003ZA
    (GRAPHITE BLACK)

    '' ''


    KA - US - 49 State Spec

    • $17.73

  • 008

    hook, convenient *yr202l*

    Part Number: 84628-SCA-003ZB
    (DARK SADDLE)

    '' ''


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    grommet, screw (4mm)

    Part Number: 90661-S7S-003

    '' ''


    KA - US - 49 State Spec

    • $2.60

  • 010

    clip, door lining (natural)

    Part Number: 91560-S84-A01

    '' '' '' ''


    KA - US - 49 State Spec

    • $2.47

  • 010

    clip, door lining (light blue)

    Part Number: 91560-S9A-A01

    '' '' '' '' '' '' '' ''


    KA - US - 49 State Spec

    • $2.47

  • 010

    clip, door lining (natural)

    Part Number: 91560-S84-A01

    '' '' '' ''


    KA - US - 49 State Spec

    • $2.47

  • 010

    clip, door lining (light blue)

    Part Number: 91560-S9A-A01

    '' '' '' '' '' '' '' ''


    KA - US - 49 State Spec

    • $2.47

  • 011

    screw, tapping (4x12)

    Part Number: 93913-14220

    '' ''


    KA - US - 49 State Spec

    • $0.65

  • 012

    screw, tapping (4x16) (po)

    Part Number: 93913-14420

    '' ''


    KA - US - 49 State Spec

    • $0.65

  • 013

    screw, tapping (4x30) (po)

    Part Number: 93913-14720

    '' ''


    KA - US - 49 State Spec

    • $0.68

  • 014

    clip, door lining (orange)

    Part Number: 91560-S6A-003

    '' ''


    KA - US - 49 State Spec

    • $3.12

  • 014

    clip, door lining (light blue)

    Part Number: 91560-S9A-A01

    '' '' '' '' '' '' '' ''


    KA - US - 49 State Spec

    • $2.47

  • 014

    clip, door lining (orange)

    Part Number: 91560-S6A-003

    '' ''


    KA - US - 49 State Spec

    • $3.12

  • 014

    clip, door lining (light blue)

    Part Number: 91560-S9A-A01

    '' '' '' '' '' '' '' ''


    KA - US - 49 State Spec

    • $2.47

  • 015

    clip, door lining (natural)

    Part Number: 91560-S84-A01

    '' '' '' ''


    KA - US - 49 State Spec

    • $2.47

  • 015

    clip, door lining (light blue)

    Part Number: 91560-S9A-A01

    '' '' '' '' '' '' '' ''


    KA - US - 49 State Spec

    • $2.47

  • 015

    clip, door lining (natural)

    Part Number: 91560-S84-A01

    '' '' '' ''


    KA - US - 49 State Spec

    • $2.47

  • 015

    clip, door lining (light blue)

    Part Number: 91560-S9A-A01

    '' '' '' '' '' '' '' ''


    KA - US - 49 State Spec

    • $2.47
