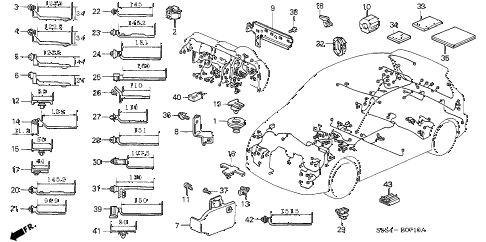

2003 civic SI(SIDE SRS) 3 DOOR 5MT HARNESS BAND - BRACKET diagram
Back to Top
grommet, wire harness (black)holder, corrugated (15mm) (dark blue)band, wire harness offset (20)(122.5mm) (black)band, wire harness offset (20)(122.5mm) (dark green)band, harness offset (30) (122.5mm) (yellow)band, harness offset (10) (122.5mm) (brown)bracket, wire harnessbracket, engine wire harness (a)bracket, connectorfilter, noisescrew-washer (5x16)clip, wire harness (50mm) (blue)(harness taping)clip, fr. bumper sideclip b, harness band (129.4mm)(dark brown)clip, wire harness (50mm) (gray)(harness taping)clip, offset (10) (50mm) (brown)clip, wire harness (44mm) (natural)clip, wire harness (44mm) (natural)(w/seal)clip, connector (natural)clip, harness band (145.2mm) (natural)clip, harness band (96.9mm) (natural)clip, harness band (145mm) (black)clip, harness band (145.2mm) (natural)(w/seal)clip, harness band (151mm) (brown)(w/seal)clip, band (160mm) (natural)clip, wire harness (110mm) (natural)clip, harness band (151mm) (brown)clip, connector (red)strap, harness (30) (107.5mm) (black)clip, wire harness (130mm) (natural)grommet, wire harness (25x45)cushion, wire harness (50x100)cushion, wire harness (50x50)plaster, wire harness (50x100)bolt-washer (6x12)screw, tapping (4x16) (po)screw, tapping (4x16) (po)clip, harness band (150mm) (natural)
