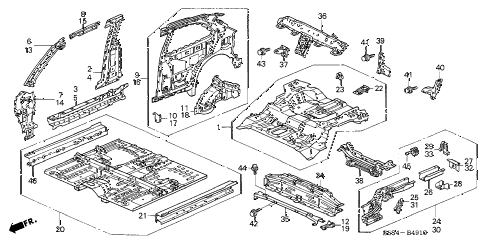

View large diagramHide diagramView diagramView printable catalog
  • 001

    panel set, rr. floor

    • Part Number: 04655-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $622.45

  • 002

    stiffener, r. center pillar

    • Part Number: 63210-S5T-305ZZ

    '


    KA - US - 49 State Spec

    • $944.17

  • 003

    reinforcement, r. side sill

    • Part Number: 63220-S5S-G00ZZ

    '


    KA - US - 49 State Spec

    • $349.02

  • 004

    stiffener, l. center pillar

    • Part Number: 63610-S5T-305ZZ

    '


    KA - US - 49 State Spec

    • $944.17

  • 005

    reinforcement, l. side sill

    • Part Number: 63620-S5S-G00ZZ

    '


    KA - US - 49 State Spec

    • $349.02

  • 006

    pillar, r. fr. (upper) (inner)

    • Part Number: 64121-S5S-E00ZZ

    '


    KA - US - 49 State Spec

    • $70.62

  • 007

    pillar, r. fr. (lower) (inner)

    • Part Number: 64130-S6D-G00ZZ

    '


    KA - US - 49 State Spec

    • $213.35

  • 008

    rail, r. roof side

    • Part Number: 64211-S5S-E00ZZ

    '


    KA - US - 49 State Spec

    • $61.17

  • 009

    panel, r. rr. inside

    • Part Number: 64300-S5T-A01ZZ

    '


    KA - US - 49 State Spec

    • $562.25

  • 010

    extension, r. rr. wheel arch

    • Part Number: 64321-S5S-E00ZZ

    '


    KA - US - 49 State Spec

    • $87.88

  • 011

    wheelhouse, r. rr.

    • Part Number: 64330-S5S-G00ZZ

    '


    KA - US - 49 State Spec

    • $367.78

  • 012

    bracket, r. middle floor beam

    • Part Number: 64343-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $79.47

  • 013

    pillar, l. fr. (upper) (inner)

    • Part Number: 64521-S5S-E00ZZ

    '


    KA - US - 49 State Spec

    • $44.68

  • 014

    pillar, l. fr. (lower) (inner)

    • Part Number: 64530-S6D-G00ZZ

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 015

    rail, l. roof side

    • Part Number: 64611-S5S-E00ZZ

    '


    KA - US - 49 State Spec

    • $62.80

  • 016

    panel, l. rr. inside

    • Part Number: 64700-S5T-A01ZZ

    '


    KA - US - 49 State Spec

    • $626.60

  • 017

    extension, l. rr. wheel arch

    • Part Number: 64721-S5S-E00ZZ

    '


    KA - US - 49 State Spec

    • $87.88

  • 018

    wheelhouse, l. rr.

    • Part Number: 64730-S5S-G00ZZ

    '


    KA - US - 49 State Spec

    • $367.78

  • 019

    bracket, l. middle floor beam

    • Part Number: 64743-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $79.47

  • 020

    floor, fr.

    • Part Number: 65100-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $1,319.23

  • 021

    sill, l. fr. inside

    • Part Number: 65190-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $209.78

  • 022

    stiffener, rr. jack

    • Part Number: 65513-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $38.75

  • 023

    bracket a, muffler mounting

    • Part Number: 65524-SR3-300ZZ

    '


    KA - US - 49 State Spec

    • $7.57

  • 024

    frame, r. rr.

    • Part Number: 65610-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $1,015.30

  • 025

    stiffener, r. rr. frame

    • Part Number: 65612-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $110.00

  • 026

    frame b, rr.

    • Part Number: 65617-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $43.15

  • 027

    plate, r. rr. frame end

    • Part Number: 65618-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $13.17

  • 028

    gusset, rr. frame end plate

    • Part Number: 65619-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $10.98

  • 029

    gusset, r. rr. panel

    • Part Number: 65624-S5S-G00ZZ

    '


    KA - US - 49 State Spec

    • $74.25

  • 030

    frame, l. rr.

    • Part Number: 65660-S5T-A01ZZ

    '


    KA - US - 49 State Spec

    • $1,015.30

  • 031

    stiffener, l. rr. frame

    • Part Number: 65662-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $110.00

  • 032

    plate, l. rr. frame end

    • Part Number: 65668-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $13.17

  • 033

    gusset, l. rr. panel

    • Part Number: 65674-S5S-G00ZZ

    '


    KA - US - 49 State Spec

    • $21.55

  • 034

    crossmember, middle floor

    • Part Number: 65700-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $625.20

  • 035

    beam, middle floor

    • Part Number: 65710-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $425.13

  • 036

    crossmember, rr. floor (upper)

    • Part Number: 65740-S5T-A00ZZ

    '


    KA - US - 49 State Spec

    • $360.68

  • 037

    pivot, rr. seat

    • Part Number: 65742-S5S-G00ZZ

    '


    KA - US - 49 State Spec

    • $25.05

  • 038

    crossmember, rr. floor

    • Part Number: 65750-S5A-E10ZZ

    '


    KA - US - 49 State Spec

    • $173.73

  • 039

    gusset, r. rr. bulkhead

    • Part Number: 66521-S6D-E00ZZ

    '


    KA - US - 49 State Spec

    • $164.42

  • 040

    gusset, l. rr. bulkhead

    • Part Number: 66721-S6D-E00ZZ

    '


    KA - US - 49 State Spec

    • $96.88

  • 041

    bolt, flange (6x15)

    • Part Number: 90108-S0A-003

    '


    KA - US - 49 State Spec

    • $0.30

  • 042

    bolt, flange (10x60)

    • Part Number: 90167-ST7-000

    '


    KA - US - 49 State Spec

    • $3.98

  • 043

    bolt-washer (6x16)

    • Part Number: 93405-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 044

    bolt-washer (10x20)

    • Part Number: 93406-10020-08

    '


    KA - US - 49 State Spec

    • $1.20

  • 045

    bracket, muffler mounting

    • Part Number: 65616-S5S-G00ZZ

    '


    KA - US - 49 State Spec

    • $23.05

  • 046

    sill, r. fr. inside

    • Part Number: 65141-S5T-G00ZZ

    '


    KA - US - 49 State Spec

    • $156.15
