STARTER MOTOR (DENSO)
View large diagramHide diagramView diagramView printable catalogTranslate

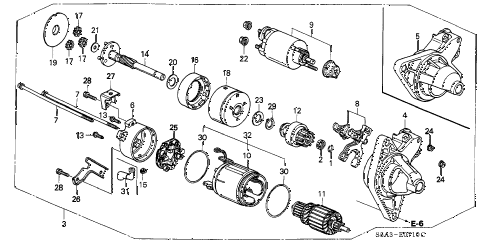

2003 civic DX(A/C) 4 DOOR 5MT STARTER MOTOR (DENSO) diagram

  • 001

    ring, snap (denso)

    Part Number: 30201-PH9-004

    ''


    KA - US - 49 State Spec

    • $2.08

  • 002

    collar, clutch stop

    Part Number: 30202-RYE-003

    ''


    KA - US - 49 State Spec

    • $5.17

  • 003

    starter, core id (9742809-032)(228000-9642) (rmd)

    Part Number: 06312-PLR-505RM

    ''


    KA - US - 49 State Spec

    • $199.10

  • 003

    starter motor assy. (dsdeu) (denso)

    Part Number: 31200-PLR-A02

    ''


    KA - US - 49 State Spec

    • $284.77

  • 004

    housing, drive side

    Part Number: 31201-PLR-A01

    ''


    KA - US - 49 State Spec

    • $146.53

  • 006

    end frame, commutator

    Part Number: 31202-PLR-A02

    ''


    KA - US - 49 State Spec

    • $57.52

  • 007

    bolt, through (denso)

    Part Number: 31202-PM3-J01

    ''


    KA - US - 49 State Spec

    • $3.55

  • 008

    lever, pinion drive

    Part Number: 31203-PCA-003

    ''


    KA - US - 49 State Spec

    • $25.82

  • 009

    switch, magnetic

    Part Number: 31204-PLR-A01

    ''


    KA - US - 49 State Spec

    • $114.18

  • 011

    armature

    Part Number: 31206-P3F-003

    ''


    KA - US - 49 State Spec

    • $451.55

  • 012

    clutch assy., overrunning

    Part Number: 31207-P3F-003

    ''


    KA - US - 49 State Spec

    • $329.40

  • 013

    screw, pan (4mm)

    Part Number: 31208-P3F-003

    ''


    KA - US - 49 State Spec

    • $2.48

  • 014

    shaft, drive

    Part Number: 31213-P3F-003

    ''


    KA - US - 49 State Spec

    • $280.10

  • 016

    gear assy. (inner)

    Part Number: 31214-P3F-003

    ''


    KA - US - 49 State Spec

    • $63.78

  • 017

    gear, planetary

    Part Number: 31215-P3F-003

    ''


    KA - US - 49 State Spec

    • $32.65

  • 018

    shock absorber

    Part Number: 31216-P3F-003

    ''


    KA - US - 49 State Spec

    • $18.70

  • 019

    plate, seal

    Part Number: 31217-P3F-003

    ''


    KA - US - 49 State Spec

    • $7.28

  • 020

    washer a

    Part Number: 31218-P3F-003

    ''


    KA - US - 49 State Spec

    • $4.37

  • 021

    washer b

    Part Number: 31219-P3F-003

    ''


    KA - US - 49 State Spec

    • $4.37

  • 022

    nut, hex. (8mm)

    Part Number: 31220-PH9-004

    ''


    KA - US - 49 State Spec

    • $2.58

  • 023

    washer c

    Part Number: 31220-P3F-003

    ''


    KA - US - 49 State Spec

    • $5.47

  • 024

    nut, hex. (6mm)

    Part Number: 31223-PA0-006

    ''


    KA - US - 49 State Spec

    • $2.73

  • 025

    plate, brush holder

    Part Number: 31231-P3F-003

    ''


    KA - US - 49 State Spec

    • $63.87

  • 026

    stay, engine harness

    Part Number: 31291-PLR-A01

    ''


    KA - US - 49 State Spec

    • $76.10

  • 028

    bolt-washer

    Part Number: 31292-PLR-A01

    ''


    KA - US - 49 State Spec

    • $29.20

  • 029

    circlip (outer) (15mm)

    Part Number: 94510-15000

    ''


    KA - US - 49 State Spec

    • $0.83

  • 030

    o-ring

    Part Number: 31228-PLR-A01

    ''


    KA - US - 49 State Spec

    • $3.78

  • 031

    tube

    Part Number: 31258-P5G-003

    ''


    KA - US - 49 State Spec

    • $3.38

  • 032

    yoke set

    Part Number: 31205-RTA-003

    ''


    KA - US - 49 State Spec

    • $211.77
