P.S. GEAR BOX COMPONENTS
View large diagramHide diagramView diagramView printable catalogTranslate

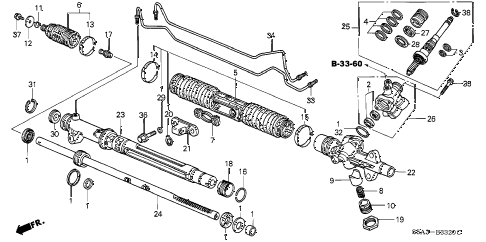

2003 civic DX(SIDE SRS) 4 DOOR 5MT P.S. GEAR BOX COMPONENTS diagram

  • 001

    seal kit a, power steering (rotary valve)

    Part Number: 06531-S5D-A02

    '' '' ''


    KA - US - 49 State Spec

    • $96.93

  • 002

    oil seal set, rotary valve

    Part Number: 06532-S50-003

    '' '' ''


    KA - US - 49 State Spec

    • $13.19

  • 003

    ring set, power steering seal (rotary valve)

    Part Number: 06534-S84-A01

    '' '' ''


    KA - US - 49 State Spec

    • $4.67

  • 004

    ring set, power steering seal (rotary valve)

    Part Number: 06535-S50-003

    '' '' ''


    KA - US - 49 State Spec

    • $5.72

  • 005

    boot set

    Part Number: 06536-S5A-H01

    '' '' ''


    KA - US - 49 State Spec

    • $16.73

  • 006

    boot set b

    Part Number: 06537-S5A-H01

    '' '' ''


    KA - US - 49 State Spec

    • $4.23

  • 007

    slider

    Part Number: 06538-S5A-H01

    '' '' ''


    KA - US - 49 State Spec

    • $22.63

  • 008

    spring, rack guide pressure

    Part Number: 53413-S04-G51

    '' '' ''


    KA - US - 49 State Spec

    • $3.23

  • 009

    guide, steering rack

    Part Number: 53416-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $23.48

  • 010

    screw, rack guide

    Part Number: 53414-S04-003

    '' '' ''


    KA - US - 49 State Spec

    • $13.05

  • 011

    clip, steering tie rod

    Part Number: 53434-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $1.10

  • 012

    guard, boot

    Part Number: 53446-S5A-013

    '' '' ''


    KA - US - 49 State Spec

    • $5.75

  • 013

    band c, bellows

    Part Number: 53447-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $3.42

  • 014

    band b, bellows

    Part Number: 53448-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $3.93

  • 015

    band, bellows

    Part Number: 53449-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $3.53

  • 016

    ring b, stopper

    Part Number: 53455-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $1.33

  • 017

    plug, rack end

    Part Number: 53456-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $7.28

  • 018

    lock, screw

    Part Number: 53457-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $13.35

  • 019

    nut, lock

    Part Number: 53458-S50-003

    '' '' ''


    KA - US - 49 State Spec

    • $4.70

  • 020

    washer, lock

    Part Number: 53535-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $4.73

  • 021

    bracket

    Part Number: 53604-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $59.33

  • 022

    housing, steering rack

    Part Number: 53608-S5D-A02

    '' '' ''


    KA - US - 49 State Spec

    • $222.55

  • 023

    cylinder

    Part Number: 53611-S5D-A02

    '' '' ''


    KA - US - 49 State Spec

    • $251.83

  • 024

    rack, steering

    Part Number: 53626-S5D-A03

    '' '' ''


    KA - US - 49 State Spec

    • $186.08

  • 025

    valve sub-assy., steering

    Part Number: 53641-S5A-F01

    '' '' ''


    KA - US - 49 State Spec

    • $330.40

  • 026

    housing, valve

    Part Number: 53645-S5A-F01

    '' '' ''


    KA - US - 49 State Spec

    • $145.65

  • 027

    oil seal (27x38x5.5) (showa)

    Part Number: 53660-S50-003

    '' '' ''


    KA - US - 49 State Spec

    • $6.78

  • 028

    washer, wave (showa)

    Part Number: 53661-S50-003

    '' '' ''


    KA - US - 49 State Spec

    • $3.97

  • 029

    o-ring (11.5x1.5)

    Part Number: 53662-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $0.53

  • 030

    ring, back-up

    Part Number: 53663-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $6.20

  • 031

    circlip (inner) (42)

    Part Number: 53664-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $1.45

  • 032

    o-ring (41.5x2) (showa)

    Part Number: 53666-S50-003

    '' '' ''


    KA - US - 49 State Spec

    • $0.98

  • 033

    pipe a, cylinder

    Part Number: 53670-S5D-A01

    '' '' ''


    KA - US - 49 State Spec

    • $12.32

  • 034

    pipe b, cylinder

    Part Number: 53671-S5D-A01

    '' '' ''


    KA - US - 49 State Spec

    • $10.77

  • 035

    bolt, flange (8x28)

    Part Number: 90105-S50-003

    '' '' ''


    KA - US - 49 State Spec

    • $0.65

  • 036

    bolt, flange (12x40)

    Part Number: 90455-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $3.80

  • 037

    bolt, flange (8x12)

    Part Number: 90456-S5A-003

    '' '' ''


    KA - US - 49 State Spec

    • $0.68

  • 038

    circlip (outer) (20mm)

    Part Number: 90601-S50-003

    '' '' ''


    KA - US - 49 State Spec

    • $2.80
