CONTROL UNIT (ENGINE ROOM)
View large diagramHide diagramView diagramView printable catalogTranslate

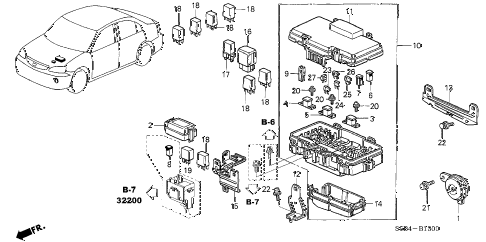

2003 civic MX(HYBRID) 4 DOOR 5MT CONTROL UNIT (ENGINE ROOM) diagram

  • 001

    horn assy (low)

    Part Number: 38100-S04-A02

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $40.60

  • 002

    cover, multi relay

    Part Number: 38182-S5B-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $7.75

  • 003

    fuse, block (50a)

    Part Number: 38213-SM4-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $7.50

  • 004

    fuse, block (60a)

    Part Number: 38214-SS1-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $11.02

  • 005

    fuse, block (80a)

    Part Number: 38216-SM4-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $7.50

  • 006

    fuse, block (30a)

    Part Number: 38231-S04-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.98

  • 007

    fuse, block (40a)

    Part Number: 38231-S04-961

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.98

  • 008

    fuse, block (20a)

    Part Number: 38231-S10-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $5.37

  • 009

    puller, mini fuse (sumitomo)

    Part Number: 38235-S04-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.70

  • 010

    box assy., relay

    Part Number: 38250-S5B-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $234.45

  • 011

    cover (upper)

    Part Number: 38251-S5B-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $13.30

  • 012

    bracket a, relay box

    Part Number: 38251-S5B-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $12.55

  • 013

    bracket b, relay box

    Part Number: 38252-S5B-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $12.55

  • 014

    cover (lower)

    Part Number: 38252-S5B-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $12.13

  • 015

    bracket, relay box side

    Part Number: 38254-S5B-010

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $18.62

  • 016

    relay assy., power (4p no 305)(056700-9260) (denso)

    Part Number: 39792-SL4-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $39.82

  • 017

    relay assy., power (4p) (056700-7250) (denso)

    Part Number: 39794-SE0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $52.48

  • 017

    relay assy., power (4p) (rc-2225) (black) (mitsuba)

    Part Number: 39794-SL0-004

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $52.48

  • 017

    relay assy., power (4p) (rc-2226) (brown) (mitsuba)

    Part Number: 39794-SL0-J01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $52.48

  • 017

    relay assy., power (4p) (056700-7250) (denso)

    Part Number: 39794-SE0-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $52.48

  • 017

    relay assy., power (4p) (rc-2225) (black) (mitsuba)

    Part Number: 39794-SL0-004

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $52.48

  • 017

    relay assy., power (4p) (rc-2226) (brown) (mitsuba)

    Part Number: 39794-SL0-J01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $52.48

  • 018

    relay assy., power (4p) (micro iso) (matsushita)

    Part Number: 39794-S04-004

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $25.10

  • 018

    relay assy., power (4p) (micro iso) (matsushita)

    Part Number: 39794-S04-014

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $25.10

  • 018

    relay assy., power (4p) (micro iso) (omron)

    Part Number: 39794-S0K-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $7.45

  • 018

    relay assy., power (4p) (micro iso) (matsushita)

    Part Number: 39794-S04-004

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $25.10

  • 018

    relay assy., power (4p) (micro iso) (matsushita)

    Part Number: 39794-S04-014

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $25.10

  • 018

    relay assy., power (4p) (micro iso) (omron)

    Part Number: 39794-S0K-A01

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $7.45

  • 019

    relay assy., fuel pump (5p) (mitsuba)

    Part Number: 39794-S5A-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $26.13

  • 020

    screw-washer (5x12)

    Part Number: 90129-SP0-000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $2.03

  • 021

    bolt, ground (8x16)

    Part Number: 90150-S84-003

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.93

  • 022

    bolt-washer (6x12)

    Part Number: 93405-06012-08

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.97

  • 023

    fuse, mini (7.5a)

    Part Number: 98200-40750

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.82

  • 024

    fuse, mini (10a)

    Part Number: 98200-41000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.82

  • 025

    fuse, mini (15a)

    Part Number: 98200-41500

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.82

  • 026

    fuse, mini (20a)

    Part Number: 98200-42000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.82

  • 027

    fuse, mini (30a)

    Part Number: 98200-43000

    ''


    KA - US - 49 State Spec
    KL - California Spec

    • $0.82
