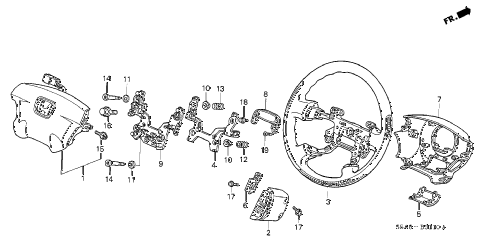

STEERING WHEEL (SRS) - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: airbag assy., driver nh167l (takata) Part Number: 06770-S5A-A80ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $763.11

Ref #: 002	Honda Part: switch assy., auto cruise set nh1l Part Number: 36770-S5A-A01ZA Standard Qty.: 001 Color: (BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $28.93

Ref #: 003	Honda Part: grip nh167l Part Number: 78501-S5A-N61ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $393.10

Ref #: 004	Honda Part: plate, horn Part Number: 78502-S5A-A61 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $8.92

Ref #: 005	Honda Part: cap, body cover nh167l Part Number: 78512-S5A-N61ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $3.15

Ref #: 006	Honda Part: plate set Part Number: 78517-S5A-N81 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $7.03

Ref #: 007	Honda Part: cover, body nh167l Part Number: 78518-S5A-N81ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $17.15

Ref #: 008	Honda Part: damper assy., anti vibration Part Number: 78520-S5A-N01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $49.32

Ref #: 009	Honda Part: cover, horn plate Part Number: 78521-S5A-N61 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $9.30

Ref #: 010	Honda Part: spacer Part Number: 78522-SZ3-A51 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.88

Ref #: 011	Honda Part: washer Part Number: 78522-S3A-N81 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.28

Ref #: 012	Honda Part: spring, coil Part Number: 78523-SZ3-A51 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.50

Ref #: 013	Honda Part: spring, coil Part Number: 78523-SZ3-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $1.60

Ref #: 014	Honda Part: screw, slide Part Number: 78524-S3Y-N81 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.70

Ref #: 015	Honda Part: bolt, hex. (6x12) Part Number: 90134-S04-A81 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.20

Ref #: 016	Honda Part: bolt, handlebar Part Number: 90161-SV4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $4.88

Ref #: 017	Honda Part: screw-washer (4x12) Part Number: 90173-SL4-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $2.00

Ref #: 018	Honda Part: screw-washer (5x16) Part Number: 93892-05016-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.65

Ref #: 019	Honda Part: screw, tapping (4x16) (po) Part Number: 93913-14420 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	Retail price: $0.53

Ref #: 001	Honda Part: airbag assy., driver nh167l (takata) Part Number: 06770-S5A-A80ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$763.11

Ref #: 002	Honda Part: switch assy., auto cruise set nh1l Part Number: 36770-S5A-A01ZA Standard Qty.: 001 Color: (BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$28.93

Ref #: 003	Honda Part: grip nh167l Part Number: 78501-S5A-N61ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$393.10

Ref #: 004	Honda Part: plate, horn Part Number: 78502-S5A-A61 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$8.92

Ref #: 005	Honda Part: cap, body cover nh167l Part Number: 78512-S5A-N61ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$3.15

Ref #: 006	Honda Part: plate set Part Number: 78517-S5A-N81 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$7.03

Ref #: 007	Honda Part: cover, body nh167l Part Number: 78518-S5A-N81ZA Standard Qty.: 001 Color: (GRAPHITE BLACK) Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$17.15

Ref #: 008	Honda Part: damper assy., anti vibration Part Number: 78520-S5A-N01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$49.32

Ref #: 009	Honda Part: cover, horn plate Part Number: 78521-S5A-N61 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$9.30

Ref #: 010	Honda Part: spacer Part Number: 78522-SZ3-A51 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.88

Ref #: 011	Honda Part: washer Part Number: 78522-S3A-N81 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.28

Ref #: 012	Honda Part: spring, coil Part Number: 78523-SZ3-A51 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.50

Ref #: 013	Honda Part: spring, coil Part Number: 78523-SZ3-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$1.60

Ref #: 014	Honda Part: screw, slide Part Number: 78524-S3Y-N81 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.70

Ref #: 015	Honda Part: bolt, hex. (6x12) Part Number: 90134-S04-A81 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.20

Ref #: 016	Honda Part: bolt, handlebar Part Number: 90161-SV4-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$4.88

Ref #: 017	Honda Part: screw-washer (4x12) Part Number: 90173-SL4-003 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$2.00

Ref #: 018	Honda Part: screw-washer (5x16) Part Number: 93892-05016-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.65

Ref #: 019	Honda Part: screw, tapping (4x16) (po) Part Number: 93913-14420 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec KL - California Spec	$0.53
