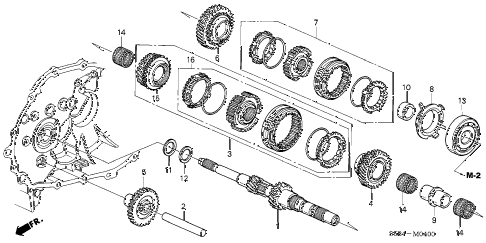

View large diagramHide diagramView diagramView printable catalog
  • 001

    mainshaft

    • Part Number: 23211-PZB-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $305.57

  • 002

    shaft, reverse gear

    • Part Number: 23261-PL3-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $33.57

  • 003

    gear set, mainshaft third

    • Part Number: 23443-PZB-315

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $285.00

  • 004

    gear, mainshaft fourth

    • Part Number: 23450-PZB-B00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $97.73

  • 005

    gear, reverse idle

    • Part Number: 23540-PLW-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $62.88

  • 006

    gear, mainshaft fifth

    • Part Number: 23581-PWL-C00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $82.20

  • 007

    sleeve set, synchronizer (5)

    • Part Number: 23626-PLW-305

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $211.72

  • 008

    ring, taper cone

    • Part Number: 23647-PLW-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $35.98

  • 009

    collar, distance (29x35x52)

    • Part Number: 23915-PHR-010

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $27.67

  • 010

    collar, distance (26x35x12)

    • Part Number: 23916-PLW-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $7.98

  • 011

    washer, spring (36mm)

    • Part Number: 23927-PL3-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $5.47

  • 012

    washer (26mm)

    • Part Number: 23928-PL3-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $6.25

  • 013

    bearing, angular ball

    • Part Number: 91004-PLW-B01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $48.08

  • 014

    bearing, needle (35x39x24)

    • Part Number: 91105-PHR-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $15.17

Back to Top
mainshaftshaft, reverse geargear set, mainshaft thirdgear, mainshaft fourthgear, reverse idlegear, mainshaft fifthsleeve set, synchronizer (5)ring, taper conecollar, distance (29x35x52)collar, distance (26x35x12)washer, spring (36mm)washer (26mm)bearing, angular ballbearing, needle (35x39x24)bearing, needle (35x39x24)bearing, needle (35x39x24)
