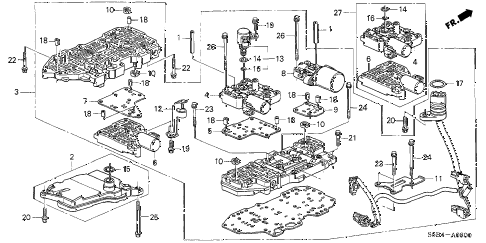

View large diagramHide diagramView diagramView printable catalog
  • 001

    pipe (8x40)

    • Part Number: 22743-PW4-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.00

  • 002

    strainer, transmission (atf)

    • Part Number: 25420-PHT-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $68.38

  • 003

    valve body assy.

    • Part Number: 27000-PZC-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1,269.92

  • 004

    body assy., driven pulley control valve

    • Part Number: 27200-PZC-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $220.37

  • 005

    plate, driven control separating

    • Part Number: 27212-PZC-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $10.15

  • 006

    body assy., drive pulley control valve

    • Part Number: 27500-PZC-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $224.15

  • 007

    plate, drive pulley control separating

    • Part Number: 27512-PZC-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $10.15

  • 008

    body assy., start clutch control valve

    • Part Number: 27600-PZC-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $186.78

  • 009

    plate, start clutch control separating

    • Part Number: 27612-PZC-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $6.10

  • 010

    filter, secondary body

    • Part Number: 27750-P4V-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $6.68

  • 011

    clamp a, solenoid harness

    • Part Number: 28365-PHT-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $4.03

  • 012

    clamp b, solenoid harness

    • Part Number: 28366-PLY-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $3.93

  • 013

    solenoid assy.

    • Part Number: 28400-PZC-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $104.73

  • 014

    o-ring (7.6x1.9) (keihin)

    • Part Number: 91301-P6H-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.05

  • 015

    o-ring (19.20x1.90) (nok)

    • Part Number: 91301-P7X-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.12

  • 016

    o-ring (11.7x1.9) (keihin)

    • Part Number: 91303-P6H-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.05

  • 017

    o-ring (27.5x2.4)

    • Part Number: 91329-P4V-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.88

  • 018

    pin, dowel (8x14)

    • Part Number: 94301-08140

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.17

  • 019

    bolt, flange (6x14)

    • Part Number: 95701-06014-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.88

  • 020

    bolt, flange (6x20)

    • Part Number: 95701-06020-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.22

  • 021

    bolt, flange (6x25)

    • Part Number: 95701-06025-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.98

  • 022

    bolt, flange (6x35)

    • Part Number: 95701-06035-00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.03

  • 023

    bolt, flange (6x40)

    • Part Number: 95701-06040-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.03

  • 024

    bolt, flange (6x65)

    • Part Number: 95701-06065-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.30

  • 025

    bolt, flange (6x75)

    • Part Number: 95701-06075-00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.30

  • 026

    bolt, flange (6x90)

    • Part Number: 95701-06090-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.62

  • 027

    body set, control valve

    • Part Number: 27010-PZC-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $418.88

Back to Top
