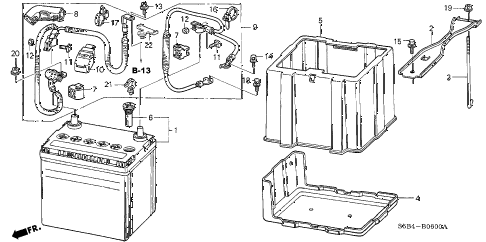

2003 civic MX(HYBRID) 4 DOOR CVT BATTERY diagram
Back to Top
battery (51r/500amp85)plate, battery settingbolt, battery setting (195mm)box, batterycover, batteryplug, vent (mf) (yuasa)plug, vent (mf) (furukawa)plug, vent (mf) (yuasa)plug, vent (mf) (furukawa)holder, corrugated (10mm) (dark blue)holder, corrugated (10mm) (dark blue)holder d, engine harnesscable assy., startercover, battery terminalbolt, battery terminalbolt, battery terminalnut, battery terminalnut, battery terminalbolt (6x15)bolt, ground (6x12)bolt-washer (6x16)clip a, harness band (129.4mm)(dark gray)band, harness (120mm) (black)bolt, hex. (6x8)nut, flange (6mm)nut-washer (8mm)clip, harness band (145mm) (black)
