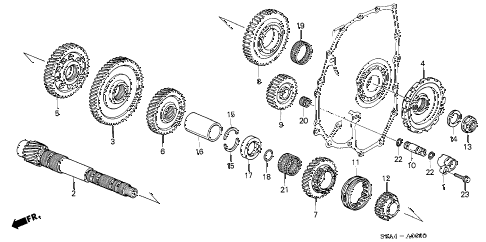

2003 cr-v LX(2WD) 5 DOOR 4AT AT COUNTERSHAFT diagram
Back to Top
holder, idle shaftcountershaftgear, countershaft lowgear, parkinggear, countershaft secondgear, countershaft thirdgear, countershaft fourthgear, countershaft reversegear, reverse idleshaft, reverse idle gearselector, reverse gearhub, selectornut, flange (24mm) (left hand thread)washer, spring (24mm)cotter (31mm)cotter (31mm)collar (37x41x82.8)collar (35x47x7.8)ring, snap (35mm)bearing, needle (40x46x14.5) (koyo)bearing, needle (15x20x16) (ntn)bearing, needle (35x41x25.8) (ntn)o-ring (8.1x4) (nok)o-ring (8.1x4) (nok)bolt, flange (6x20)
