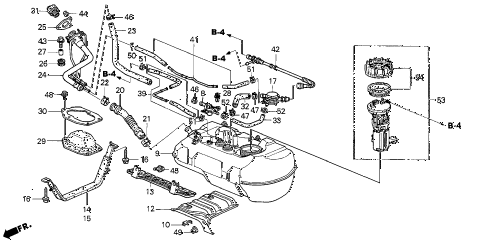

View large diagramHide diagramView diagramView printable catalog
  • 008

    valve, one-way

    • Part Number: 17376-S84-A02

    '


    KA - US - 49 State Spec

    • $15.18

  • 009

    tank, fuel

    • Part Number: 17500-S3Y-505

    '


    KA - US - 49 State Spec

    • $344.40

  • 010

    circlip, protector

    • Part Number: 17513-S3Y-003

    '


    KA - US - 49 State Spec

    • $3.35

  • 012

    protector, fuel tank

    • Part Number: 17519-S3Y-000

    '


    KA - US - 49 State Spec

    • $37.17

  • 013

    reflector, fuel tank

    • Part Number: 17520-S3Y-A00

    '


    KA - US - 49 State Spec

    • $30.50

  • 014

    band, r. fuel tank mounting

    • Part Number: 17521-S3Y-000

    '


    KA - US - 49 State Spec

    • $33.15

  • 015

    band, l. fuel tank mounting

    • Part Number: 17522-S3Y-000

    '


    KA - US - 49 State Spec

    • $33.15

  • 016

    bolt-washer (10x35)

    • Part Number: 17525-SM4-000

    '


    KA - US - 49 State Spec

    • $3.08

  • 017

    valve, vent shut (orvr)

    • Part Number: 17551-S3Y-A02

    '


    KA - US - 49 State Spec

    • $113.28

  • 020

    tube, filler neck

    • Part Number: 17651-S3Y-003

    '


    KA - US - 49 State Spec

    • $45.62

  • 021

    clip, filler tube

    • Part Number: 17652-SDA-A31

    '


    KA - US - 49 State Spec

    • $3.78

  • 022

    clip, filler tube

    • Part Number: 17652-S0E-003

    '


    KA - US - 49 State Spec

    • $6.60

  • 023

    tube, breather

    • Part Number: 17658-S3Y-A00

    '


    KA - US - 49 State Spec

    • $32.15

  • 024

    pipe, fuel filler

    • Part Number: 17660-S3Y-A01

    '


    KA - US - 49 State Spec

    • $114.10

  • 025

    gasket, fuel filler pipe

    • Part Number: 17662-SS1-010

    '


    KA - US - 49 State Spec

    • $5.65

  • 026

    bush, filler pipe mount

    • Part Number: 17664-SH4-010

    '


    KA - US - 49 State Spec

    • $3.47

  • 027

    collar, filler pipe mount

    • Part Number: 17665-SK7-010

    '


    KA - US - 49 State Spec

    • $4.28

  • 028

    rivet, one-way valve

    • Part Number: 17665-S3Y-003

    '


    KA - US - 49 State Spec

    • $4.50

  • 029

    grommet, fuel filler pipe

    • Part Number: 17667-S3Y-A01

    '


    KA - US - 49 State Spec

    • $51.20

  • 030

    holder, fuel filler pipe grommet

    • Part Number: 17668-S3Y-000

    '


    KA - US - 49 State Spec

    • $11.42

  • 031

    cap, fuel filler (toyoda)

    • Part Number: 17670-S5A-A32

    '


    KA - US - 49 State Spec

    • $36.43

  • 032

    tube a

    • Part Number: 17701-S3Y-A00

    '


    KA - US - 49 State Spec

    • $12.45

  • 033

    tube, vent return

    • Part Number: 17702-S3Y-A01

    '


    KA - US - 49 State Spec

    • $16.82

  • 039

    tube, vent

    • Part Number: 17710-S3Y-A02

    '


    KA - US - 49 State Spec

    • $12.93

  • 041

    tube, signal

    • Part Number: 17721-S3Y-A01

    '


    KA - US - 49 State Spec

    • $17.28

  • 042

    tube, fuel vent (orvr)

    • Part Number: 17725-S3Y-A01

    '


    KA - US - 49 State Spec

    • $68.57

  • 043

    bolt, filler pipe mounting

    • Part Number: 90011-SK7-010

    '


    KA - US - 49 State Spec

    • $2.53

  • 044

    nut, flange (5mm)

    • Part Number: 90103-SB0-010

    '


    KA - US - 49 State Spec

    • $2.43

  • 045

    bolt, fr. fender

    • Part Number: 90671-SB2-003

    '


    KA - US - 49 State Spec

    • $5.02

  • 046

    clip, air bleed tube

    • Part Number: 90700-SB0-003

    '


    KA - US - 49 State Spec

    • $5.67

  • 047

    clamp, fuel tube (d20) (chuo hatsujo)

    • Part Number: 91417-SZ3-003

    '


    KA - US - 49 State Spec

    • $4.45

  • 048

    bolt-washer (6x16)

    • Part Number: 93405-06016-05

    '


    KA - US - 49 State Spec

    • $1.02

  • 049

    nut-washer (6mm)

    • Part Number: 94071-06050

    '


    KA - US - 49 State Spec

    • $0.82

  • 050

    clip, tube (b10)

    • Part Number: 95002-02104

    '


    KA - US - 49 State Spec

    • $1.08

  • 051

    clamp, tube (d10)

    • Part Number: 95002-41000-04

    '


    KA - US - 49 State Spec

    • $1.47

  • 052

    clamp, tube (d13)

    • Part Number: 95002-41300-04

    '


    KA - US - 49 State Spec

    • $2.02

  • 053

    module assy., fuel pump

    • Part Number: 17045-S3Y-A30

    '


    KA - US - 49 State Spec

    • $319.12

  • 054

    nut & gasket set, fuel lock (yachiyo)

    • Part Number: 17046-S5A-A00

    '


    KA - US - 49 State Spec

    • $54.27

Back to Top
valve, one-waytank, fuelcirclip, protectorprotector, fuel tankreflector, fuel tankband, r. fuel tank mountingband, l. fuel tank mountingbolt-washer (10x35)bolt-washer (10x35)valve, vent shut (orvr)tube, filler neckclip, filler tubeclip, filler tubetube, breatherpipe, fuel fillergasket, fuel filler pipebush, filler pipe mountcollar, filler pipe mountrivet, one-way valvegrommet, fuel filler pipeholder, fuel filler pipe grommetcap, fuel filler (toyoda)tube atube, vent returntube, venttube, signaltube, fuel vent (orvr)bolt, filler pipe mountingnut, flange (5mm)bolt, fr. fenderclip, air bleed tubeclip, air bleed tubeclamp, fuel tube (d20) (chuo hatsujo)clamp, fuel tube (d20) (chuo hatsujo)bolt-washer (6x16)nut-washer (6mm)clip, tube (b10)clamp, tube (d10)clamp, tube (d10)clamp, tube (d10)clamp, tube (d13)clamp, tube (d13)module assy., fuel pumpnut & gasket set, fuel lock (yachiyo)
