ENGINE WIRE HARNESS
View large diagramHide diagramView diagramView printable catalogTranslate

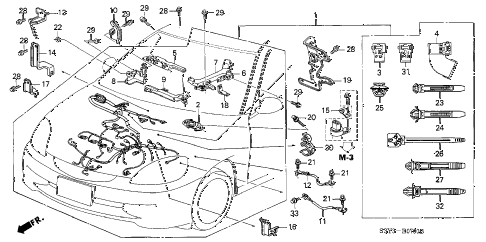

2003 insight DX 3 DOOR CVT ENGINE WIRE HARNESS diagram

  • 001

    wire harness, engine

    Part Number: 32110-PHM-A51

    ''


    KA - US - 49 State Spec

    • $1,099.45

  • 002

    plate, wire harness grommet (black)

    Part Number: 32111-P2A-003

    ''


    KA - US - 49 State Spec

    • $4.47

  • 002

    plate, wire harness grommet (black)

    Part Number: 32111-PHM-003

    ''


    KA - US - 49 State Spec

    • $8.30

  • 003

    holder, corrugated (13mm) (dark green)

    Part Number: 32116-P64-003

    ''


    KA - US - 49 State Spec

    • $4.77

  • 004

    holder, corrugated tube (22mm)(black)

    Part Number: 32119-P8E-A01

    ''


    KA - US - 49 State Spec

    • $6.50

  • 005

    holder, engine harness

    Part Number: 32127-PHM-000

    ''


    KA - US - 49 State Spec

    • $7.80

  • 006

    holder, engine wire harness (lower) (b)

    Part Number: 32128-PHM-000

    ''


    KA - US - 49 State Spec

    • $8.57

  • 007

    holder, engine wire harness (upper)

    Part Number: 32129-PHM-000

    ''


    KA - US - 49 State Spec

    • $8.57

  • 008

    cover, crank sensor

    Part Number: 32130-PHM-000

    ''


    KA - US - 49 State Spec

    • $6.17

  • 009

    holder, engine harness (c)

    Part Number: 32131-PHM-000

    ''


    KA - US - 49 State Spec

    • $7.80

  • 010

    plate, crank sensor cover

    Part Number: 32132-PHM-A00

    ''


    KA - US - 49 State Spec

    • $6.45

  • 011

    cable assy., transmission ground

    Part Number: 32601-S3Y-J10

    ''


    KA - US - 49 State Spec

    • $9.45

  • 012

    cable assy., sub-ground

    Part Number: 32610-S3Y-000

    ''


    KA - US - 49 State Spec

    • $9.68

  • 013

    stay a, engine wire harness

    Part Number: 32740-PHM-A00

    ''


    KA - US - 49 State Spec

    • $7.37

  • 014

    stay b, engine wire harness

    Part Number: 32741-PHM-A00

    ''


    KA - US - 49 State Spec

    • $5.63

  • 015

    stay f, engine wire harness

    Part Number: 32745-PHM-900

    ''


    KA - US - 49 State Spec

    • $5.11

  • 016

    stay h, engine wire harness

    Part Number: 32747-PHM-900

    ''


    KA - US - 49 State Spec

    • $6.06

  • 017

    stay l, engine wire harness

    Part Number: 32750-PHM-000

    ''


    KA - US - 49 State Spec

    • $3.90

  • 018

    stay, joint connector

    Part Number: 32752-PHM-000

    ''


    KA - US - 49 State Spec

    • $3.90

  • 019

    stay n, engine wire harness

    Part Number: 32753-PHM-A00

    ''


    KA - US - 49 State Spec

    • $12.55

  • 020

    bolt, ground (6x24) (sn)

    Part Number: 90149-SE0-902

    ''


    KA - US - 49 State Spec

    • $3.85

  • 021

    bolt, ground (6x12)

    Part Number: 90153-SE0-003

    ''


    KA - US - 49 State Spec

    • $0.43

  • 022

    washer, special (6mm)

    Part Number: 90414-PHM-010

    ''


    KA - US - 49 State Spec

    • $1.97

  • 023

    clip a, harness band (129.4mm)(dark gray)

    Part Number: 91506-P01-003

    ''


    KA - US - 49 State Spec

    • $4.27

  • 024

    clip b, harness band (129.4mm)(dark brown)

    Part Number: 91507-P01-003

    ''


    KA - US - 49 State Spec

    • $4.05

  • 025

    clip, connector (natural)

    Part Number: 91533-S04-003

    ''


    KA - US - 49 State Spec

    • $2.33

  • 026

    clip, band (160mm) (natural)

    Part Number: 91547-SH3-003

    ''


    KA - US - 49 State Spec

    • $1.67

  • 027

    clip, harness band (135mm) (7mm hole) (natural)

    Part Number: 91558-ST5-003

    ''


    KA - US - 49 State Spec

    • $4.27

  • 028

    bolt, flange (6x12)

    Part Number: 95701-06012-08

    ''


    KA - US - 49 State Spec

    • $1.03

  • 029

    bolt, flange (6x16)

    Part Number: 95701-06016-08

    ''


    KA - US - 49 State Spec

    • $0.92

  • 030

    clamp, breather hose

    Part Number: 36020-P36-003

    ''


    KA - US - 49 State Spec

    • $2.50

  • 031

    holder, corrugated (19mm) (dark green)

    Part Number: 32118-P72-003

    ''


    KA - US - 49 State Spec

    • $6.50

  • 032

    band, harness (128mm) (gray)

    Part Number: 91547-SJ6-003

    ''


    KA - US - 49 State Spec

    • $3.00

  • 033

    bolt, hex. (6x12)

    Part Number: 92101-06012-0H

    ''


    KA - US - 49 State Spec

    • $0.78
