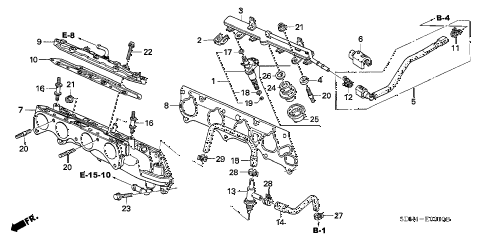

View large diagramHide diagramView diagramView printable catalog
  • 001

    injector assy., air assist fuel

    • Part Number: 16450-RAA-A01

    '


    KA - US - 49 State Spec

    • $61.50

  • 002

    clip, injector

    • Part Number: 16451-PLC-000

    '


    KA - US - 49 State Spec

    • $0.93

  • 003

    pipe, fuel

    • Part Number: 16620-RAA-A01

    '


    KA - US - 49 State Spec

    • $95.27

  • 004

    insulator, fuel pipe

    • Part Number: 16638-PNA-000

    '


    KA - US - 49 State Spec

    • $3.93

  • 005

    hose a, fuel feed

    • Part Number: 16721-RAA-A01

    '


    KA - US - 49 State Spec

    • $22.48

  • 006

    cover b, fuel connector (black)

    • Part Number: 16726-PWA-004

    '


    KA - US - 49 State Spec

    • $2.40

  • 007

    base, injector

    • Part Number: 17050-RAA-A00

    '


    KA - US - 49 State Spec

    • $212.97

  • 008

    gasket, injector base

    • Part Number: 17105-RAA-A01

    '


    KA - US - 49 State Spec

    • $6.72

  • 009

    chamber, egr

    • Part Number: 17145-RAA-A00

    '


    KA - US - 49 State Spec

    • $29.30

  • 010

    gasket, egr chamber

    • Part Number: 17146-RBA-004

    '


    KA - US - 49 State Spec

    • $39.20

  • 011

    retainer (green) (tokai)

    • Part Number: 17711-S0X-A31

    '


    KA - US - 49 State Spec

    • $2.33

  • 012

    retainer (blue green) (tokai)

    • Part Number: 17711-S0X-931

    '


    KA - US - 49 State Spec

    • $2.00

  • 013

    valve, air assist

    • Part Number: 36281-RAA-A01

    '


    KA - US - 49 State Spec

    • $125.58

  • 014

    tube, air assist in.

    • Part Number: 36282-RAA-A00

    '


    KA - US - 49 State Spec

    • $5.70

  • 015

    tube, air assist outlet

    • Part Number: 36283-RAA-A00

    '


    KA - US - 49 State Spec

    • $8.43

  • 016

    bolt a, engine cover

    • Part Number: 90015-RAA-A00

    '


    KA - US - 49 State Spec

    • $3.32

  • 017

    o-ring (7.47x3.6)

    • Part Number: 91301-PLC-000

    '


    KA - US - 49 State Spec

    • $2.03

  • 018

    o-ring (7.45x3.61) (nok)

    • Part Number: 91302-PNA-003

    '


    KA - US - 49 State Spec

    • $1.47

  • 019

    o-ring (6.95x1.7)

    • Part Number: 91302-PCA-000

    '


    KA - US - 49 State Spec

    • $2.52

  • 020

    bolt, stud (8x22)

    • Part Number: 92900-08022-0B

    '


    KA - US - 49 State Spec

    • $1.17

  • 021

    nut, flange (8mm)

    • Part Number: 94050-08080

    '


    KA - US - 49 State Spec

    • $0.25

  • 022

    bolt, flange (6x25)

    • Part Number: 95701-06025-08

    '


    KA - US - 49 State Spec

    • $0.98

  • 023

    bolt, flange (8x28)

    • Part Number: 95701-08028-08

    '


    KA - US - 49 State Spec

    • $1.20

Back to Top
injector assy., air assist fuelclip, injectorpipe, fuelinsulator, fuel pipehose a, fuel feedcover b, fuel connector (black)base, injectorgasket, injector basechamber, egrgasket, egr chamberretainer (green) (tokai)retainer (blue green) (tokai)valve, air assisttube, air assist in.tube, air assist outletbolt a, engine coverbolt a, engine covero-ring (7.47x3.6)o-ring (7.45x3.61) (nok)o-ring (6.95x1.7)bolt, stud (8x22)bolt, stud (8x22)bolt, stud (8x22)nut, flange (8mm)nut, flange (8mm)bolt, flange (6x25)bolt, flange (8x28)
