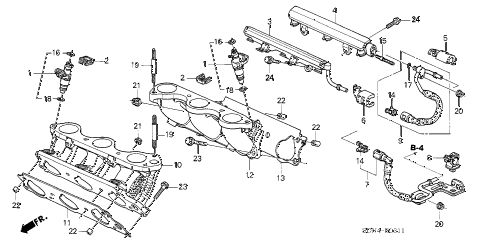

View large diagramHide diagramView diagramView printable catalog
  • 001

    injector assy., fuel

    • Part Number: 16450-RCA-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $61.50

  • 002

    clip, injector

    • Part Number: 16451-RCA-A00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.73

  • 003

    pipe, fr. fuel

    • Part Number: 16610-RCA-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $119.17

  • 004

    pipe, rr. fuel

    • Part Number: 16620-RCA-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $119.17

  • 005

    holder b, fuel joint

    • Part Number: 16634-RCA-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.20

  • 006

    holder c, fuel joint

    • Part Number: 16635-RCA-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.13

  • 007

    joint, fuel stay

    • Part Number: 16726-RCA-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $42.07

  • 008

    clamp, fuel hose (black)

    • Part Number: 16727-PND-004

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.43

  • 009

    hose, fuel joint

    • Part Number: 16728-RCA-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $51.65

  • 010

    base, fr. injector

    • Part Number: 17050-RDV-J00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $113.55

  • 011

    gasket, fr. injector base

    • Part Number: 17055-RCA-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $18.75

  • 012

    base, rr. injector

    • Part Number: 17060-RDV-J00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $113.55

  • 013

    gasket, rr. injector base

    • Part Number: 17065-RCA-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $18.75

  • 014

    retainer (blue green) (tokai)

    • Part Number: 17711-S0X-931

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.00

  • 015

    bolt, stud (6x32)

    • Part Number: 90041-PCA-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.88

  • 016

    o-ring (7.47x3.6)

    • Part Number: 91301-PLC-000

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.03

  • 017

    o-ring (7.3x2.2) (nok)

    • Part Number: 91301-P2F-A01

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.32

  • 018

    o-ring (7.45x3.61) (nok)

    • Part Number: 91302-PNA-003

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.47

  • 019

    bolt, stud (8x60)

    • Part Number: 92900-08060-1B

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.62

  • 020

    nut, flange (6mm)

    • Part Number: 94050-06080

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.23

  • 021

    nut, flange (8mm)

    • Part Number: 94050-08080

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.25

  • 022

    pin, dowel (10x12)

    • Part Number: 94301-10120

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $2.43

  • 023

    bolt, flange (8x28)

    • Part Number: 95701-08028-08

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $1.20

  • 024

    bolt, flange (6x16)

    • Part Number: 96001-06016-00

    '


    KA - US - 49 State Spec
    KL - California Spec

    • $0.67

Back to Top
injector assy., fuelinjector assy., fuelclip, injectorclip, injectorpipe, fr. fuelpipe, rr. fuelholder b, fuel jointholder c, fuel jointjoint, fuel stayclamp, fuel hose (black)hose, fuel jointbase, fr. injectorgasket, fr. injector basebase, rr. injectorgasket, rr. injector baseretainer (blue green) (tokai)retainer (blue green) (tokai)bolt, stud (6x32)o-ring (7.47x3.6)o-ring (7.47x3.6)o-ring (7.3x2.2) (nok)o-ring (7.45x3.61) (nok)o-ring (7.45x3.61) (nok)bolt, stud (8x60)bolt, stud (8x60)nut, flange (6mm)nut, flange (6mm)nut, flange (8mm)nut, flange (8mm)pin, dowel (10x12)pin, dowel (10x12)pin, dowel (10x12)pin, dowel (10x12)bolt, flange (8x28)bolt, flange (8x28)bolt, flange (6x16)bolt, flange (6x16)
