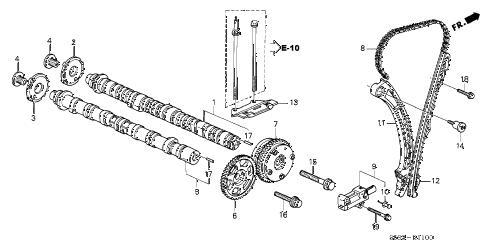

CAMSHAFT - CAM CHAIN - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: camshaft, in. Part Number: 14110-PPA-010 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $453.15

Ref #: 002	Honda Part: plate, cam pulse Part Number: 14113-PNA-003 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $10.88

Ref #: 003	Honda Part: plate, tdc pulse Part Number: 14114-PNA-003 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $10.88

Ref #: 004	Honda Part: bolt, sealing (14mm) Part Number: 14115-PNA-000 Standard Qty.: 002 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $6.92

Ref #: 005	Honda Part: camshaft, ex. Part Number: 14120-PPA-010 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $453.15

Ref #: 006	Honda Part: sprocket, cam chain driven (46t) Part Number: 14210-PNA-000 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $71.15

Ref #: 007	Honda Part: actuator assy., vtc (46t) Part Number: 14310-RBC-003 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $166.37

Ref #: 008	Honda Part: chain (170l) (borg warner) Part Number: 14401-PNA-004 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $109.08

Ref #: 009	Honda Part: tensioner assy., cam chain Part Number: 14510-PNA-003 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $90.45

Ref #: 010	Honda Part: stopper (tool) Part Number: 14511-PNA-003 Standard Qty.: 1 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $2.20

Ref #: 011	Honda Part: arm, cam chain tensioner Part Number: 14520-PNA-003 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $71.15

Ref #: 012	Honda Part: guide, cam chain Part Number: 14530-PNA-003 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $60.98

Ref #: 013	Honda Part: guide b, cam chain Part Number: 14540-PRB-A01 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $17.52

Ref #: 014	Honda Part: bolt, tensioner pivot Part Number: 90003-PNA-000 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $5.58

Ref #: 015	Honda Part: bolt, flange (12x47) Part Number: 90032-PNA-000 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $3.73

Ref #: 016	Honda Part: bolt, flange (10x32) Part Number: 90042-PNA-003 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $2.55

Ref #: 017	Honda Part: pin, dowel (4.2x10.3) Part Number: 90703-PNA-300 Standard Qty.: 002 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $1.43

Ref #: 018	Honda Part: bolt, flange (6x20) Part Number: 95701-06020-08 Standard Qty.: 003 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $0.20

Ref #: 019	Honda Part: bolt, flange (6x30) Part Number: 95701-06030-08 Standard Qty.: 002 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	Retail price: $0.91

Ref #: 001	Honda Part: camshaft, in. Part Number: 14110-PPA-010 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$453.15

Ref #: 002	Honda Part: plate, cam pulse Part Number: 14113-PNA-003 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$10.88

Ref #: 003	Honda Part: plate, tdc pulse Part Number: 14114-PNA-003 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$10.88

Ref #: 004	Honda Part: bolt, sealing (14mm) Part Number: 14115-PNA-000 Standard Qty.: 002 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$6.92

Ref #: 005	Honda Part: camshaft, ex. Part Number: 14120-PPA-010 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$453.15

Ref #: 006	Honda Part: sprocket, cam chain driven (46t) Part Number: 14210-PNA-000 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$71.15

Ref #: 007	Honda Part: actuator assy., vtc (46t) Part Number: 14310-RBC-003 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$166.37

Ref #: 008	Honda Part: chain (170l) (borg warner) Part Number: 14401-PNA-004 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$109.08

Ref #: 009	Honda Part: tensioner assy., cam chain Part Number: 14510-PNA-003 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$90.45

Ref #: 010	Honda Part: stopper (tool) Part Number: 14511-PNA-003 Standard Qty.: 1 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$2.20

Ref #: 011	Honda Part: arm, cam chain tensioner Part Number: 14520-PNA-003 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$71.15

Ref #: 012	Honda Part: guide, cam chain Part Number: 14530-PNA-003 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$60.98

Ref #: 013	Honda Part: guide b, cam chain Part Number: 14540-PRB-A01 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$17.52

Ref #: 014	Honda Part: bolt, tensioner pivot Part Number: 90003-PNA-000 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$5.58

Ref #: 015	Honda Part: bolt, flange (12x47) Part Number: 90032-PNA-000 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$3.73

Ref #: 016	Honda Part: bolt, flange (10x32) Part Number: 90042-PNA-003 Standard Qty.: 001 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$2.55

Ref #: 017	Honda Part: pin, dowel (4.2x10.3) Part Number: 90703-PNA-300 Standard Qty.: 002 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$1.43

Ref #: 018	Honda Part: bolt, flange (6x20) Part Number: 95701-06020-08 Standard Qty.: 003 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$0.20

Ref #: 019	Honda Part: bolt, flange (6x30) Part Number: 95701-06030-08 Standard Qty.: 002 Mfg. Origin: 'GBR' Emission Types: KA - US - 49 State Spec	$0.91
