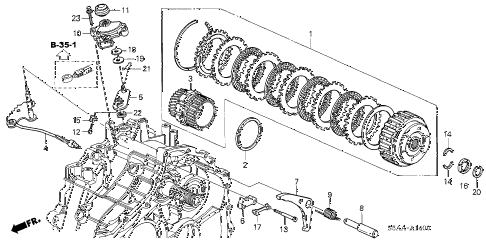

2004 civic GX(ABS SIDE SRS) 4 DOOR CVT CVT STARTING CLUTCH (CVT) diagram
Back to Top
clutch set, startingclutch set,startring, sealgear assy., secondary driveshaft, controllever, controlholder, parking brake rodpawl, parking brakeshaft, parkingspring, parking pawlsensor assy., positionsensor, positionsensor, positioncap, position sensorbolt, hex. (6mm)bolt, hex. (6mm)cotter (25.5) (2.9) (a)cotter (25.5) (2.9) (a)cotter (25.5) (3.0) (b)cotter (25.5) (3.0) (b)cotter (25.5) (3.1) (c)cotter (25.5) (3.1) (c)cotter (25.5) (3.2) (d)cotter (25.5) (3.2) (d)washer, lock (6mm)retainer, cotterwasher, tongued (6mm)washer, tongued (6mm)washer a, control wirewasher b (0.5mm)circlip, outer (29mm)pin, snap (9mm)oil seal (12x22x7) (arai)bolt-washer (6x32)
