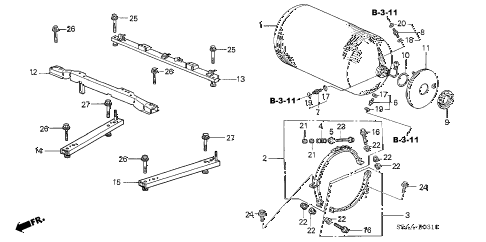

• 001

    tank assy., cng (n/a. use reman p/n 17490-s5w-a02rm)

    • Part Number: 17500-S5W-A03

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 002

    band, fr. cng tank

    • Part Number: 17521-S5W-000

    '


    KA - US - 49 State Spec

    • $126.00

  • 003

    band, rr. cng tank

    • Part Number: 17522-S5W-000

    '


    KA - US - 49 State Spec

    • $96.47

  • 004

    spring, cng tank band

    • Part Number: 17526-S1G-000

    '


    KA - US - 49 State Spec

    • $28.17

  • 005

    retainer, tank band spring

    • Part Number: 17528-S1G-000

    '


    KA - US - 49 State Spec

    • $6.50

  • 006

    connector, seal lock (1/4 inches)

    • Part Number: 17718-S1G-C01

    '


    KA - US - 49 State Spec

    • $64.92

  • 007

    connector, seal lock (1/4 inches)

    • Part Number: 17718-S1G-D01

    '


    KA - US - 49 State Spec

    • $61.52

  • 008

    connector, seal lock (3/8 inches)

    • Part Number: 17718-S1G-E01

    '


    KA - US - 49 State Spec

    • $51.78

  • 009

    nut, duct base

    • Part Number: 17782-S1G-010

    '


    KA - US - 49 State Spec

    • $29.15

  • 010

    gasket, duct base

    • Part Number: 17783-S1G-013

    '


    KA - US - 49 State Spec

    • $16.10

  • 011

    base, tank valve duct

    • Part Number: 17785-S1G-010

    '


    KA - US - 49 State Spec

    • $44.40

  • 012

    frame, fr. tank

    • Part Number: 74550-S5W-000

    '


    KA - US - 49 State Spec

    • $1,072.55

  • 013

    frame, rr. tank

    • Part Number: 74555-S5W-000

    '


    KA - US - 49 State Spec

    • $559.12

  • 014

    frame, r. tank side

    • Part Number: 74560-S5W-000

    '


    KA - US - 49 State Spec

    • $744.83

  • 015

    frame, l. tank side

    • Part Number: 74565-S5W-000

    '


    KA - US - 49 State Spec

    • $744.83

  • 016

    bolt, flange (10x80)

    • Part Number: 90085-S1G-A00

    '


    KA - US - 49 State Spec

    • $3.40

  • 017

    o-ring (1/4 inches)

    • Part Number: 91066-S1G-A01

    '


    KA - US - 49 State Spec

    • $2.58

  • 018

    o-ring (3/8 inches)

    • Part Number: 91066-S1G-B01

    '


    KA - US - 49 State Spec

    • $3.30

  • 019

    o-ring (1/4 inches)

    • Part Number: 91067-S1G-A01

    '


    KA - US - 49 State Spec

    • $2.47

  • 020

    o-ring (3/8 inches)

    • Part Number: 91067-S1G-B01

    '


    KA - US - 49 State Spec

    • $2.47

  • 021

    nut, hex. (10mm)

    • Part Number: 94030-10280

    '


    KA - US - 49 State Spec

    • $0.75

  • 022

    nut, flange (10mm)

    • Part Number: 94050-10080

    '


    KA - US - 49 State Spec

    • $1.05

  • 023

    bolt, flange (10x110)

    • Part Number: 95701-10110-08

    '


    KA - US - 49 State Spec

    • $2.65

  • 024

    bolt, flange (10x25)

    • Part Number: 95701-10025-08

    '


    KA - US - 49 State Spec

    • $1.30

  • 025

    bolt, flange (10x60)

    • Part Number: 95801-10060-08

    '


    KA - US - 49 State Spec

    • $1.50

  • 026

    bolt, flange (10x75)

    • Part Number: 95801-10075-08

    '


    KA - US - 49 State Spec

    • $1.80

  • 027

    bolt, flange (10x100)

    • Part Number: 95801-10100-08

    '


    KA - US - 49 State Spec

    • $2.40
