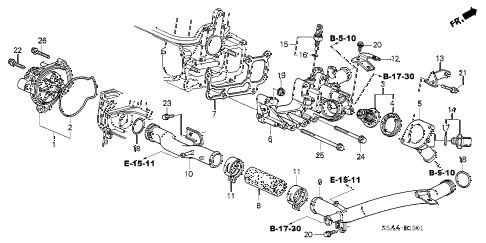

2004 civic GX(ABS SIDE SRS) 4 DOOR CVT WATER PUMP - SENSOR (2) diagram
Back to Top
water pumpo-ring, water pump (yamada)o-ring, water pumpthermostat assy. (fuji thompson)thermostat assy. (nippon thermostat)rubber, thermostat mountingcover, thermostatpassage, watergasket, fr. water passage (ishino gasket)gasket, fr. water passage (nippon leakless)hose, connecting pipepipe b, connectingpipe a, connectingclip, water hose (chuo spring)clip, water hose (chuo spring)stay g, engine harnessstay j, engine wire harnessswitch assy., thermo (a-93) (nippon thermostat)sensor assy., water temperature (matsushita)o-ring (9.5x1.9) (panasonic)o-ring (17.8x1.4)o-ring (27.6x4.1)o-ring (27.6x4.1)nut, flange (8mm)bolt, flange (6x12)bolt, flange (6x12)bolt, flange (6x20)bolt, flange (6x22)bolt, flange (8x12)bolt, flange (8x50)bolt, flange (8x70)bolt, flange (6x30)
