HARNESS BAND - BRACKET
View large diagramHide diagramView diagramView printable catalogTranslate

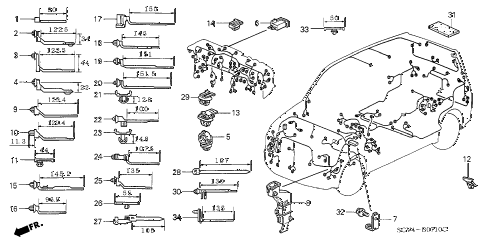

2004 element EX(2WD,SD AIR BAG 5 DOOR 5MT HARNESS BAND - BRACKET diagram

  • 001

    band, cable (90mm)

    Part Number: 32112-S2K-003

    ''


    KA - US - 49 State Spec

    • $2.20

  • 002

    band, wire harness offset (20)(122.5mm) (black)

    Part Number: 32132-SM4-003

    ''


    KA - US - 49 State Spec

    • $3.87

  • 003

    band, harness offset (30) (122.5mm) (yellow)

    Part Number: 32133-SM4-003

    ''


    KA - US - 49 State Spec

    • $1.92

  • 004

    band, harness offset (10) (122.5mm) (brown)

    Part Number: 32134-SM4-003

    ''


    KA - US - 49 State Spec

    • $1.85

  • 006

    connector, diode (2p)

    Part Number: 32146-SH3-003

    ''


    KA - US - 49 State Spec

    • $13.47

  • 007

    bracket, engine room wire harness

    Part Number: 32203-S7A-000

    ''


    KA - US - 49 State Spec

    • $4.76

  • 008

    protector

    Part Number: 32203-S9A-003

    ''


    KA - US - 49 State Spec

    • $10.05

  • 009

    clip a, harness band (129.4mm)(dark gray)

    Part Number: 91506-P01-003

    ''


    KA - US - 49 State Spec

    • $4.27

  • 010

    clip b, harness band (129.4mm)(dark brown)

    Part Number: 91507-P01-003

    ''


    KA - US - 49 State Spec

    • $4.05

  • 011

    clip, wire harness (44mm) (natural)

    Part Number: 91531-S04-003

    ''


    KA - US - 49 State Spec

    • $3.17

  • 012

    clip, wire harness (44mm) (natural)(w/seal)

    Part Number: 91531-S84-003

    ''


    KA - US - 49 State Spec

    • $2.43

  • 013

    clip, connector (natural)

    Part Number: 91533-S04-003

    ''


    KA - US - 49 State Spec

    • $2.33

  • 013

    clip, connector (dark green)

    Part Number: 91565-S0X-003

    ''


    KA - US - 49 State Spec

    • $2.10

  • 014

    clip, connector (black)

    Part Number: 91533-S82-003

    ''


    KA - US - 49 State Spec

    • $3.50

  • 016

    clip, harness band (96.9mm) (natural)

    Part Number: 91540-S0A-003

    ''


    KA - US - 49 State Spec

    • $4.15

  • 017

    clip, harness band (150mm) (natural)

    Part Number: 91540-S6A-003

    ''


    KA - US - 49 State Spec

    • $2.67

  • 018

    clip, harness band (145mm) (black)

    Part Number: 91541-S0A-003

    ''


    KA - US - 49 State Spec

    • $4.15

  • 019

    clip, harness band (151mm) (brown)(w/seal)

    Part Number: 91545-S2A-003

    ''


    KA - US - 49 State Spec

    • $4.77

  • 020

    clip, harness band (151.5mm) (natural)(w/seal)

    Part Number: 91545-S30-003

    ''


    KA - US - 49 State Spec

    • $5.17

  • 021

    clip, protector (12.8mm) (black)

    Part Number: 91556-SCV-003

    ''


    KA - US - 49 State Spec

    • $0.92

  • 022

    clip, band (100mm) (black)

    Part Number: 91556-SM4-003

    ''


    KA - US - 49 State Spec

    • $4.82

  • 023

    clip, protector (14.8mm) (dark gray)

    Part Number: 91557-SCV-003

    ''


    KA - US - 49 State Spec

    • $1.07

  • 024

    strap, harness (30) (107.5mm) (black)

    Part Number: 91558-SJ6-003

    ''


    KA - US - 49 State Spec

    • $2.25

  • 025

    clip, harness band (135mm) (7mm hole) (natural)

    Part Number: 91558-ST5-003

    ''


    KA - US - 49 State Spec

    • $4.27

  • 026

    clip, wire harness (55mm) (white)

    Part Number: 91559-SE3-003

    ''


    KA - US - 49 State Spec

    • $3.00

  • 027

    clip, harness band offset (30)(natural)

    Part Number: 91559-ST5-003

    ''


    KA - US - 49 State Spec

    • $5.07

  • 028

    clip, harness band (167mm) (natural)

    Part Number: 91559-S47-003

    ''


    KA - US - 49 State Spec

    • $5.22

  • 029

    clip, connector (natural)

    Part Number: 91533-S04-003

    ''


    KA - US - 49 State Spec

    • $2.33

  • 029

    clip, connector (dark green)

    Part Number: 91565-S0X-003

    ''


    KA - US - 49 State Spec

    • $2.10

  • 030

    clip, wire harness (130mm) (natural)

    Part Number: 91571-S10-003

    ''


    KA - US - 49 State Spec

    • $4.77

  • 031

    cushion, wire harness (50x100)

    Part Number: 91902-SB2-003

    ''


    KA - US - 49 State Spec

    • $4.78

  • 032

    bolt-washer (6x16)

    Part Number: 93405-06016-08

    ''


    KA - US - 49 State Spec

    • $1.05

  • 033

    clip, wire harness (50mm) (black)(harness taping)

    Part Number: 91507-693-003

    ''


    KA - US - 49 State Spec

    • $4.73

  • 034

    clip, nut (6mm)

    Part Number: 91559-SP0-003

    ''


    KA - US - 49 State Spec

    • $2.55
