CONTROL UNIT (CABIN)
View large diagramHide diagramView diagramView printable catalogTranslate

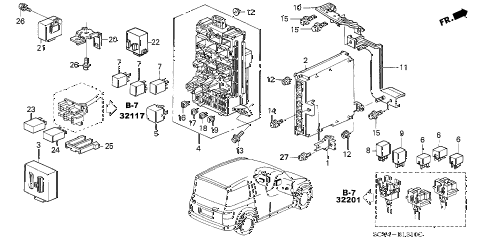

2004 element EX(2WD,SD AIR BAG 5 DOOR 5MT CONTROL UNIT (CABIN) diagram

  • 001

    stay m, engine wire harness

    Part Number: 32752-PLM-A00

    ''


    KA - US - 49 State Spec

    • $7.68

  • 002

    ecu

    Part Number: 37820-PZD-305

    ''


    KA - US - 49 State Spec

    • $918.82

  • 003

    control unit, rr. intermittentwiper

    Part Number: 38140-S0X-A01

    ''


    KA - US - 49 State Spec

    • $130.18

  • 004

    box assy., fuse

    Part Number: 38200-SCV-A21

    ''


    KA - US - 49 State Spec

    • $323.93

  • 005

    relay assy., turn signal and hazard (trico)

    Part Number: 38300-S9V-A01

    ''


    KA - US - 49 State Spec

    • $37.27

  • 006

    relay assy., power (micro iso)(omron)

    Part Number: 39794-SDA-A03

    ''


    KA - US - 49 State Spec

    • $24.42

  • 007

    relay assy., power (4p) (micro iso) (omron)

    Part Number: 39794-S0K-A01

    ''


    KA - US - 49 State Spec

    • $9.45

  • 008

    relay assy., fuel pump (5p) (mitsuba)

    Part Number: 39794-S5A-003

    ''


    KA - US - 49 State Spec

    • $33.23

  • 009

    relay, pcm (4p)

    Part Number: 39794-S5A-901

    ''


    KA - US - 49 State Spec

    • $33.23

  • 010

    bracket, heater

    Part Number: 79101-S5D-A01

    ''


    KA - US - 49 State Spec

    • $10.65

  • 011

    bracket, pcm

    Part Number: 79820-S5D-A01

    ''


    KA - US - 49 State Spec

    • $20.40

  • 012

    nut, flange (6mm)

    Part Number: 94050-06080

    ''


    KA - US - 49 State Spec

    • $0.47

  • 013

    bolt-washer (6x20)

    Part Number: 93403-06020-08

    ''


    KA - US - 49 State Spec

    • $1.33

  • 014

    bolt-washer (6x16)

    Part Number: 93404-06016-08

    ''


    KA - US - 49 State Spec

    • $1.17

  • 015

    bolt-washer (6x20)

    Part Number: 93405-06020-08

    ''


    KA - US - 49 State Spec

    • $1.33

  • 016

    fuse, mini (7.5a)

    Part Number: 98200-40750

    ''


    KA - US - 49 State Spec

    • $0.97

  • 017

    fuse, mini (10a)

    Part Number: 98200-41000

    ''


    KA - US - 49 State Spec

    • $0.97

  • 018

    fuse, mini (15a)

    Part Number: 98200-41500

    ''


    KA - US - 49 State Spec

    • $0.97

  • 019

    fuse, mini (20a)

    Part Number: 98200-42000

    ''


    KA - US - 49 State Spec

    • $0.97

  • 020

    bracket, auto cruise & security

    Part Number: 36701-S5A-A00

    ''


    KA - US - 49 State Spec

    • $5.08

  • 022

    receiver unit, keyless entry

    Part Number: 38385-S9A-A01

    ''


    KA - US - 49 State Spec

    • $216.50

  • 026

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    ''


    KA - US - 49 State Spec

    • $1.33

  • 027

    bolt-washer (6x16)

    Part Number: 93404-06016-08

    ''


    KA - US - 49 State Spec

    • $1.17
