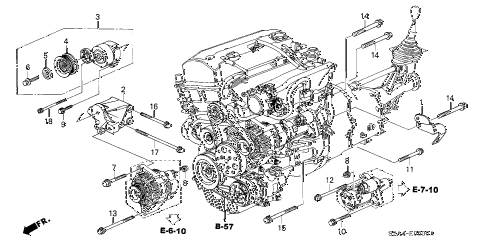

AUTO TENSIONER BRACKET - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: clamp, harness Part Number: 21235-PCY-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $6.57

Ref #: 002	Honda Part: bracket, auto tensioner Part Number: 31160-PCX-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $101.45

Ref #: 003	Honda Part: tensioner assy., auto Part Number: 31170-PCX-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $158.50

Ref #: 004	Honda Part: pulley, idler Part Number: 31180-PCX-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $78.82

Ref #: 005	Honda Part: cover, bearing Part Number: 31185-PCX-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $9.23

Ref #: 006	Honda Part: bolt, special (10x30) Part Number: 90002-P8A-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.45

Ref #: 007	Honda Part: bolt, special flange (10x45) Part Number: 90032-PCX-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.82

Ref #: 008	Honda Part: nut-washer (8mm) Part Number: 94070-08080 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.43

Ref #: 009	Honda Part: bolt, flange (8x28) Part Number: 95701-08028-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.20

Ref #: 010	Honda Part: bolt, flange (10x40) Part Number: 95701-10040-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.30

Ref #: 011	Honda Part: bolt, flange (10x60) Part Number: 95701-10060-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.50

Ref #: 012	Honda Part: bolt, flange (10x80) Part Number: 95701-10080-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.80

Ref #: 013	Honda Part: bolt, flange (10x95) Part Number: 95701-10095-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.40

Ref #: 014	Honda Part: bolt, flange (12x65) Part Number: 95701-12065-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.40

Ref #: 015	Honda Part: bolt, flange (12x80) Part Number: 95701-12080-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.40

Ref #: 016	Honda Part: bolt, flange (10x85) Part Number: 95801-10085-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.40

Ref #: 017	Honda Part: bolt, flange (10x140) Part Number: 95801-10140-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.77

Ref #: 018	Honda Part: bolt, socket (8x80) Part Number: 96700-08080-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $1.57

Ref #: 001	Honda Part: clamp, harness Part Number: 21235-PCY-010 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$6.57

Ref #: 002	Honda Part: bracket, auto tensioner Part Number: 31160-PCX-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$101.45

Ref #: 003	Honda Part: tensioner assy., auto Part Number: 31170-PCX-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$158.50

Ref #: 004	Honda Part: pulley, idler Part Number: 31180-PCX-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$78.82

Ref #: 005	Honda Part: cover, bearing Part Number: 31185-PCX-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$9.23

Ref #: 006	Honda Part: bolt, special (10x30) Part Number: 90002-P8A-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.45

Ref #: 007	Honda Part: bolt, special flange (10x45) Part Number: 90032-PCX-000 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.82

Ref #: 008	Honda Part: nut-washer (8mm) Part Number: 94070-08080 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.43

Ref #: 009	Honda Part: bolt, flange (8x28) Part Number: 95701-08028-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.20

Ref #: 010	Honda Part: bolt, flange (10x40) Part Number: 95701-10040-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.30

Ref #: 011	Honda Part: bolt, flange (10x60) Part Number: 95701-10060-08 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.50

Ref #: 012	Honda Part: bolt, flange (10x80) Part Number: 95701-10080-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.80

Ref #: 013	Honda Part: bolt, flange (10x95) Part Number: 95701-10095-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.40

Ref #: 014	Honda Part: bolt, flange (12x65) Part Number: 95701-12065-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.40

Ref #: 015	Honda Part: bolt, flange (12x80) Part Number: 95701-12080-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.40

Ref #: 016	Honda Part: bolt, flange (10x85) Part Number: 95801-10085-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.40

Ref #: 017	Honda Part: bolt, flange (10x140) Part Number: 95801-10140-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.77

Ref #: 018	Honda Part: bolt, socket (8x80) Part Number: 96700-08080-08 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$1.57
