PEDAL
View large diagramHide diagramView diagramView printable catalogTranslate

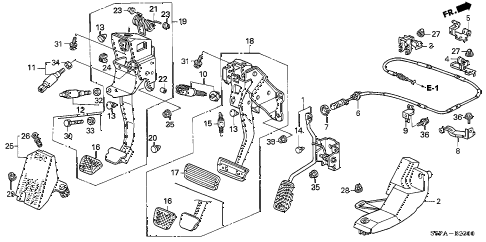

2005 civic DX(VP SIDE SRS) 2 DOOR 5MT PEDAL diagram

  • 001

    pedal assy., accelerator

    Part Number: 17800-S6M-A03

    ''


    KA - US - 49 State Spec

    • $45.27

  • 002

    stopper, accelerator stroke

    Part Number: 17818-S5A-A01

    ''


    KA - US - 49 State Spec

    • $8.58

  • 003

    stay a, actuator wire

    Part Number: 17881-PLM-A00

    ''


    KA - US - 49 State Spec

    • $5.42

  • 005

    stay b, actuator wire

    Part Number: 17882-PLR-A00

    ''


    KA - US - 49 State Spec

    • $149.17

  • 006

    wire, throttle

    Part Number: 17910-S5A-G03

    ''


    KA - US - 49 State Spec

    • $20.93

  • 007

    seal, throttle cable

    Part Number: 17921-SA4-730

    ''


    KA - US - 49 State Spec

    • $6.05

  • 008

    clamp, throttle wire

    Part Number: 17930-S5A-A00

    ''


    KA - US - 49 State Spec

    • $29.23

  • 009

    clamp, throttle wire

    Part Number: 17932-S5A-A00

    ''


    KA - US - 49 State Spec

    • $3.30

  • 010

    switch assy., stop (panasonic)

    Part Number: 35350-SMA-013

    ''


    KA - US - 49 State Spec

    • $5.47

  • 011

    switch assy., clutch (inhibiter)

    Part Number: 35710-SE3-A01

    ''


    KA - US - 49 State Spec

    • $54.92

  • 013

    pad, pedal stopper

    Part Number: 46505-SA5-000

    ''


    KA - US - 49 State Spec

    • $2.63

  • 014

    pad, pedal stopper

    Part Number: 46505-SA7-000

    ''


    KA - US - 49 State Spec

    • $4.95

  • 015

    spring assy., pedal return

    Part Number: 46530-S5A-003

    ''


    KA - US - 49 State Spec

    • $3.82

  • 016

    cover, pedal

    Part Number: 46545-SA5-000

    ''


    KA - US - 49 State Spec

    • $6.38

  • 018

    pedal assy., brake

    Part Number: 46600-S5A-A01

    ''


    KA - US - 49 State Spec

    • $88.18

  • 019

    pedal assy., clutch

    Part Number: 46900-S5A-G01

    ''


    KA - US - 49 State Spec

    • $82.70

  • 020

    stopper, clutch pedal

    Part Number: 46905-SK7-000

    ''


    KA - US - 49 State Spec

    • $7.68

  • 021

    spring, clutch return

    Part Number: 46907-S5A-A01

    ''


    KA - US - 49 State Spec

    • $5.85

  • 022

    bush, pedal pin

    Part Number: 46911-SD4-930

    ''


    KA - US - 49 State Spec

    • $3.48

  • 023

    bush a, clutch assistant

    Part Number: 46981-S2A-003

    ''


    KA - US - 49 State Spec

    • $3.45

  • 024

    bush b, assistant

    Part Number: 46982-S2A-003

    ''


    KA - US - 49 State Spec

    • $3.02

  • 025

    bracket, footrest

    Part Number: 46991-S5A-A01

    ''


    KA - US - 49 State Spec

    • $7.67

  • 026

    clip, footrest

    Part Number: 46992-SV4-003

    ''


    KA - US - 49 State Spec

    • $1.37

  • 027

    nut, hex. cap (6mm)

    Part Number: 90207-RAA-A10

    ''


    KA - US - 49 State Spec

    • $1.40

  • 028

    nut, paint cutting (6mm)

    Part Number: 90301-SP0-003

    ''


    KA - US - 49 State Spec

    • $3.27

  • 028

    nut, paint cutting (6mm)

    Part Number: 90301-SV7-000

    ''


    KA - US - 49 State Spec

    • $3.27

  • 029

    nut, paint cutting (6mm)

    Part Number: 90301-S5A-000

    ''


    KA - US - 49 State Spec

    • $3.27

  • 029

    nut, paint cutting (6mm)

    Part Number: 90301-SV7-000

    ''


    KA - US - 49 State Spec

    • $3.27

  • 030

    bolt, hex. (10x30)

    Part Number: 92201-10030-0H

    ''


    KA - US - 49 State Spec

    • $1.47

  • 031

    bolt-washer (8x16)

    Part Number: 93404-08016-08

    ''


    KA - US - 49 State Spec

    • $1.13

  • 033

    nut, hex. (10mm)

    Part Number: 94002-10000-0S

    ''


    KA - US - 49 State Spec

    • $1.52

  • 034

    nut, hex. (12mm)

    Part Number: 94002-12080-0S

    ''


    KA - US - 49 State Spec

    • $0.83

  • 035

    nut, flange (8mm)

    Part Number: 94050-08080

    ''


    KA - US - 49 State Spec

    • $0.28

  • 036

    bolt, flange (6x12)

    Part Number: 95701-06012-08

    ''


    KA - US - 49 State Spec

    • $1.07
