BRAKE LINES
View large diagramHide diagramView diagramView printable catalogTranslate

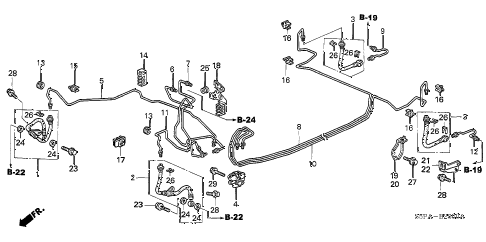

2005 civic LX 2 DOOR 5MT BRAKE LINES diagram

  • 001

    hose set, r. fr. brake

    Part Number: 01464-S5P-A01

    ''


    KA - US - 49 State Spec

    • $28.85

  • 002

    hose set, l. fr. brake

    Part Number: 01465-S5P-A01

    ''


    KA - US - 49 State Spec

    • $28.85

  • 003

    hose set, rr. brake

    Part Number: 01466-S5A-000

    ''


    KA - US - 49 State Spec

    • $29.62

  • 004

    valve assy., proportioning

    Part Number: 46210-S5A-922

    ''


    KA - US - 49 State Spec

    • $143.77

  • 005

    pipe a, brake

    Part Number: 46310-S5A-Q02

    ''


    KA - US - 49 State Spec

    • $139.28

  • 006

    pipe b, brake

    Part Number: 46320-S5A-A02

    ''


    KA - US - 49 State Spec

    • $25.20

  • 007

    pipe h, brake

    Part Number: 46321-S5A-A02

    ''


    KA - US - 49 State Spec

    • $9.00

  • 008

    pipe c, brake

    Part Number: 46330-S5G-T00

    ''


    KA - US - 49 State Spec

    • $34.88

  • 009

    pipe e, r. brake

    Part Number: 46331-S5A-N10

    ''


    KA - US - 49 State Spec

    • $11.93

  • 010

    pipe d, brake

    Part Number: 46340-S5A-Q20

    ''


    KA - US - 49 State Spec

    • $89.42

  • 011

    pipe f, brake

    Part Number: 46360-S5A-Q01

    ''


    KA - US - 49 State Spec

    • $25.48

  • 012

    pipe e, l. brake

    Part Number: 46361-S5A-N10

    ''


    KA - US - 49 State Spec

    • $11.93

  • 013

    grommet a, brake pipe

    Part Number: 46380-SH3-000

    ''


    KA - US - 49 State Spec

    • $3.98

  • 014

    clip a, brake pipe

    Part Number: 46391-SR3-003

    ''


    KA - US - 49 State Spec

    • $6.18

  • 015

    clip, brake pipe

    Part Number: 46391-SX8-T01

    ''


    KA - US - 49 State Spec

    • $1.18

  • 016

    clip, brake pipe

    Part Number: 46391-S5A-J01

    ''


    KA - US - 49 State Spec

    • $2.60

  • 017

    clip, brake pipe

    Part Number: 46392-SX8-T01

    ''


    KA - US - 49 State Spec

    • $2.68

  • 018

    clip, brake pipe

    Part Number: 46393-S5A-N00

    ''


    KA - US - 49 State Spec

    • $7.62

  • 019

    bracket a, r. rr. brake hose

    Part Number: 46435-S5B-900

    ''


    KA - US - 49 State Spec

    • $9.09

  • 020

    bracket a, l. rr. brake hose

    Part Number: 46436-S5B-900

    ''


    KA - US - 49 State Spec

    • $9.09

  • 021

    bracket, r. rr. brake hose

    Part Number: 46437-S5B-000

    ''


    KA - US - 49 State Spec

    • $9.96

  • 022

    bracket, l. rr. brake hose

    Part Number: 46438-S5B-000

    ''


    KA - US - 49 State Spec

    • $9.96

  • 023

    bolt, oil

    Part Number: 46462-SE0-000

    ''


    KA - US - 49 State Spec

    • $5.73

  • 024

    gasket, oil bolt

    Part Number: 46472-568-000

    ''


    KA - US - 49 State Spec

    • $3.27

  • 025

    nut, paint cutting (6mm)

    Part Number: 90361-SV4-003

    ''


    KA - US - 49 State Spec

    • $1.73

  • 026

    clip, brake hose

    Part Number: 90651-SV1-A01

    ''


    KA - US - 49 State Spec

    • $1.43

  • 027

    bolt-washer (8x16)

    Part Number: 93403-08016-08

    ''


    KA - US - 49 State Spec

    • $1.18

  • 028

    bolt, flange (8x16)

    Part Number: 95701-08016-08

    ''


    KA - US - 49 State Spec

    • $1.02

  • 029

    bolt, flange (6x45)

    Part Number: 95801-06045-08

    ''


    KA - US - 49 State Spec

    • $1.25
