REAR SEAT
View large diagramHide diagramView diagramView printable catalogTranslate

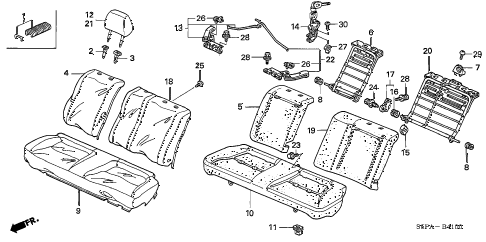

2005 civic LX(SPECIAL EDITIO 2 DOOR 4AT REAR SEAT diagram

  • 001

    c-clip set, trim fastener (30 pieces)

    Part Number: 04810-SB3-000

    ''


    KA - US - 49 State Spec

    • $6.93

  • 002

    guide, headrest *yr239l*

    Part Number: 81143-SM4-J01A6
    (IVORY)

    ''


    KA - US - 49 State Spec

    • $31.73

  • 002

    guide, headrest *nh167l*

    Part Number: 81143-SM4-J01ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $31.73

  • 003

    guide, headrest lock *yr239l*

    Part Number: 81144-S0A-J01YA
    (IVORY)

    ''


    KA - US - 49 State Spec

    • $29.03

  • 003

    guide, headrest lock *nh167l*

    Part Number: 81144-S0A-J01ZF
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $29.03

  • 004

    cover, r. rr. seat-back trim *nh167l*

    Part Number: 82121-S5P-A52ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    cover, r. rr. seat-back trim *yr239l*

    Part Number: 82121-S5P-A52ZB
    (IVORY)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 005

    pad assy., r. rr. seat-back

    Part Number: 82122-S5P-A41

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 006

    frame, r. rr. seat-back

    Part Number: 82126-S5P-A41

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 007

    guide, rr. center seat belt *nh167l*

    Part Number: 82127-S5A-003ZC
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $7.43

  • 007

    guide, rr. center seat belt *yr239l*

    Part Number: 82127-S5A-003ZD
    (IVORY)

    ''


    KA - US - 49 State Spec

    • $7.43

  • 008

    collar, rr. seat pivot

    Part Number: 82129-S5A-000

    ''


    KA - US - 49 State Spec

    • $2.28

  • 009

    cover, rr. seat cushion trim *nh167l*

    Part Number: 82131-S5P-A22ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 009

    cover, rr. seat cushion trim *yr239l*

    Part Number: 82131-S5P-A22ZC
    (IVORY)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 010

    pad & frame, rr. seat cushion

    Part Number: 82132-S5P-A02

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 011

    clip, rr. seat cushion

    Part Number: 82137-S5A-003

    ''


    KA - US - 49 State Spec

    • $1.58

  • 012

    headrest assy., rr. *nh167l*

    Part Number: 82140-S5P-A51ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 012

    headrest assy., rr. *yr239l*

    Part Number: 82140-S5P-A51ZB
    (IVORY)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 013

    lock assy., r. rr. seat

    Part Number: 82220-S5P-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 014

    cylinder, rr. seat lock

    Part Number: 82226-SDN-A01

    ''


    KA - US - 49 State Spec

    • $85.22

  • 015

    cover, rr. center pivot

    Part Number: 82291-S04-000

    ''


    KA - US - 49 State Spec

    • $12.77

  • 016

    collar, rr. center seat pivot

    Part Number: 82292-S04-000

    ''


    KA - US - 49 State Spec

    • $1.35

  • 017

    bracket, center seat pivot

    Part Number: 82295-S04-000

    ''


    KA - US - 49 State Spec

    • $4.65

  • 018

    cover, l. rr. seat-back trim *nh167l*

    Part Number: 82521-S5P-A52ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 018

    cover, l. rr. seat-back trim *yr239l*

    Part Number: 82521-S5P-A52ZB
    (IVORY)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 019

    pad assy., l. rr. seat-back

    Part Number: 82522-S5P-A41

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 020

    frame, l. rr. seat-back

    Part Number: 82526-S5A-A11

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 021

    headrest assy., l. rr. *nh167l*

    Part Number: 82540-S5P-A51ZA
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 021

    headrest assy., l. rr. *yr239l*

    Part Number: 82540-S5P-A51ZB
    (IVORY)

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 022

    lock assy., l. rr. seat

    Part Number: 82620-S5P-A01

    ''


    KA - US - 49 State Spec

    Contact your dealer

  • 023

    bolt-washer (6x25)

    Part Number: 90128-SA7-000

    ''


    KA - US - 49 State Spec

    • $1.15

  • 024

    bolt-washer (6x20)

    Part Number: 90139-SH3-003

    ''


    KA - US - 49 State Spec

    • $5.75

  • 025

    clip, mat (5mm) *nh167l*

    Part Number: 90667-SA7-003YW
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $4.50

  • 026

    snap

    Part Number: 91513-SR3-003

    ''


    KA - US - 49 State Spec

    • $2.20

  • 027

    grommet, screw (4mm)

    Part Number: 91647-S04-003

    ''


    KA - US - 49 State Spec

    • $0.73

  • 028

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    ''


    KA - US - 49 State Spec

    • $1.22

  • 029

    screw, pan (6x18)

    Part Number: 93500-06018-0A

    ''


    KA - US - 49 State Spec

    • $0.75

  • 030

    screw, tapping (4x16)

    Part Number: 93903-44480

    ''


    KA - US - 49 State Spec

    • $0.58
