A/C CONDENSER
View large diagramHide diagramView diagramView printable catalogTranslate

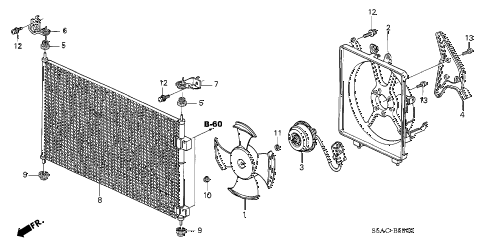

2005 civic EX(SPECIAL EDITIO 4 DOOR 4AT A/C CONDENSER diagram

  • 001

    fan, cooling (mitsuba)

    Part Number: 38611-PMM-A01

    '' ''


    KA - US - 49 State Spec

    • $32.30

  • 002

    shroud, air conditioner (keihin)

    Part Number: 38615-PLM-A12

    '' ''


    KA - US - 49 State Spec

    • $76.40

  • 002

    shroud, air conditioner

    Part Number: 38615-PMM-C12

    '' ''


    KA - US - 49 State Spec

    • $71.10

  • 002

    shroud, air conditioner (keihin)

    Part Number: 38615-PLM-A12

    '' ''


    KA - US - 49 State Spec

    • $76.40

  • 002

    shroud, air conditioner

    Part Number: 38615-PMM-C12

    '' ''


    KA - US - 49 State Spec

    • $71.10

  • 003

    motor, cooling fan (mitsuba)

    Part Number: 38616-PMM-A01

    '' ''


    KA - US - 49 State Spec

    • $218.92

  • 004

    protector, fan motor

    Part Number: 38619-PMM-A00

    '' ''


    KA - US - 49 State Spec

    • $17.08

  • 005

    mount, condenser (upper)

    Part Number: 80107-SS0-000

    '' ''


    KA - US - 49 State Spec

    • $4.92

  • 006

    bracket, r. condenser (upper)

    Part Number: 80107-S5A-000

    '' ''


    KA - US - 49 State Spec

    • $10.82

  • 007

    bracket, l. condenser (upper)

    Part Number: 80108-S5A-000

    '' ''


    KA - US - 49 State Spec

    • $10.82

  • 008

    condenser

    Part Number: 80110-S5A-T01

    '' ''


    KA - US - 49 State Spec

    • $457.83

  • 009

    mount, condenser

    Part Number: 80175-SE0-000

    '' ''


    KA - US - 49 State Spec

    • $4.17

  • 010

    nut, toothed (5mm)

    Part Number: 90041-PAA-A01

    '' ''


    KA - US - 49 State Spec

    • $2.25

  • 011

    washer, plain (8mm)

    Part Number: 90430-PAA-A01

    '' ''


    KA - US - 49 State Spec

    • $2.68

  • 012

    bolt-washer (6x16)

    Part Number: 93403-06016-04

    '' ''


    KA - US - 49 State Spec

    • $1.05

  • 013

    screw-washer (4x12)

    Part Number: 93891-04012-08

    '' ''


    KA - US - 49 State Spec

    • $0.72

Back to Top
fan, cooling (mitsuba)shroud, air conditioner (keihin)shroud, air conditionershroud, air conditioner (keihin)shroud, air conditionermotor, cooling fan (mitsuba)protector, fan motormount, condenser (upper)mount, condenser (upper)bracket, r. condenser (upper)bracket, l. condenser (upper)condensermount, condensermount, condensernut, toothed (5mm)washer, plain (8mm)bolt-washer (6x16)bolt-washer (6x16)bolt-washer (6x16)screw-washer (4x12)screw-washer (4x12)
