FRONT BRAKE
View large diagramHide diagramView diagramView printable catalogTranslate

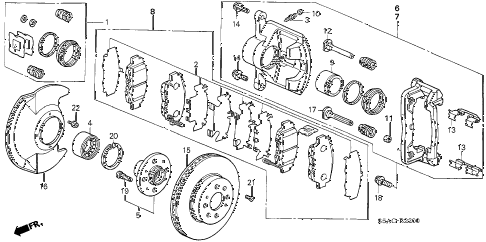

2005 civic LX(SPECIAL EDITIO 4 DOOR 4AT FRONT BRAKE diagram

  • 001

    caliper set, fr.

    Part Number: 01463-S5D-A00

    '' ''


    KA - US - 49 State Spec

    • $24.05

  • 002

    shim set, fr.

    Part Number: 06455-S5D-L00

    '' ''


    KA - US - 49 State Spec

    • $21.26

  • 003

    screw, bleeder

    Part Number: 43352-S3V-A01

    '' ''


    KA - US - 49 State Spec

    • $10.18

  • 004

    bearing, fr. hubr. hub (ntn)

    Part Number: 44300-S5A-008

    '' ''


    KA - US - 49 State Spec

    • $110.17

  • 005

    hub assy., fr. (14")

    Part Number: 44600-S5D-A00

    '' ''


    KA - US - 49 State Spec

    • $200.85

  • 006

    caliper sub-assy., r. fr.

    Part Number: 45018-S5D-A00

    '' ''


    KA - US - 49 State Spec

    • $201.45

  • 006

    caliper sub-assy., r. fr. (rmd)

    Part Number: 45018-S5D-A00RM

    '' ''


    KA - US - 49 State Spec

    • $118.50

  • 006

    caliper sub-assy., r. fr.

    Part Number: 45018-S5D-A00

    '' ''


    KA - US - 49 State Spec

    • $201.45

  • 006

    caliper sub-assy., r. fr. (rmd)

    Part Number: 45018-S5D-A00RM

    '' ''


    KA - US - 49 State Spec

    • $118.50

  • 007

    caliper sub-assy., l. fr.

    Part Number: 45019-S5D-A00

    '' ''


    KA - US - 49 State Spec

    • $201.45

  • 007

    caliper sub-assy., l. fr. (rmd)

    Part Number: 45019-S5D-A00RM

    '' ''


    KA - US - 49 State Spec

    • $118.50

  • 007

    caliper sub-assy., l. fr.

    Part Number: 45019-S5D-A00

    '' ''


    KA - US - 49 State Spec

    • $201.45

  • 007

    caliper sub-assy., l. fr. (rmd)

    Part Number: 45019-S5D-A00RM

    '' ''


    KA - US - 49 State Spec

    • $118.50

  • 008

    set pad, fr.

    Part Number: 45022-S5D-405

    '' ''


    KA - US - 49 State Spec

    • $63.10

  • 009

    piston

    Part Number: 45216-S01-A01

    '' ''


    KA - US - 49 State Spec

    • $34.08

  • 010

    cap, bleeder screw

    Part Number: 45219-671-672

    '' ''


    KA - US - 49 State Spec

    • $0.17

  • 011

    bush

    Part Number: 45233-S01-A01

    '' ''


    KA - US - 49 State Spec

    • $3.65

  • 012

    pin a

    Part Number: 45235-S01-A01

    '' ''


    KA - US - 49 State Spec

    • $14.07

  • 013

    clip, pad

    Part Number: 45237-S04-A02

    '' ''


    KA - US - 49 State Spec

    • $8.63

  • 014

    bolt

    Part Number: 45240-S01-A01

    '' ''


    KA - US - 49 State Spec

    • $1.42

  • 015

    disk, fr. brake

    Part Number: 45251-S5D-A10

    '' ''


    KA - US - 49 State Spec

    • $87.38

  • 016

    splash guard, fr. brake

    Part Number: 45255-S01-A00

    '' ''


    KA - US - 49 State Spec

    • $36.50

  • 017

    pin b

    Part Number: 45262-S01-A01

    '' ''


    KA - US - 49 State Spec

    • $14.07

  • 018

    bolt, caliper mounting (12x21)

    Part Number: 90107-SM4-000

    '' ''


    KA - US - 49 State Spec

    • $0.95

  • 019

    bolt, wheel (saga)

    Part Number: 90113-SA0-006

    '' ''


    KA - US - 49 State Spec

    • $5.83

  • 019

    bolt, wheel (rocknel fastener)

    Part Number: 90113-SM1-005

    '' ''


    KA - US - 49 State Spec

    • $1.90

  • 019

    bolt, wheel (saga)

    Part Number: 90113-SA0-006

    '' ''


    KA - US - 49 State Spec

    • $5.83

  • 019

    bolt, wheel (rocknel fastener)

    Part Number: 90113-SM1-005

    '' ''


    KA - US - 49 State Spec

    • $1.90

  • 020

    circlip, special (inner) (79mm)

    Part Number: 90681-SR3-A00

    '' ''


    KA - US - 49 State Spec

    • $10.90

  • 021

    screw, flat (6x14)

    Part Number: 93600-06014-0H

    '' ''


    KA - US - 49 State Spec

    • $0.62

  • 022

    screw-washer (5x12)

    Part Number: 93892-05012-08

    '' ''


    KA - US - 49 State Spec

    • $0.72
